Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

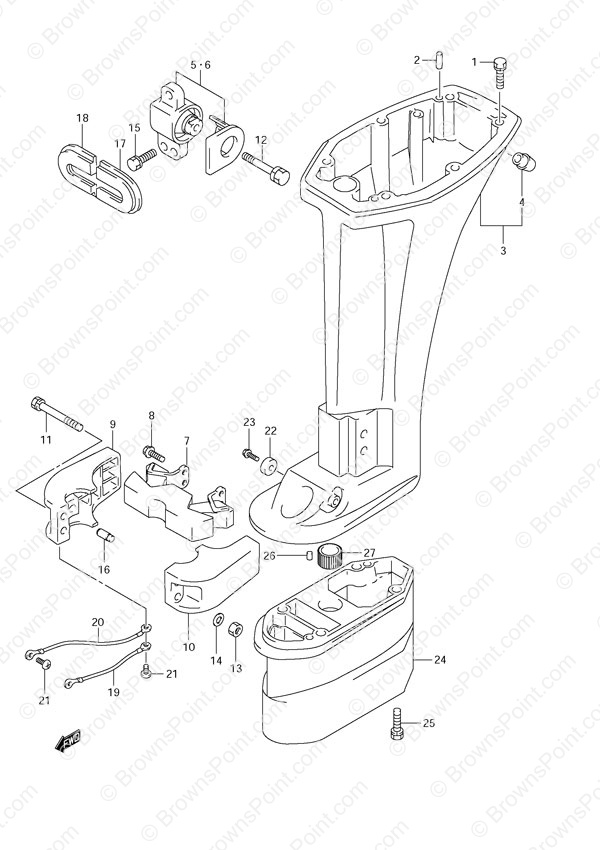

Fig. 56 - Driveshaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 6 | $ 4.66 | ||
| 2 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 3 | 52110-94JC0-0EP Drive Shaft Housing (L)
SKU: 52110-94JC0-0EP Weight: 10.000000 Brand: Price: $ 608.93 |
Drive Shaft Housing (L) | 1 | $ 608.93 | w/Transom (L) | |
| 4 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 5 | 54180-93E01 Upper Stbd Mount
SKU: 54180-93E01 Weight: 1.000000 Brand: Price: $ 68.64 |
Upper Stbd Mount | 1 | $ 68.64 | ||
| 6 | 54190-93E01 Upper Port Mount
SKU: 54190-93E01 Weight: 0.260000 Brand: Price: $ 68.64 |
Upper Port Mount | 1 | $ 68.64 | ||
| 7 | 54160-94JA0 Lower Mount (NLA)
SKU: 54160-94JA0 Weight: 0.100000 Brand: Price: $ 82.98 |
Lower Mount (NLA) | 1 | $ 82.98 | ||
| 8 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 4 | $ 7.44 | ||
| 9 | 54211-94J20-0EP Lower Mount Starboard Cover
SKU: 54211-94J20-0EP Weight: 0.500000 Brand: Price: $ 47.22 |
Lower Mount Starboard Cover | 1 | $ 47.22 | ||
| 10 | 54221-94J20-0EP Lower Mount Port Cover
SKU: 54221-94J20-0EP Weight: 0.250000 Brand: Price: $ 42.49 |
Lower Mount Port Cover | 1 | $ 42.49 | ||
| 11 | 09116-08138 Bolt (8x40)
SKU: 09116-08138 Weight: 0.060000 Brand: Price: $ 5.74 |
Bolt (8x40) | 2 | $ 5.74 | ||
| 12 | 09116-08138 Bolt (8x40)
SKU: 09116-08138 Weight: 0.060000 Brand: Price: $ 5.74 |
Bolt (8x40) | 2 | $ 5.74 | ||
| 13 | 29141-93J10 Nut
SKU: 29141-93J10 Weight: 0.060000 Brand: Price: $ 2.71 |
Nut | 2 | $ 2.71 | ||
| 14 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 15 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 4 | $ 4.66 | ||
| 16 | 54213-93901 Knock Pin
SKU: 54213-93901 Weight: 0.060000 Brand: Price: $ 8.19 |
Knock Pin | 2 | $ 8.19 | ||
| 17 | 54144-93E10 Upper Mount Port Seal
SKU: 54144-93E10 Weight: 0.200000 Brand: Price: $ 10.65 |
Upper Mount Port Seal | 1 | $ 10.65 | ||
| 18 | 54145-93E10 Upper Mount Starboard Seal
SKU: 54145-93E10 Weight: 0.060000 Brand: Price: $ 10.65 |
Upper Mount Starboard Seal | 1 | $ 10.65 | ||
| 19 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | Mount to Housing | |
| 20 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | Swivel to Mount | |
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 | ||
| 22 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 23 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 24 | 52131-94J21-0EP Extension Case
SKU: 52131-94J21-0EP Weight: 5.000000 Brand: Price: $ 204.21 |
Extension Case | 1 | $ 204.21 | w/Transom (X) | |
| 25 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 4 | $ 5.05 | w/Transom (X) | |
| 26 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | w/Transom (X) | |
| 27 | 09320-13022 Bushing
SKU: 09320-13022 Weight: 0.100000 Brand: Price: $ 10.35 |
Bushing | 1 | $ 10.35 | w/Transom (X) |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
