Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

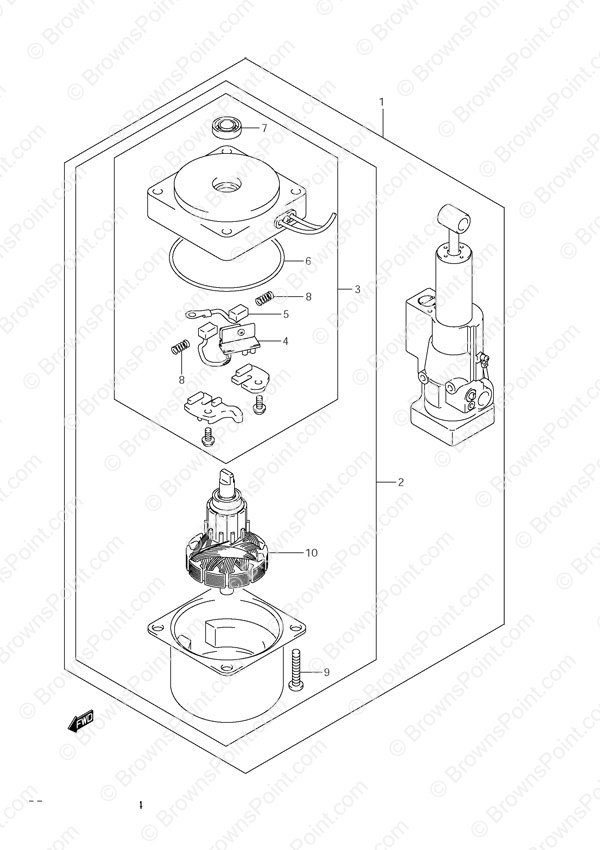

Fig. 54 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-94JB0 Power Tilt Assembly
SKU: 48000-94JB0 Weight: 10.000000 Brand: Price: $ 2,493.73 |
Power Tilt Assembly | 1 | $ 2,493.73 | ||
| 2 | 38100-94J01 PTT Motor Assembly
SKU: 38100-94J01 Weight: 2.000000 Brand: Price: $ 904.76 |
PTT Motor Assembly | 1 | $ 904.76 | ||
| 3 | 31174-94J00 Bracket
SKU: 31174-94J00 Weight: 1.000000 Brand: Price: $ 462.85 |
Bracket | 1 | $ 462.85 | ||
| 4 | 31136-94J00 Breaker
SKU: 31136-94J00 Weight: 0.100000 Brand: Price: $ 103.91 |
Breaker | 1 | $ 103.91 | ||
| 5 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 6 | 31123-94J01 O-Ring
SKU: 31123-94J01 Weight: 0.060000 Brand: Price: $ 13.86 |
O-Ring | 1 | $ 13.86 | ||
| 7 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 8 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 9 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 1.97 |
Screw (5x20) | 2 | $ 1.97 | ||
| 10 | 31311-94J00 Armature (NLA)
SKU: 31311-94J00 Weight: 0.100000 Brand: Price: $ 417.00 |
Armature (NLA) | 1 | $ 417.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
