Suzuki DF 50A Parts Listings - 2023
S/N 05004F-340001 to 05004F-34XXXX

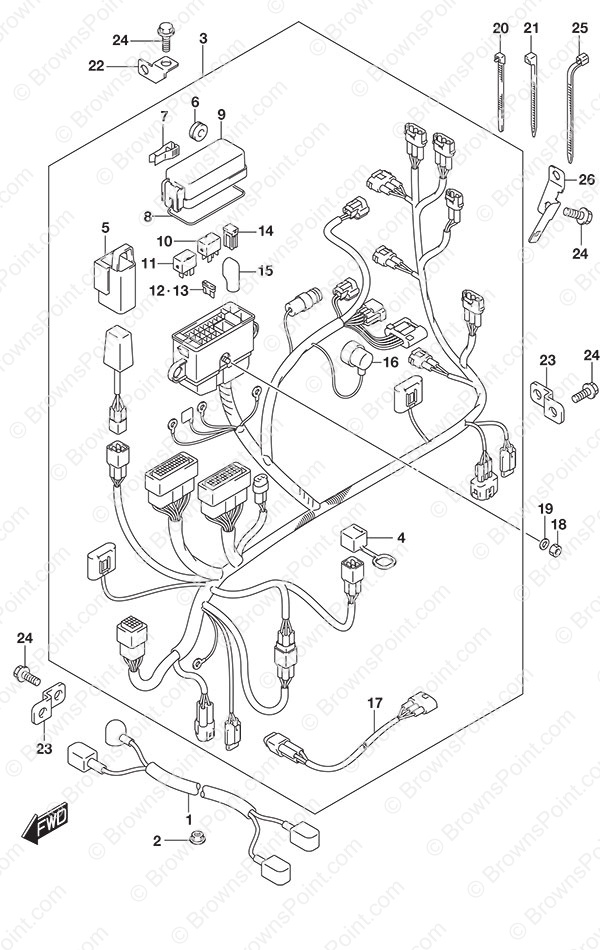

Fig. 322B - Harness High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-88L10 Starter Motor Cable Assembly
SKU: 33810-88L10 Weight: 5.000000 Brand: Price: $ 173.15 |
Starter Motor Cable Assembly | 1 | $ 173.15 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 36630-88L20 HARNESS ASSY,WI
SKU: 36630-88L20 Weight: 0.000000 Brand: Price: $ 462.17 |
HARNESS ASSY,WI | 1 | $ 462.17 | ||
| 4 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 5 | 36668-87L00 Service Connector Cap
SKU: 36668-87L00 Weight: 0.250000 Brand: Price: $ 11.04 |
Service Connector Cap | 1 | $ 11.04 | ||
| 6 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 2 | $ 1.71 | ||
| 7 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.22 |
Fuse Puller | 1 | $ 4.22 | ||
| 8 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 9 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 16.86 |
Fuse Case Upper Cover | 1 | $ 16.86 | ||
| 10 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Engine Control Unit | |
| 11 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Starter Motor | |
| 12 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.08 |
15 Amp Fuse | 3 | $ 2.08 | ||
| 13 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.00 |
30 Amp Fuse | 3 | $ 2.00 | ||
| 14 | 09481-30403 30 Amp Fuse
SKU: 09481-30403 Weight: 0.060000 Brand: Price: $ 4.63 |
30 Amp Fuse | 2 | $ 4.63 | ||
| 15 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 4.94 |
CAP,TERMINAL | 1 | $ 4.94 | ||
| 16 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 17 | 36611-87L01 Sub Wire Harness Assembly
SKU: 36611-87L01 Weight: 0.500000 Brand: Price: $ 18.04 |
Sub Wire Harness Assembly | 1 | $ 18.04 | ||
| 18 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 19 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 20 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 21 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 22 | 36617-88L00 Harness Bracket (NLA)
SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 2 | $ 3.47 | ||
| 23 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 2 | $ 2.00 | ||
| 24 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 5 | $ 1.73 | ||
| 25 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp (L:165) | 1 | $ 2.21 | ||
| 26 | 36617-88L20 Harness Bracket
SKU: 36617-88L20 Weight: 0.060000 Brand: Price: $ 4.18 |
Harness Bracket | 1 | $ 4.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
