Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

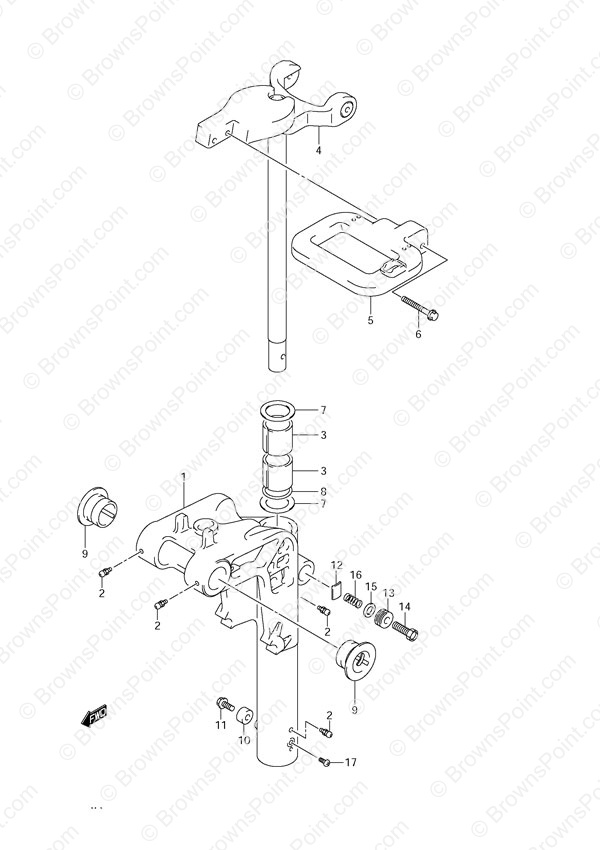

Fig. 49 - Swivel Bracket w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-94JF0-0EP Swivel Bracket (NLA)
SKU: 43111-94JF0-0EP Weight: 0.100000 Brand: Price: $ 654.94 |
Swivel Bracket (NLA) | 1 | $ 654.94 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 3 | 43711-94JA0 Steering Bushing (NLA)
SKU: 43711-94JA0 Weight: 0.125000 Brand: Price: $ 17.37 |
Steering Bushing (NLA) | 2 | $ 17.37 | ||
| 4 | 43750-94JF0-0EP Steering Bracket (NLA)
SKU: 43750-94JF0-0EP Weight: 0.100000 Brand: Price: $ 462.83 |
Steering Bracket (NLA) | 1 | $ 462.83 | ||
| 5 | 43757-94JC0-0EP Steering Bracket #2
SKU: 43757-94JC0-0EP Weight: 0.100000 Brand: Price: $ 128.58 |
Steering Bracket #2 | 1 | $ 128.58 | ||
| 6 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 2 | $ 4.71 | ||
| 7 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 8 | 09280-27004 O-Ring
SKU: 09280-27004 Weight: 0.100000 Brand: Price: $ 1.93 |
O-Ring | 1 | $ 1.93 | ||
| 9 | 43211-94JA0 Swivel Shaft Bushing (NLA)
SKU: 43211-94JA0 Weight: 0.100000 Brand: Price: $ 67.81 |
Swivel Shaft Bushing (NLA) | 2 | $ 67.81 | ||
| 10 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 11 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 12 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 13 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 14 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 15 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 16 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 17 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
