Suzuki DF 40A Parts Listings - 2023
S/N 04003F-340001 to 04003F-34XXXX

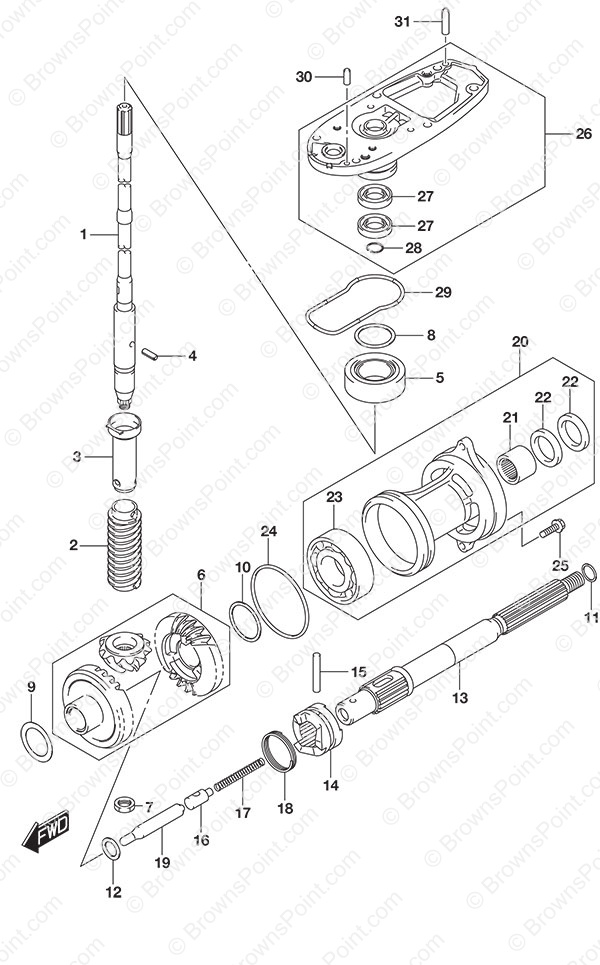

Fig. 220 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-88L12 Drive Shaft Assembly (L)
SKU: 57110-88L12 Weight: 10.000000 Brand: Price: $ 414.14 |
Drive Shaft Assembly (L) | 1 | $ 414.14 | ||
| 2 | 57133-88L01 Drive Shaft Collar
SKU: 57133-88L01 Weight: 0.250000 Brand: Price: $ 16.15 |
Drive Shaft Collar | 1 | $ 16.15 | ||
| 3 | 57133-94400 Drive Shaft Spring Collar
SKU: 57133-94400 Weight: 0.100000 Brand: Price: $ 14.68 |
Drive Shaft Spring Collar | 1 | $ 14.68 | ||
| 4 | 09205-03019 Spring Pin (3x10)
SKU: 09205-03019 Weight: 0.060000 Brand: Price: $ 1.73 |
Spring Pin (3x10) | 1 | $ 1.73 | ||
| 5 | 09265-20015 Bearing (20x42x15)
SKU: 09265-20015 Weight: 0.250000 Brand: Price: $ 58.21 |
Bearing (20x42x15) | 1 | $ 58.21 | ||
| 6 | 57300-88810 Pinion & Gear Set
SKU: 57300-88810 Weight: 2.480000 Brand: Price: $ 446.74 |
Pinion & Gear Set | 1 | $ 446.74 | ||
| 7 | 09140-12034 Pinion Nut
SKU: 09140-12034 Weight: 0.060000 Brand: Price: $ 3.02 |
Pinion Nut | 1 | $ 3.02 | ||
| 8-1 | 09181-35101 Shim (0.50)
SKU: 09181-35101 Weight: 0.060000 Brand: Price: $ 2.17 |
Shim (0.50) | 0 | $ 2.17 | Drive Shaft Adj | |
| 8-2 | 09181-33001 Washer (1.50)
SKU: 09181-33001 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (1.50) | 0 | $ 3.37 | ||
| 8-3 | 09181-33002 Washer (0.60)
SKU: 09181-33002 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (0.60) | 0 | $ 3.13 | ||
| 8-4 | 09181-33003 Washer (0.65)
SKU: 09181-33003 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.65) | 0 | $ 3.37 | ||
| 8-5 | 09181-33004 Washer (0.70) (NLA)
SKU: 09181-33004 Weight: 0.060000 Brand: Price: $ 2.35 |
Washer (0.70) (NLA) | 0 | $ 2.35 | ||
| 8-6 | 09181-33005 Washer (0.75)
SKU: 09181-33005 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.75) | 0 | $ 3.37 | ||
| 8-7 | 09181-33006 Washer (0.80)
SKU: 09181-33006 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.80) | 0 | $ 3.37 | ||
| 8-8 | 09181-33007 Washer (0.85)
SKU: 09181-33007 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.85) | 0 | $ 3.37 | ||
| 8-9 | 09181-33008 Washer (0.90)
SKU: 09181-33008 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.90) | 0 | $ 3.37 | ||
| 8-10 | 09181-33009 Washer (0.95)
SKU: 09181-33009 Weight: 0.125000 Brand: Price: $ 3.37 |
Washer (0.95) | 0 | $ 3.37 | ||
| 8-11 | 09181-35110 Shim (1.00)
SKU: 09181-35110 Weight: 0.060000 Brand: Price: $ 4.96 |
Shim (1.00) | 0 | $ 4.96 | ||
| 9-1 | 09181-30186 Shim (0.50)
SKU: 09181-30186 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.50) | 0 | $ 3.61 | Forward Backup | |
| 9-2 | 09181-30187 Shim (0.60)
SKU: 09181-30187 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.60) | 0 | $ 3.52 | ||
| 9-3 | 09181-30188 Shim (0.70)
SKU: 09181-30188 Weight: 0.060000 Brand: Price: $ 3.58 |
Shim (0.70) | 0 | $ 3.58 | ||
| 9-4 | 09181-30190 Shim (0.80)
SKU: 09181-30190 Weight: 0.060000 Brand: Price: $ 3.61 |
Shim (0.80) | 0 | $ 3.61 | ||
| 9-5 | 09181-30192 Shim (0.90)
SKU: 09181-30192 Weight: 0.060000 Brand: Price: $ 3.52 |
Shim (0.90) | 0 | $ 3.52 | ||
| 10-1 | 08221-35455 Shim (0.50)
SKU: 08221-35455 Weight: 0.060000 Brand: Price: $ 3.31 |
Shim (0.50) | 0 | $ 3.31 | Reverse Backup | |
| 10-2 | 09181-35131 Shim (0.60)
SKU: 09181-35131 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.60) | 0 | $ 3.38 | ||
| 10-3 | 09181-35132 Shim (0.70)
SKU: 09181-35132 Weight: 0.060000 Brand: Price: $ 3.38 |
Shim (0.70) | 0 | $ 3.38 | ||
| 10-4 | 08221-35456 Shim (0.80)
SKU: 08221-35456 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (0.80) | 0 | $ 3.40 | ||
| 10-5 | 09181-35136 Shim (0.90)
SKU: 09181-35136 Weight: 0.060000 Brand: Price: $ 2.49 |
Shim (0.90) | 0 | $ 2.49 | ||
| 10-6 | 08211-35451 Shim (1.00)
SKU: 08211-35451 Weight: 0.100000 Brand: Price: $ 3.40 |
Shim (1.00) | 0 | $ 3.40 | ||
| 11-1 | 09160-22018 Washer (1.80)
SKU: 09160-22018 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.80) | 1 | $ 3.89 | Prop Shaft Thrust | |
| 11-2 | 09160-22019 Washer (1.90)
SKU: 09160-22019 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (1.90) | 1 | $ 3.89 | ||
| 11-3 | 09160-22020 Washer (2.00)
SKU: 09160-22020 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.00) | 1 | $ 4.13 | ||
| 11-4 | 09160-22021 Washer (2.10)
SKU: 09160-22021 Weight: 0.060000 Brand: Price: $ 4.13 |
Washer (2.10) | 1 | $ 4.13 | ||
| 11-5 | 09160-22022 Washer (2.20)
SKU: 09160-22022 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.20) | 1 | $ 3.89 | ||
| 11-6 | 09160-22023 Washer (2.30)
SKU: 09160-22023 Weight: 0.060000 Brand: Price: $ 3.89 |
Washer (2.30) | 1 | $ 3.89 | ||
| 12 | 08211-20263 Thrust Washer (2.00)
SKU: 08211-20263 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer (2.00) | 1 | $ 2.45 | ||
| 13 | 57610-94403 Propeller Shaft Assembly
SKU: 57610-94403 Weight: 1.820000 Brand: Price: $ 176.87 |
Propeller Shaft Assembly | 1 | $ 176.87 | ||
| 14 | 57621-87J03 Clutch Dog Shifter
SKU: 57621-87J03 Weight: 0.500000 Brand: Price: $ 73.80 |
Clutch Dog Shifter | 1 | $ 73.80 | ||
| 15 | 09202-05022 Clutch Dog Shifter Pin
SKU: 09202-05022 Weight: 0.060000 Brand: Price: $ 3.47 |
Clutch Dog Shifter Pin | 1 | $ 3.47 | ||
| 16 | 57634-88L00 Push Pin
SKU: 57634-88L00 Weight: 0.060000 Brand: Price: $ 8.51 |
Push Pin | 1 | $ 8.51 | ||
| 17 | 09440-08043 Return Spring
SKU: 09440-08043 Weight: 0.125000 Brand: Price: $ 2.72 |
Return Spring | 1 | $ 2.72 | ||
| 18 | 09440-40002 Clutch Dog Spring
SKU: 09440-40002 Weight: 0.060000 Brand: Price: $ 3.21 |
Clutch Dog Spring | 1 | $ 3.21 | ||
| 19 | 57631-95303 Push Rod
SKU: 57631-95303 Weight: 0.060000 Brand: Price: $ 13.48 |
Push Rod | 1 | $ 13.48 | ||
| 20-1 | 56120-94321-YAY Propeller Shaft Bearing Housing
SKU: 56120-94321-YAY Weight: 1.800000 Brand: Price: $ 171.27 |
Propeller Shaft Bearing Housing | 1 | $ 171.27 | Black | |
| 20-2 | 56120-94321-QTN HSNG,PROP SHFT
SKU: 56120-94321-QTN Weight: 0.000000 Brand: Price: $ 146.85 |
HSNG,PROP SHFT | 1 | $ 146.85 | White | |
| 21 | 09263-22020 Bearing (22.225x28.575.19.05)
SKU: 09263-22020 Weight: 0.080000 Brand: Price: $ 19.54 |
Bearing (22.225x28.575.19.05) | 1 | $ 19.54 | ||
| 22 | 09289-22007 Oil Seal (21.2x35x5)
SKU: 09289-22007 Weight: 0.060000 Brand: Price: $ 5.22 |
Oil Seal (21.2x35x5) | 2 | $ 5.22 | ||
| 23 | 09262-35070 Bearing (35x62x14)
SKU: 09262-35070 Weight: 0.250000 Brand: Price: $ 47.33 |
Bearing (35x62x14) | 1 | $ 47.33 | ||
| 24 | 09280-75001 O-Ring
SKU: 09280-75001 Weight: 0.060000 Brand: Price: $ 4.85 |
O-Ring | 1 | $ 4.85 | ||
| 25 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 26-1 | 56130-87J12-YAY HOUSING,DRIVE S
SKU: 56130-87J12-YAY Weight: 0.000000 Brand: Price: $ 151.52 |
HOUSING,DRIVE S | 1 | $ 151.52 | Black | |
| 26-2 | 56130-87J12-QTN HOUSING,DRV SFT
SKU: 56130-87J12-QTN Weight: 0.000000 Brand: Price: $ 131.41 |
HOUSING,DRV SFT | 1 | $ 131.41 | White | |
| 27 | 09282-17005 Oil Seal (16x32x6)
SKU: 09282-17005 Weight: 0.060000 Brand: Price: $ 6.28 |
Oil Seal (16x32x6) | 2 | $ 6.28 | ||
| 28 | 08331-41329 Circlip
SKU: 08331-41329 Weight: 0.060000 Brand: Price: $ 2.43 |
Circlip | 1 | $ 2.43 | ||
| 29 | 55122-88L00 Gear Case Seal Ring
SKU: 55122-88L00 Weight: 0.060000 Brand: Price: $ 7.61 |
Gear Case Seal Ring | 1 | $ 7.61 | ||
| 30 | 09202-06025 Pin (6x17)
SKU: 09202-06025 Weight: 0.060000 Brand: Price: $ 1.62 |
Pin (6x17) | 1 | $ 1.62 | ||
| 31 | 09202-06027 Pin (6x23)
SKU: 09202-06027 Weight: 0.060000 Brand: Price: $ 1.62 |
Pin (6x23) | 1 | $ 1.62 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
