Suzuki DF 40A Parts Listings - 2023
S/N 04003F-340001 to 04003F-34XXXX

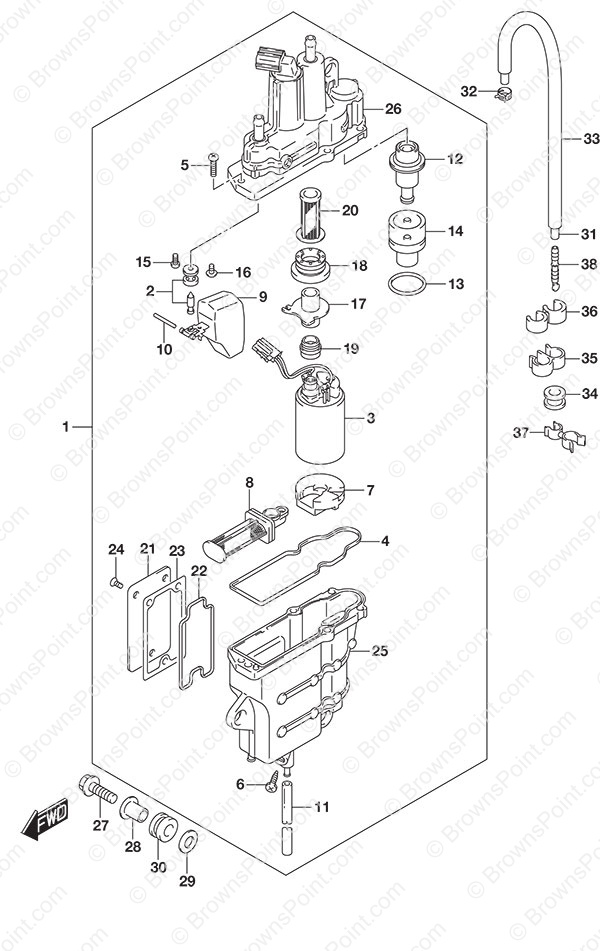

Fig. 143 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-88L14 Fuel Vapor Separator Assembly
SKU: 15600-88L14 Weight: 5.000000 Brand: Price: $ 735.75 |
Fuel Vapor Separator Assembly | 1 | $ 735.75 | ||
| 2 | 13370-88L10 Needle Valve Assembly
SKU: 13370-88L10 Weight: 0.060000 Brand: Price: $ 40.75 |
Needle Valve Assembly | 1 | $ 40.75 | ||
| 3 | 15200-88L00 Fuel Pump Assembly
SKU: 15200-88L00 Weight: 0.500000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 4 | 15641-88L10 SPACER
SKU: 15641-88L10 Weight: 0.000000 Brand: Price: $ 30.44 |
SPACER | 1 | $ 30.44 | ||
| 5 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 5 | $ 2.42 | ||
| 6 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | ||
| 7 | 15641-88L00 Spacer
SKU: 15641-88L00 Weight: 0.250000 Brand: Price: $ 23.89 |
Spacer | 1 | $ 23.89 | ||
| 8 | 15642-88L00 Fuel Filter
SKU: 15642-88L00 Weight: 0.060000 Brand: Price: $ 23.89 |
Fuel Filter | 1 | $ 23.89 | ||
| 9 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 68.42 |
Float | 1 | $ 68.42 | ||
| 10 | 15654-88L00 Pin
SKU: 15654-88L00 Weight: 0.250000 Brand: Price: $ 2.54 |
Pin | 1 | $ 2.54 | ||
| 11 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 12 | 15760-88L00 Fuel Pressure Regulator
SKU: 15760-88L00 Weight: 0.250000 Brand: Price: $ 180.10 |
Fuel Pressure Regulator | 1 | $ 180.10 | ||
| 13 | 15644-88L10 O-RING
SKU: 15644-88L10 Weight: 0.000000 Brand: Price: $ 13.61 |
O-RING | 1 | $ 13.61 | ||
| 14 | 15645-88L00 Regulator Holder
SKU: 15645-88L00 Weight: 0.180000 Brand: Price: $ 5.55 |
Regulator Holder | 1 | $ 5.55 | ||
| 15 | 13614-89J00 Screw (NLA)
SKU: 13614-89J00 Weight: 0.100000 Brand: Price: $ 2.08 |
Screw (NLA) | 1 | $ 2.08 | ||
| 16 | 13614-93J00 SCREW
SKU: 13614-93J00 Weight: 0.000000 Brand: Price: $ 1.80 |
SCREW | 1 | $ 1.80 | ||
| 17 | 15643-88L10 Joint
SKU: 15643-88L10 Weight: 0.060000 Brand: Price: $ 4.33 |
Joint | 1 | $ 4.33 | ||
| 18 | 15641-88L31 Bushing
SKU: 15641-88L31 Weight: 0.060000 Brand: Price: $ 42.80 |
Bushing | 1 | $ 42.80 | ||
| 19 | 15641-88L51 Bushing
SKU: 15641-88L51 Weight: 0.060000 Brand: Price: $ 39.53 |
Bushing | 1 | $ 39.53 | ||
| 20 | 15642-88L10 Fuel Filter
SKU: 15642-88L10 Weight: 0.060000 Brand: Price: $ 17.73 |
Fuel Filter | 1 | $ 17.73 | ||
| 21 | 15612-88L00 Vapor Separator Cover
SKU: 15612-88L00 Weight: 0.250000 Brand: Price: $ 14.42 |
Vapor Separator Cover | 1 | $ 14.42 | ||
| 22 | 15613-88L00 O-Ring
SKU: 15613-88L00 Weight: 0.060000 Brand: Price: $ 4.70 |
O-Ring | 1 | $ 4.70 | ||
| 23 | 15613-92J00 Gasket
SKU: 15613-92J00 Weight: 0.250000 Brand: Price: $ 17.60 |
Gasket | 1 | $ 17.60 | ||
| 24 | 15614-88L00 Screw
SKU: 15614-88L00 Weight: 0.060000 Brand: Price: $ 4.61 |
Screw | 3 | $ 4.61 | ||
| 25 | 15610-88L00 VST Lower Case
SKU: 15610-88L00 Weight: 2.000000 Brand: Price: $ 0.00 |
VST Lower Case | 1 | $ 0.00 | ||
| 26 | 15620-88L10 CASE ASSY,VAPOR
SKU: 15620-88L10 Weight: 0.000000 Brand: Price: $ 183.49 |
CASE ASSY,VAPOR | 1 | $ 183.49 | ||
| 27 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 3 | $ 2.24 | ||
| 28 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 3 | $ 3.19 | ||
| 29 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 3 | $ 1.78 | ||
| 30 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 3 | $ 3.31 | ||
| 31 | 09352-50003-770 Hose (5x8.2x770)
SKU: 09352-50003-770 Weight: 0.250000 Brand: Price: $ 53.74 |
Hose (5x8.2x770) | 1 | $ 53.74 | ||
| 32 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 33 | 18498-88L11 Evap Hose Protector (L:730)
SKU: 18498-88L11 Weight: 0.250000 Brand: Price: $ 0.00 |
Evap Hose Protector (L:730) | 1 | $ 0.00 | ||
| 34 | 09320-08517 CUSHION,CABLE H
SKU: 09320-08517 Weight: 0.000000 Brand: Price: $ 4.47 |
CUSHION,CABLE H | 1 | $ 4.47 | ||
| 35 | 09408-00043 Clamp
SKU: 09408-00043 Weight: 0.250000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 36 | 09408-00121 Clamp (NLA)
SKU: 09408-00121 Weight: 0.200000 Brand: Price: $ 1.85 |
Clamp (NLA) | 1 | $ 1.85 | ||
| 37 | 09408-00145 Clip
SKU: 09408-00145 Weight: 0.250000 Brand: Price: $ 0.00 |
Clip | 1 | $ 0.00 | ||
| 38 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
