Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

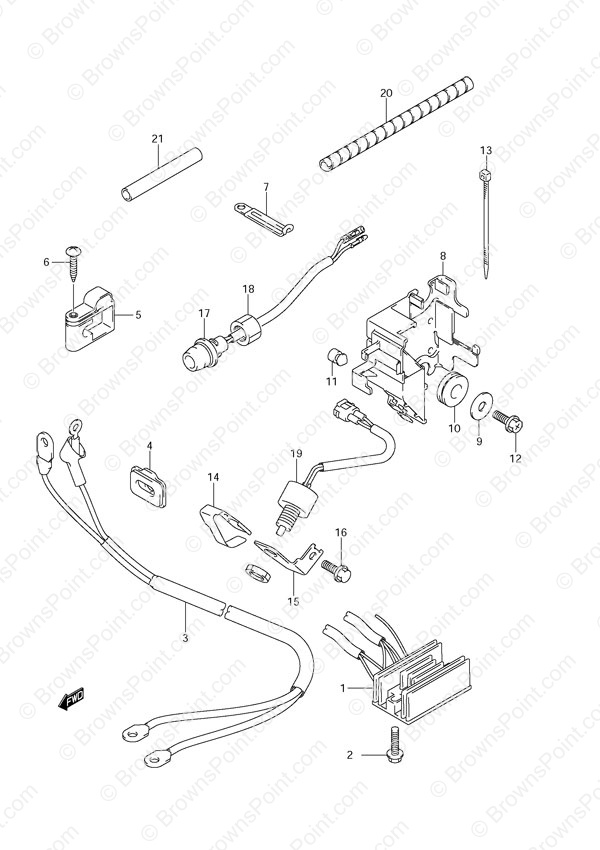

Fig. 39 - Rectifier Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94J11 Rectifier/Regulator Assembly
SKU: 32800-94J11 Weight: 0.320000 Brand: Price: $ 217.82 |
Rectifier/Regulator Assembly | 1 | $ 217.82 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 33810-94JA0 Starter Motor Cable (NLA)
SKU: 33810-94JA0 Weight: 0.100000 Brand: Price: $ 76.34 |
Starter Motor Cable (NLA) | 1 | $ 76.34 | ||
| 4 | 33811-94J10 Starter Cable Grommet (NLA)
SKU: 33811-94J10 Weight: 0.100000 Brand: Price: $ 3.03 |
Starter Cable Grommet (NLA) | 1 | $ 3.03 | ||
| 5 | 33816-94J01 Cable Clamp
SKU: 33816-94J01 Weight: 0.100000 Brand: Price: $ 4.80 |
Cable Clamp | 1 | $ 4.80 | ||
| 6 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 7 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 8 | 32890-94J00 Electric Parts Holder (NLA)
SKU: 32890-94J00 Weight: 1.000000 Brand: Price: $ 6.42 |
Electric Parts Holder (NLA) | 1 | $ 6.42 | ||
| 9 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 2 | $ 1.63 | ||
| 10 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 11 | 09321-06036 Cushion
SKU: 09321-06036 Weight: 0.060000 Brand: Price: $ 1.53 |
Cushion | 1 | $ 1.53 | ||
| 12 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 13 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 14 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | ||
| 15 | 37726-94J00 Switch Bracket (NLA)
SKU: 37726-94J00 Weight: 0.100000 Brand: Price: $ 5.20 |
Switch Bracket (NLA) | 1 | $ 5.20 | ||
| 16 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 37161-94J00 Start Switch Assembly
SKU: 37161-94J00 Weight: 1.000000 Brand: Price: $ 41.14 |
Start Switch Assembly | 1 | $ 41.14 | ||
| 18 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 19 | 37721-94J01 Neutral Switch Assembly
SKU: 37721-94J01 Weight: 0.100000 Brand: Price: $ 48.50 |
Neutral Switch Assembly | 1 | $ 48.50 | ||
| 20 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | ||
| 21 | 33833-94JL0 Switch Lead Tube
SKU: 33833-94JL0 Weight: 0.100000 Brand: Price: $ 4.39 |
Switch Lead Tube | 1 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
