Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

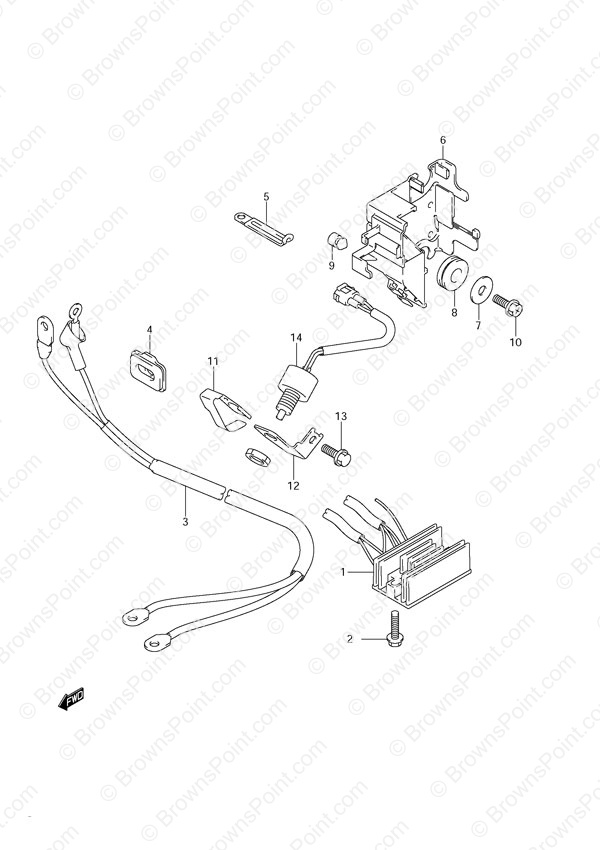

Fig. 38 - Rectifier w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94J01 Rectifier/Regulator Assembly
SKU: 32800-94J01 Weight: 0.100000 Brand: Price: $ 222.23 |
Rectifier/Regulator Assembly | 1 | $ 222.23 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 33810-94JA0 Starter Motor Cable (NLA)
SKU: 33810-94JA0 Weight: 0.100000 Brand: Price: $ 76.34 |
Starter Motor Cable (NLA) | 1 | $ 76.34 | ||
| 4 | 33811-94J10 Starter Cable Grommet (NLA)
SKU: 33811-94J10 Weight: 0.100000 Brand: Price: $ 3.03 |
Starter Cable Grommet (NLA) | 1 | $ 3.03 | ||
| 5 | 29404-93J20 Clamp (L:80)
SKU: 29404-93J20 Weight: 0.060000 Brand: Price: $ 1.92 |
Clamp (L:80) | 1 | $ 1.92 | ||
| 6 | 32890-94J00 Electric Parts Holder (NLA)
SKU: 32890-94J00 Weight: 1.000000 Brand: Price: $ 6.42 |
Electric Parts Holder (NLA) | 1 | $ 6.42 | ||
| 7 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 2 | $ 1.63 | ||
| 8 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 9 | 09321-06013 Cushion
SKU: 09321-06013 Weight: 0.100000 Brand: Price: $ 1.57 |
Cushion | 1 | $ 1.57 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 11 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | ||
| 12 | 37726-94J00 Switch Bracket (NLA)
SKU: 37726-94J00 Weight: 0.100000 Brand: Price: $ 5.20 |
Switch Bracket (NLA) | 1 | $ 5.20 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 14 | 37721-94J01 Neutral Switch Assembly
SKU: 37721-94J01 Weight: 0.100000 Brand: Price: $ 48.50 |
Neutral Switch Assembly | 1 | $ 48.50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
