Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

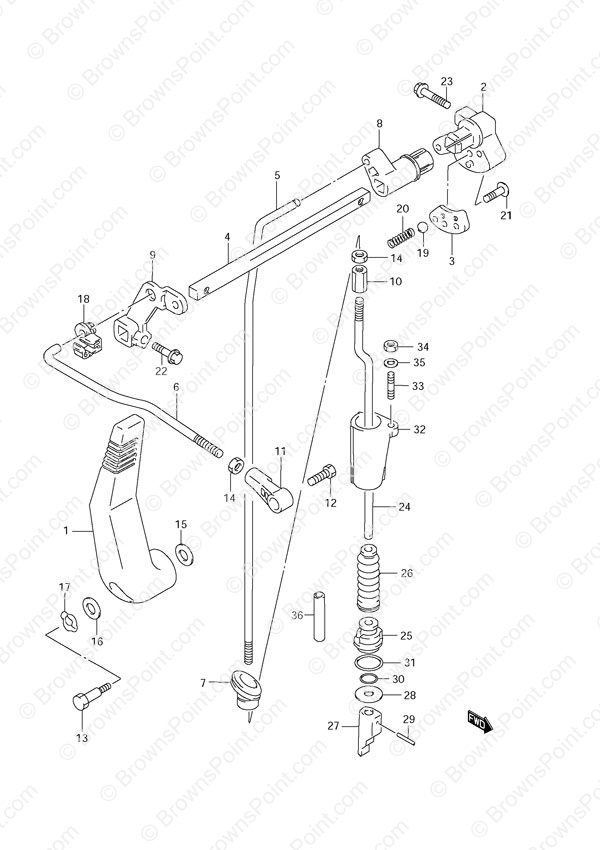

Fig. 26 - Clutch Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-93E03 Clutch Lever
SKU: 21110-93E03 Weight: 0.140000 Brand: Price: $ 17.63 |
Clutch Lever | 1 | $ 17.63 | ||
| 2 | 21120-93E10 Clutch Notch Lever
SKU: 21120-93E10 Weight: 0.080000 Brand: Price: $ 10.34 |
Clutch Notch Lever | 1 | $ 10.34 | ||
| 3 | 21122-94J01 Clutch Notch Plate
SKU: 21122-94J01 Weight: 0.100000 Brand: Price: $ 29.80 |
Clutch Notch Plate | 1 | $ 29.80 | ||
| 4 | 21211-93EL0 Clutch Lever Shaft
SKU: 21211-93EL0 Weight: 0.250000 Brand: Price: $ 23.51 |
Clutch Lever Shaft | 1 | $ 23.51 | ||
| 5 | 23111-94JA0 Clutch Rod
SKU: 23111-94JA0 Weight: 0.100000 Brand: Price: $ 20.04 |
Clutch Rod | 1 | $ 20.04 | ||
| 6 | 23115-93E10 Clutch Lever Link
SKU: 23115-93E10 Weight: 0.250000 Brand: Price: $ 11.89 |
Clutch Lever Link | 1 | $ 11.89 | ||
| 7 | 23131-95L00 Clutch Rod Boot
SKU: 23131-95L00 Weight: 0.060000 Brand: Price: $ 4.55 |
Clutch Rod Boot | 1 | $ 4.55 | ||
| 8 | 23211-93E01 Clutch Rod Arm
SKU: 23211-93E01 Weight: 0.060000 Brand: Price: $ 7.01 |
Clutch Rod Arm | 1 | $ 7.01 | ||
| 9 | 23210-93E00 Clutch Control Lever
SKU: 23210-93E00 Weight: 0.060000 Brand: Price: $ 9.38 |
Clutch Control Lever | 1 | $ 9.38 | ||
| 10 | 23311-95DL0 Clutch Rod Connector
SKU: 23311-95DL0 Weight: 0.060000 Brand: Price: $ 9.12 |
Clutch Rod Connector | 1 | $ 9.12 | ||
| 11 | 23312-94JL0 Clutch Connector
SKU: 23312-94JL0 Weight: 0.060000 Brand: Price: $ 8.83 |
Clutch Connector | 1 | $ 8.83 | ||
| 12 | 09111-06064 Bolt (6x17)
SKU: 09111-06064 Weight: 0.060000 Brand: Price: $ 6.74 |
Bolt (6x17) | 1 | $ 6.74 | ||
| 13 | 09111-06069 Bolt (6x28.8)
SKU: 09111-06069 Weight: 0.060000 Brand: Price: $ 10.55 |
Bolt (6x28.8) | 1 | $ 10.55 | ||
| 14 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 2 | $ 1.80 | ||
| 15 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 16 | 09160-08045 Washer (8x22x1.0)
SKU: 09160-08045 Weight: 0.060000 Brand: Price: $ 2.09 |
Washer (8x22x1.0) | 1 | $ 2.09 | ||
| 17 | 09164-08017 Wave Washer
SKU: 09164-08017 Weight: 0.060000 Brand: Price: $ 2.20 |
Wave Washer | 1 | $ 2.20 | ||
| 18 | 09209-09007 Connector
SKU: 09209-09007 Weight: 0.060000 Brand: Price: $ 3.21 |
Connector | 1 | $ 3.21 | ||
| 19 | 09260-12003 Ball
SKU: 09260-12003 Weight: 0.100000 Brand: Price: $ 3.99 |
Ball | 1 | $ 3.99 | ||
| 20 | 09440-09041 Clutch Notch Spring
SKU: 09440-09041 Weight: 0.100000 Brand: Price: $ 2.72 |
Clutch Notch Spring | 1 | $ 2.72 | ||
| 21 | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 2 | $ 1.38 | ||
| 22 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 23 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 24-1 | 25111-93911 Shift Rod (S)
SKU: 25111-93911 Weight: 0.500000 Brand: Price: $ 27.65 |
Shift Rod (S) | 1 | $ 27.65 | w/Transom (L) | |
| 24-2 | 25111-93901 Shift Rod (L) (NLA)
SKU: 25111-93901 Weight: 0.500000 Brand: Price: $ 23.07 |
Shift Rod (L) (NLA) | 1 | $ 23.07 | w/Transom (X) | |
| 25 | 25211-93901 Shift Rod Guide
SKU: 25211-93901 Weight: 0.060000 Brand: Price: $ 5.83 |
Shift Rod Guide | 1 | $ 5.83 | ||
| 26 | 25222-93902 Shift Rod Boot
SKU: 25222-93902 Weight: 0.060000 Brand: Price: $ 7.90 |
Shift Rod Boot | 1 | $ 7.90 | ||
| 27 | 25311-93E11 Shift Cam
SKU: 25311-93E11 Weight: 0.200000 Brand: Price: $ 26.22 |
Shift Cam | 1 | $ 26.22 | ||
| 28 | 09160-05047 Washer (5.5x24x1.6)
SKU: 09160-05047 Weight: 0.100000 Brand: Price: $ 2.06 |
Washer (5.5x24x1.6) | 1 | $ 2.06 | ||
| 29 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 2 | $ 0.92 | ||
| 30 | 09280-05005 O-Ring
SKU: 09280-05005 Weight: 0.060000 Brand: Price: $ 1.52 |
O-Ring | 1 | $ 1.52 | ||
| 31 | 59291-94J00 O-Ring
SKU: 59291-94J00 Weight: 0.060000 Brand: Price: $ 3.77 |
O-Ring | 1 | $ 3.77 | ||
| 32 | 25215-94J00 Shift Rod Guide Stopper
SKU: 25215-94J00 Weight: 0.060000 Brand: Price: $ 6.74 |
Shift Rod Guide Stopper | 1 | $ 6.74 | ||
| 33 | 09108-05007 Stud Bolt
SKU: 09108-05007 Weight: 0.100000 Brand: Price: $ 2.28 |
Stud Bolt | 1 | $ 2.28 | ||
| 34 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 35 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 36 | 09351-50803-00B Hose (5x8x2000)
SKU: 09351-50803-00B Weight: 0.200000 Brand: Price: $ 9.26 |
Hose (5x8x2000) | 1 | $ 9.26 | L:2000->30 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
