Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

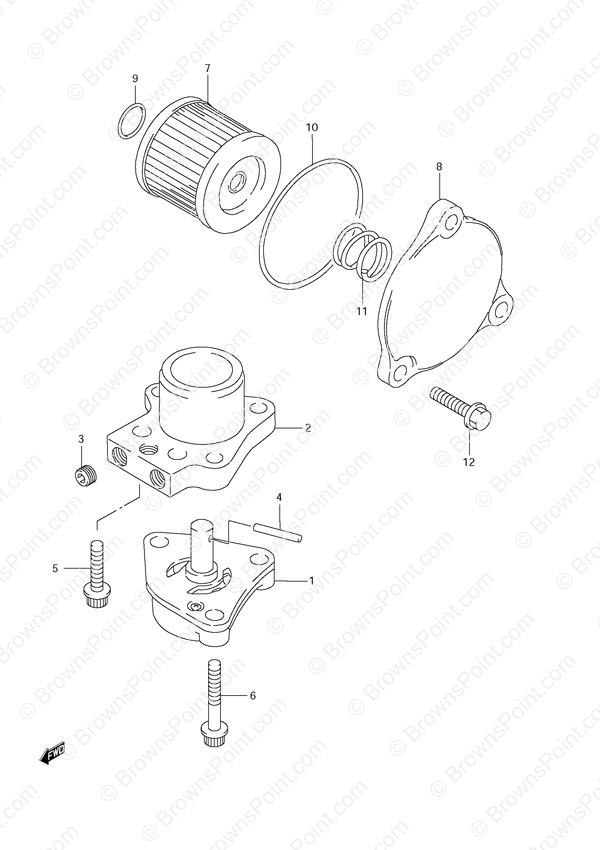

Fig. 23 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16400-93EL0 Oil Pump Assembly
SKU: 16400-93EL0 Weight: 2.000000 Brand: Price: $ 163.68 |
Oil Pump Assembly | 1 | $ 163.68 | ||
| 2 | 16430-93E00 Oil Gallery Block Assembly (NLA)
SKU: 16430-93E00 Weight: 0.100000 Brand: Price: $ 28.80 |
Oil Gallery Block Assembly (NLA) | 1 | $ 28.80 | ||
| 3 | 59246-94J00 Plug (NLA)
SKU: 59246-94J00 Weight: 0.100000 Brand: Price: $ 2.98 |
Plug (NLA) | 2 | $ 2.98 | ||
| 4 | 59262-94J00 Oil Pump Pin
SKU: 59262-94J00 Weight: 0.100000 Brand: Price: $ 1.51 |
Oil Pump Pin | 1 | $ 1.51 | ||
| 55 | 07120-06257 BOLT
SKU: 07120-06257 Weight: 0.100000 Brand: Price: $ 3.11 |
BOLT | 1 | $ 3.11 | ||
| 6 | 07120-06357 Bolt (NLA)
SKU: 07120-06357 Weight: 0.100000 Brand: Price: $ 2.20 |
Bolt (NLA) | 3 | $ 2.20 | ||
| 7 | 16510-45H10 Engine Oil Filter
SKU: 16510-45H10 Weight: 0.180000 Brand: Price: $ 9.88 |
Engine Oil Filter | 1 | $ 9.88 | ||
| 8 | 16512-09G00 Oil Filter Cap
SKU: 16512-09G00 Weight: 0.100000 Brand: Price: $ 24.67 |
Oil Filter Cap | 1 | $ 24.67 | ||
| 9 | 09280-13004 Oil Pump O-Ring
SKU: 09280-13004 Weight: 0.060000 Brand: Price: $ 2.19 |
Oil Pump O-Ring | 1 | $ 2.19 | ||
| 10 | 09280-54001 Oil Filter O-Ring
SKU: 09280-54001 Weight: 0.060000 Brand: Price: $ 3.82 |
Oil Filter O-Ring | 1 | $ 3.82 | ||
| 11 | 09440-18002 Spring
SKU: 09440-18002 Weight: 0.060000 Brand: Price: $ 1.11 |
Spring | 1 | $ 1.11 | ||
| 12 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
