Suzuki DF 150A Parts Listings - 2022
S/N 15003F-240001 to 15003F-24XXXX
S/N 15003Z-240001 to 15003Z-24XXXX

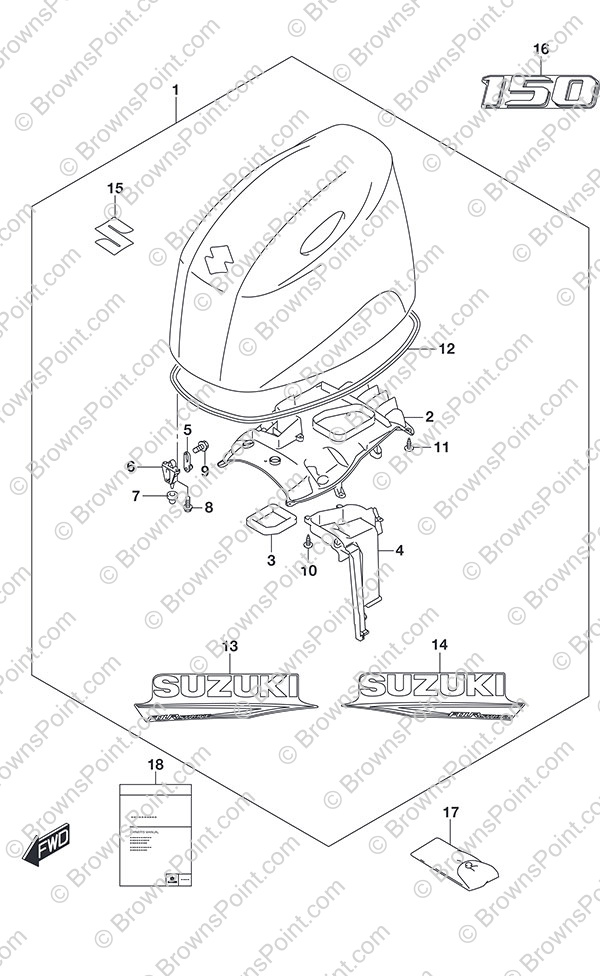

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61404-96812-YAY COVER SET,ENGIN
SKU: 61404-96812-YAY Weight: 0.000000 Brand: Price: $ 1,056.39 |
COVER SET,ENGIN | 1 | $ 1,056.39 | Black | |
| 1-2 | 61404-96822-QTN COVER SET,ENGIN
SKU: 61404-96822-QTN Weight: 0.000000 Brand: Price: $ 1,056.39 |
COVER SET,ENGIN | 1 | $ 1,056.39 | White | |
| 2 | 61433-96L00 Air Intake Inner Cover
SKU: 61433-96L00 Weight: 1.000000 Brand: Price: $ 57.56 |
Air Intake Inner Cover | 1 | $ 57.56 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 5 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13-1 | 61443-96L10 STRIPE,ENG CVR
SKU: 61443-96L10 Weight: 0.000000 Brand: Price: $ 26.48 |
STRIPE,ENG CVR | 1 | $ 26.48 | For Black | |
| 13-2 | 61443-96L20 STRIPE,ENG CVR
SKU: 61443-96L20 Weight: 0.000000 Brand: Price: $ 28.78 |
STRIPE,ENG CVR | 1 | $ 28.78 | For White | |
| 14-1 | 61453-96L10 Port Engine Cover Stripe
SKU: 61453-96L10 Weight: 0.000000 Brand: Price: $ 26.48 |
Port Engine Cover Stripe | 1 | $ 26.48 | For Black | |
| 14-2 | 61453-96L20 STRIPE,ENG CVR
SKU: 61453-96L20 Weight: 0.000000 Brand: Price: $ 28.78 |
STRIPE,ENG CVR | 1 | $ 28.78 | For White | |
| 15 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 16-1 | 61435-96LA0 MARK EMBLEM REA
SKU: 61435-96LA0 Weight: 0.000000 Brand: Price: $ 11.71 |
MARK EMBLEM REA | 1 | $ 11.71 | For Black | |
| 16-2 | 61435-96LB0 Rear Emblem Mark (150)
SKU: 61435-96LB0 Weight: 0.060000 Brand: Price: $ 11.71 |
Rear Emblem Mark (150) | 1 | $ 11.71 | For White | |
| 17 | 09800-81850 Tool Set
SKU: 09800-81850 Weight: 1.060000 Brand: Price: $ 55.30 |
Tool Set | 1 | $ 55.30 | ||
| 18 | 99011-96LC1-03B OWNERS MANUAL D
SKU: 99011-96LC1-03B Weight: 0.000000 Brand: Price: $ 14.83 |
OWNERS MANUAL D | 1 | $ 14.83 | ||
| 19 | 99011-96LC0-03B Owners Manual DF150A/175A/200A - 2020
SKU: 99011-96LC0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150A/175A/200A - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
