Suzuki DF 90A Parts Listings - 2022
S/N 09003F-240001 to 09003F-24XXXX

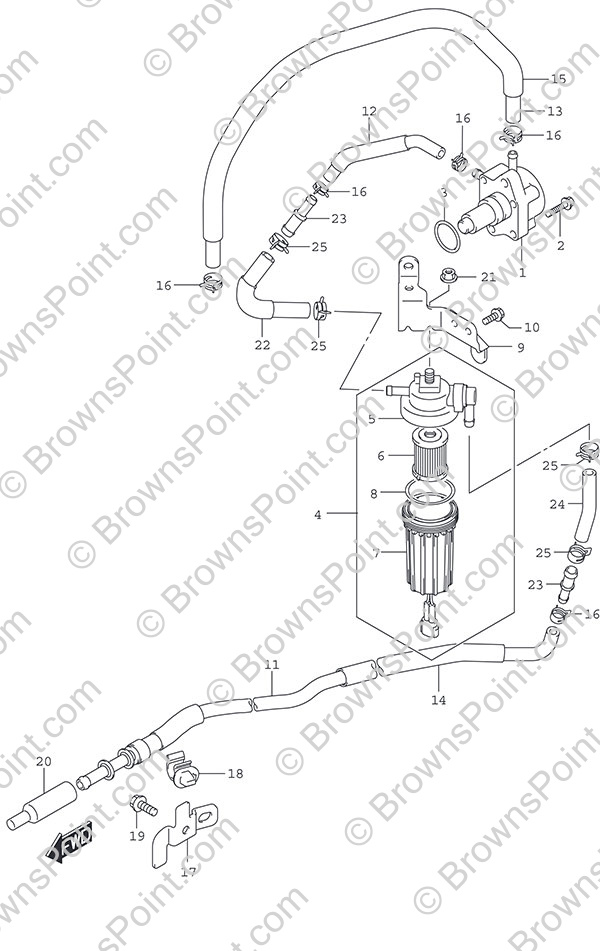

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 171.55 |
Fuel Pump Assembly | 1 | $ 171.55 | ||
| 2 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.53 |
BOLT | 2 | $ 1.53 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.45 |
O-Ring | 1 | $ 2.45 | ||
| 4 | 15410-92J10 Fuel Filter Assembly
SKU: 15410-92J10 Weight: 1.000000 Brand: Price: $ 127.23 |
Fuel Filter Assembly | 1 | $ 127.23 | ||
| 5 | 15411-92J10 Fuel Filter Cap
SKU: 15411-92J10 Weight: 0.250000 Brand: Price: $ 43.93 |
Fuel Filter Cap | 1 | $ 43.93 | ||
| 6 | 15412-92J00 Fuel Filter
SKU: 15412-92J00 Weight: 0.180000 Brand: Price: $ 23.49 |
Fuel Filter | 1 | $ 23.49 | ||
| 7 | 15413-92J00 Fuel Filter Case
SKU: 15413-92J00 Weight: 0.250000 Brand: Price: $ 81.87 |
Fuel Filter Case | 1 | $ 81.87 | ||
| 8 | 15415-92J00 Fuel Filter Seal
SKU: 15415-92J00 Weight: 0.060000 Brand: Price: $ 8.80 |
Fuel Filter Seal | 1 | $ 8.80 | ||
| 9 | 15421-87L10 BRACKET,FUEL FI
SKU: 15421-87L10 Weight: 0.000000 Brand: Price: $ 39.50 |
BRACKET,FUEL FI | 1 | $ 39.50 | ||
| 10 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 2 | $ 1.82 | ||
| 11 | 15190-87L20 HOSE,FUEL INLET
SKU: 15190-87L20 Weight: 0.000000 Brand: Price: $ 84.50 |
HOSE,FUEL INLET | 1 | $ 84.50 | ||
| 12 | 15192-87L30 HOSE,FUEL(FILTE
SKU: 15192-87L30 Weight: 0.000000 Brand: Price: $ 21.42 |
HOSE,FUEL(FILTE | 1 | $ 21.42 | ||
| 13 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 55.85 |
Fuel Hose (7x12x600) | 1 | $ 55.85 | L:600->510 | |
| 14 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.85 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.85 | ||
| 15 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.91 |
Hose Protector (L:610) | 1 | $ 11.91 | L:610->450 | |
| 16 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.16 |
Clip | 5 | $ 2.16 | ||
| 17 | 15198-87L00 Fuel Hose Bracket
SKU: 15198-87L00 Weight: 0.125000 Brand: Price: $ 0.00 |
Fuel Hose Bracket | 1 | $ 0.00 | ||
| 18 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.65 |
Clamp | 1 | $ 2.65 | ||
| 19 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 1 | $ 1.82 | ||
| 20 | 15419-92J00 Joint Cap
SKU: 15419-92J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Joint Cap | 1 | $ 0.00 | ||
| 21 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 22 | 15195-87L00 HOSE FUEL(FILTE
SKU: 15195-87L00 Weight: 0.000000 Brand: Price: $ 28.80 |
HOSE FUEL(FILTE | 1 | $ 28.80 | ||
| 23 | 15831-96L00 Fuel Hose Union
SKU: 15831-96L00 Weight: 0.060000 Brand: Price: $ 5.74 |
Fuel Hose Union | 2 | $ 5.74 | ||
| 24 | 15195-96L00 Fuel Hose
SKU: 15195-96L00 Weight: 0.060000 Brand: Price: $ 8.20 |
Fuel Hose | 1 | $ 8.20 | ||
| 25 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.63 |
Clip | 4 | $ 1.63 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
