Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

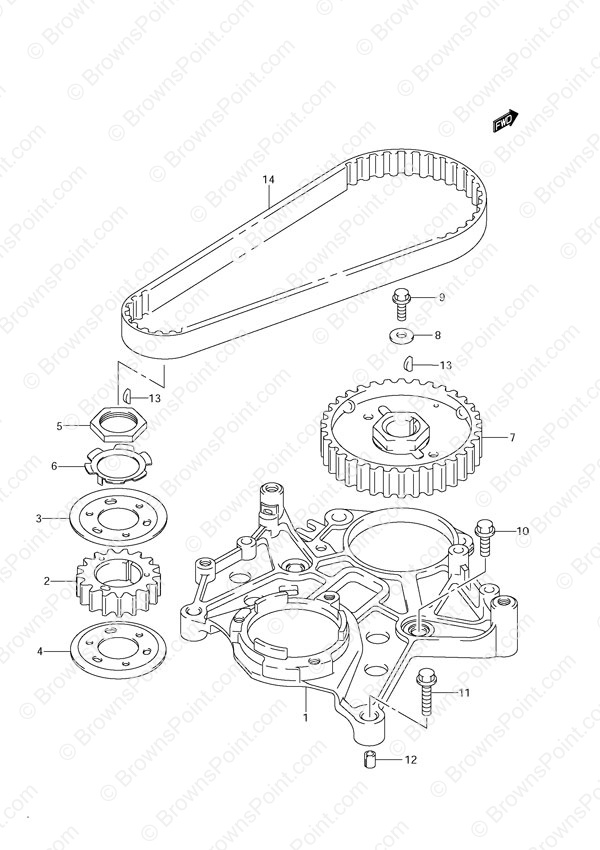

Fig. 4 - Timing Belt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12625-94J01 Stator Base
SKU: 12625-94J01 Weight: 0.100000 Brand: Price: $ 79.99 |
Stator Base | 1 | $ 79.99 | ||
| 2 | 12631-93EL0 Crankshaft Pulley
SKU: 12631-93EL0 Weight: 0.500000 Brand: Price: $ 63.62 |
Crankshaft Pulley | 1 | $ 63.62 | ||
| 3 | 12635-93E00 Upper Timing Belt Guide (NLA)
SKU: 12635-93E00 Weight: 0.250000 Brand: Price: $ 6.28 |
Upper Timing Belt Guide (NLA) | 1 | $ 6.28 | ||
| 4 | 12636-93E00 Lower Timing Belt Guide
SKU: 12636-93E00 Weight: 0.100000 Brand: Price: $ 8.11 |
Lower Timing Belt Guide | 1 | $ 8.11 | ||
| 5 | 12637-93E00 Timing Pulley Nut (NLA)
SKU: 12637-93E00 Weight: 0.100000 Brand: Price: $ 4.64 |
Timing Pulley Nut (NLA) | 1 | $ 4.64 | ||
| 6 | 12638-93E01 Pulley Nut Lock Washer
SKU: 12638-93E01 Weight: 0.125000 Brand: Price: $ 3.77 |
Pulley Nut Lock Washer | 1 | $ 3.77 | ||
| 7 | 12741-99JL0 Camshaft Pulley
SKU: 12741-99JL0 Weight: 0.500000 Brand: Price: $ 73.42 |
Camshaft Pulley | 1 | $ 73.42 | ||
| 8 | 09160-06160 Washer (6.5x24x4)
SKU: 09160-06160 Weight: 0.100000 Brand: Price: $ 5.01 |
Washer (6.5x24x4) | 1 | $ 5.01 | ||
| 9 | 09103-06267 Bolt (6x18)
SKU: 09103-06267 Weight: 0.100000 Brand: Price: $ 2.72 |
Bolt (6x18) | 1 | $ 2.72 | ||
| 10 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 | Front | |
| 11 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | Rear | |
| 12 | 04211-09149 PIN 9X14
SKU: 04211-09149 Weight: 0.100000 Brand: Price: $ 1.66 |
PIN 9X14 | 2 | $ 1.66 | ||
| 13 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 2 | $ 1.91 | ||
| 14 | 12761-93EL0 Timing Belt
SKU: 12761-93EL0 Weight: 0.180000 Brand: Price: $ 49.27 |
Timing Belt | 1 | $ 49.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
