Suzuki DF 15A Parts Listings - 2013
S/N 01504F-310001 to 01504F-31XXXX

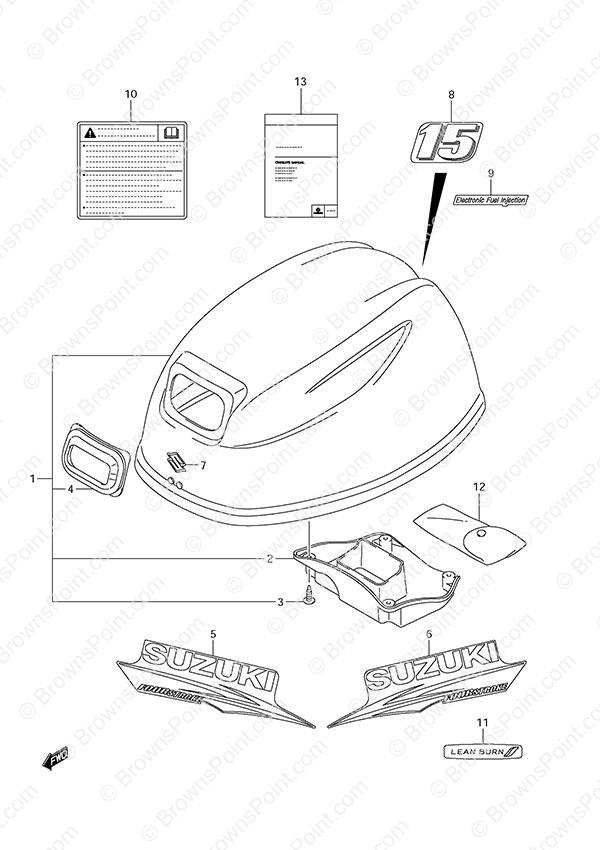

Fig. 30 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-89L40-0EP Engine Cover Assembly
SKU: 61400-89L40-0EP Weight: 6.000000 Brand: Price: $ 224.59 |
Engine Cover Assembly | 1 | $ 224.59 | ||
| 2 | 61433-89L01 Air Intake Inner Cover
SKU: 61433-89L01 Weight: 1.000000 Brand: Price: $ 14.81 |
Air Intake Inner Cover | 1 | $ 14.81 | ||
| 3 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 4 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 25.25 |
Recoil Starter Seal | 1 | $ 25.25 | ||
| 5 | 61443-99J00 Engine Cover Starboard Stripe
SKU: 61443-99J00 Weight: 0.250000 Brand: Price: $ 12.13 |
Engine Cover Starboard Stripe | 1 | $ 12.13 | ||
| 6 | 61453-99J00 Engine Cover Port Stripe
SKU: 61453-99J00 Weight: 0.250000 Brand: Price: $ 12.38 |
Engine Cover Port Stripe | 1 | $ 12.38 | ||
| 7 | 68111-89L00 Emblem (S)
SKU: 68111-89L00 Weight: 0.125000 Brand: Price: $ 36.58 |
Emblem (S) | 1 | $ 36.58 | ||
| 8 | 61435-94J30 Rear Emblem Mark (15)
SKU: 61435-94J30 Weight: 0.125000 Brand: Price: $ 7.66 |
Rear Emblem Mark (15) | 1 | $ 7.66 | ||
| 9 | 61446-89L00 EFI Decal
SKU: 61446-89L00 Weight: 0.060000 Brand: Price: $ 3.05 |
EFI Decal | 1 | $ 3.05 | ||
| 10 | 61458-89L10 Engine Cover Label
SKU: 61458-89L10 Weight: 0.125000 Brand: Price: $ 12.49 |
Engine Cover Label | 1 | $ 12.49 | ||
| 11 | 61471-89L00 Lean Burn Decal
SKU: 61471-89L00 Weight: 0.125000 Brand: Price: $ 9.72 |
Lean Burn Decal | 1 | $ 9.72 | ||
| 12 | 59800-89L00 Tool Set
SKU: 59800-89L00 Weight: 0.500000 Brand: Price: $ 64.88 |
Tool Set | 1 | $ 64.88 | ||
| 13 | 99011-89L00-03B Owners Manual DF15A/20A - 2013
SKU: 99011-89L00-03B Weight: 0.250000 Brand: Price: $ 18.00 |
Owners Manual DF15A/20A - 2013 | 1 | $ 18.00 | S/N 01504F-310001 to 01504F-31XXXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
