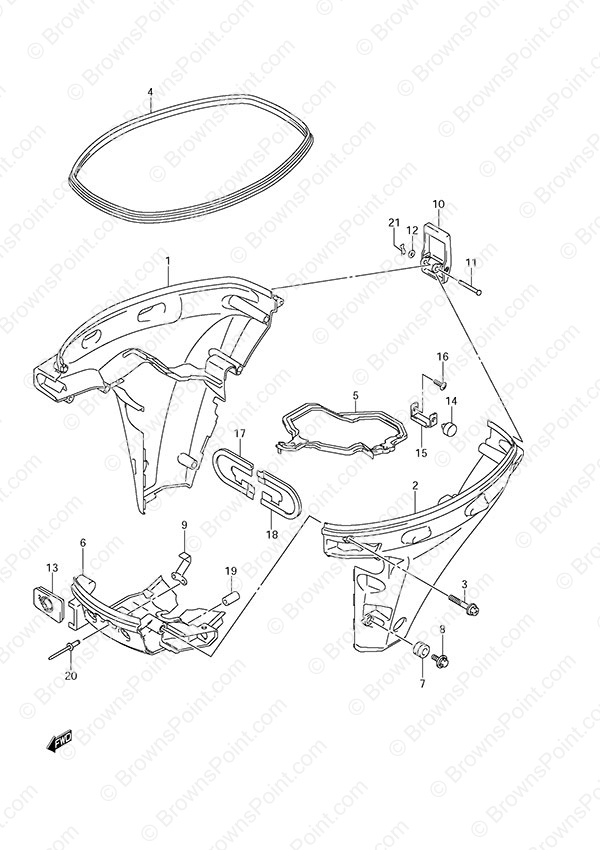

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 61810-89L00-RB4 Starboard Side Cover SKU: 61810-89L00-RB4 Weight: 32.000000 Brand: Price: $ 158.85 |
Starboard Side Cover | 1 | $ 158.85 | ||
2 | 61820-89L00-RB4 Port Side Cover SKU: 61820-89L00-RB4 Weight: 32.000000 Brand: Price: $ 191.20 |
Port Side Cover | 1 | $ 191.20 | ||
3 | 09136-06169 Screw (6x35) SKU: 09136-06169 Weight: 0.060000 Brand: Price: $ 2.96 |
Screw (6x35) | 8 | $ 2.96 | ||
4 | 61112-89L10 Side Cover Rubber SKU: 61112-89L10 Weight: 1.000000 Brand: Price: $ 48.24 |
Side Cover Rubber | 1 | $ 48.24 | ||
5 | 61134-89L00 Side Cover Seal SKU: 61134-89L00 Weight: 1.000000 Brand: Price: $ 44.12 |
Side Cover Seal | 1 | $ 44.12 | ||
6 | 61831-89L00-0EP Front Panel SKU: 61831-89L00-0EP Weight: 0.500000 Brand: Price: $ 168.78 |
Front Panel | 1 | $ 168.78 | ||
7 | 09320-11017 Cushion SKU: 09320-11017 Weight: 0.125000 Brand: Price: $ 4.91 |
Cushion | 2 | $ 4.91 | ||
8 | 09136-06168 Screw (6x17) SKU: 09136-06168 Weight: 0.060000 Brand: Price: $ 2.59 |
Screw (6x17) | 2 | $ 2.59 | ||
9 | 61412-89L00 Front Panel Hook SKU: 61412-89L00 Weight: 0.250000 Brand: Price: $ 7.55 |
Front Panel Hook | 1 | $ 7.55 | ||
10 | 61610-90L00 Fastener SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 40.56 |
Fastener | 1 | $ 40.56 | ||
11 | 61616-93EL0 Lever Pin SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.55 |
Lever Pin | 1 | $ 7.55 | ||
12 | 09161-04012 Washer (4.2x11x1) SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.51 |
Washer (4.2x11x1) | 1 | $ 1.51 | ||
13 | 61124-89L00 Cable Grommet SKU: 61124-89L00 Weight: 0.250000 Brand: Price: $ 26.58 |
Cable Grommet | 1 | $ 26.58 | ||
14 | 61151-91J11 Cushion SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.66 |
Cushion | 1 | $ 3.66 | ||
16 | 02142-06167 6 X 16 CROSS SC SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 1 | $ 1.38 | ||
17 | 54144-89L11 Upper Mount Starboard Seal SKU: 54144-89L11 Weight: 0.250000 Brand: Price: $ 10.62 |
Upper Mount Starboard Seal | 1 | $ 10.62 | ||
18 | 54145-89L00 Upper Mount Port Seal SKU: 54145-89L00 Weight: 0.250000 Brand: Price: $ 11.89 |
Upper Mount Port Seal | 1 | $ 11.89 | ||
19 | 09251-09007 Cushion SKU: 09251-09007 Weight: 0.250000 Brand: Price: $ 4.14 |
Cushion | 2 | $ 4.14 | ||
20 | 09229-04005 Rivet SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.66 |
Rivet | 2 | $ 1.66 | ||
21 | 09385-04003 Snap Pin SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.41 |
Snap Pin | 1 | $ 2.41 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
