Suzuki DF 115B Parts Listings - 2021
S/N 11505F-140001 to 11505F-14XXXX
S/N DF 115BZG 11505F-140001 to 11505Z-14XXXX

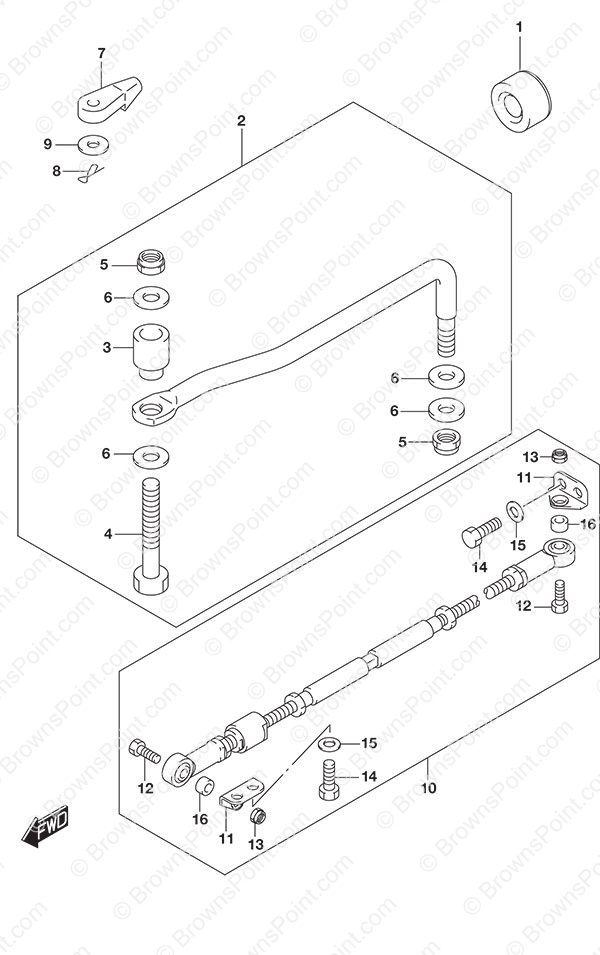

Fig. 442 - Drag Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 12.60 |
Steering Cable Seal | 1 | $ 12.60 | ||
| 2 | 67701-90J01 Drag Link Assembly
SKU: 67701-90J01 Weight: 2.000000 Brand: Price: $ 50.56 |
Drag Link Assembly | 1 | $ 50.56 | ||
| 3 | 67721-99E00 Drag Link Spacer
SKU: 67721-99E00 Weight: 0.125000 Brand: Price: $ 11.89 |
Drag Link Spacer | 1 | $ 11.89 | ||
| 4 | 67725-99E00 Drag Link Bolt
SKU: 67725-99E00 Weight: 0.080000 Brand: Price: $ 7.42 |
Drag Link Bolt | 1 | $ 7.42 | ||
| 5 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | ||
| 6 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.65 |
Washer | 4 | $ 2.65 | ||
| 7 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 8 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 9 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 10 | 67600-90J00 Tie Rod Kit (NLA)
SKU: 67600-90J00 Weight: 0.100000 Brand: Price: $ 1,016.40 |
Tie Rod Kit (NLA) | 1 | $ 1,016.40 | Optional | |
| 11 | 67631-90J00 Tie Rod Bracket
SKU: 67631-90J00 Weight: 0.100000 Brand: Price: $ 175.63 |
Tie Rod Bracket | 2 | $ 175.63 | Optional | |
| 12 | 67725-99E10 Replaced by 67725-99E20
SKU: 67725-99E10 Weight: 0.060000 Brand: Price: $ 7.19 |
Replaced by 67725-99E20 | 2 | $ 7.19 | Optional | |
| 13 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Lock Nut | 2 | $ 8.24 | Optional | |
| 14 | 09100-12081 Bolt (12x25)
SKU: 09100-12081 Weight: 0.100000 Brand: Price: $ 23.78 |
Bolt (12x25) | 4 | $ 23.78 | Optional | |
| 15 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | Optional | |
| 16 | 09180-09022 Tie Rod Spacer (NLA)
SKU: 09180-09022 Weight: 0.100000 Brand: Price: $ 35.42 |
Tie Rod Spacer (NLA) | 2 | $ 35.42 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
