Suzuki DF 115B Parts Listings - 2021
S/N 11505F-140001 to 11505F-14XXXX
S/N DF 115BZG 11505F-140001 to 11505Z-14XXXX

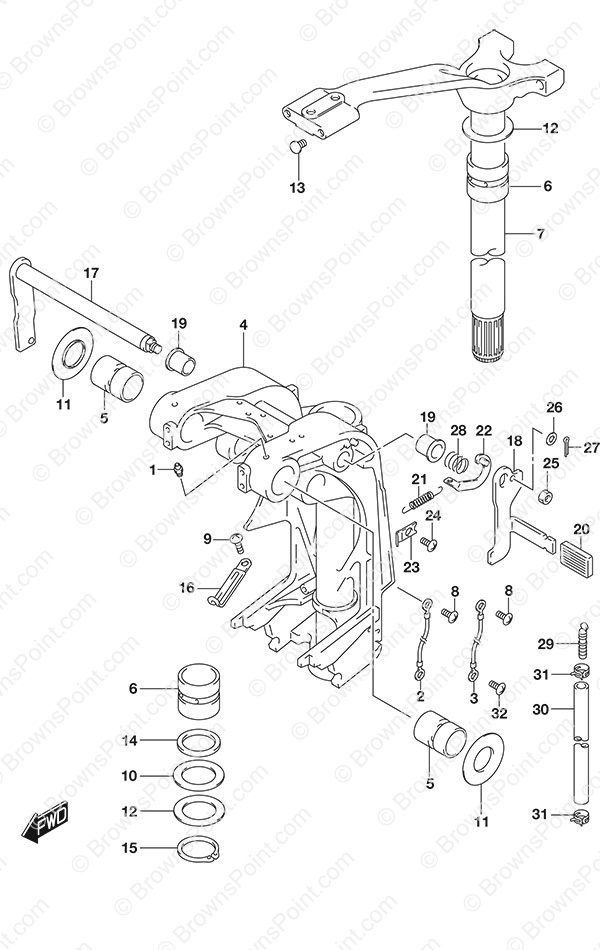

Fig. 336 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 5 | $ 3.36 | w/Transom (L) | |
| 1-2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | w/Transom (X) | |
| 2 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | Clamp to Swivel | |
| 3 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Housing | |
| 4-1 | 43111-90J40-YAY Swivel Bracket (L)
SKU: 43111-90J40-YAY Weight: 10.000000 Brand: Price: $ 644.73 |
Swivel Bracket (L) | 1 | $ 644.73 | Black w/Transom (L) | |
| 4-2 | 43111-90J40-QTN BRACKET,SWIVEL(
SKU: 43111-90J40-QTN Weight: 0.000000 Brand: Price: $ 644.73 |
BRACKET,SWIVEL( | 1 | $ 644.73 | White w/Transom (L) | |
| 4-3 | 43111-90J50-YAY Swivel Bracket (X)
SKU: 43111-90J50-YAY Weight: 10.000000 Brand: Price: $ 752.00 |
Swivel Bracket (X) | 1 | $ 752.00 | Black w/Transom (X) | |
| 4-4 | 43111-90J50-QTN BRACKET,SWIVEL(
SKU: 43111-90J50-QTN Weight: 0.000000 Brand: Price: $ 644.73 |
BRACKET,SWIVEL( | 1 | $ 644.73 | White w/Transom (X) | |
| 5 | 43211-93J11 Clamp Shaft Swivel Bushing
SKU: 43211-93J11 Weight: 0.060000 Brand: Price: $ 7.05 |
Clamp Shaft Swivel Bushing | 2 | $ 7.05 | ||
| 6 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 7-1 | 43750-90J61-YAY Steering Bracket (L)
SKU: 43750-90J61-YAY Weight: 10.000000 Brand: Price: $ 554.29 |
Steering Bracket (L) | 1 | $ 554.29 | Black w/Transom (L) | |
| 7-2 | 43750-90J61-QTN BRACKET,STEERIN
SKU: 43750-90J61-QTN Weight: 0.000000 Brand: Price: $ 564.34 |
BRACKET,STEERIN | 1 | $ 564.34 | White w/Transom (L) | |
| 7-3 | 43750-90J71-YAY Steering Bracket (X)
SKU: 43750-90J71-YAY Weight: 10.000000 Brand: Price: $ 680.01 |
Steering Bracket (X) | 1 | $ 680.01 | Black w/Transom (X) | |
| 7-4 | 43750-90J71-QTN BRACKET COMP,ST
SKU: 43750-90J71-QTN Weight: 0.000000 Brand: Price: $ 519.35 |
BRACKET COMP,ST | 1 | $ 519.35 | White w/Transom (X) | |
| 8 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 10 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 2 | $ 3.56 | ||
| 11 | 09169-28003 Washer (26.2x52x1)
SKU: 09169-28003 Weight: 0.060000 Brand: Price: $ 5.64 |
Washer (26.2x52x1) | 2 | $ 5.64 | ||
| 12 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 4 | $ 3.83 | ||
| 13 | 09250-10001 Plug
SKU: 09250-10001 Weight: 0.125000 Brand: Price: $ 1.86 |
Plug | 2 | $ 1.86 | ||
| 14 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 15 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 16 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 17 | 41220-95E13 Starboard Tilt Lock Lever
SKU: 41220-95E13 Weight: 0.250000 Brand: Price: $ 145.83 |
Starboard Tilt Lock Lever | 1 | $ 145.83 | ||
| 18 | 41221-95E40 Port Tilt Lock Lever
SKU: 41221-95E40 Weight: 0.250000 Brand: Price: $ 36.22 |
Port Tilt Lock Lever | 1 | $ 36.22 | ||
| 19 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 2 | $ 4.62 | ||
| 20 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | ||
| 21 | 41228-90J00 Tilt Lock Spring
SKU: 41228-90J00 Weight: 0.060000 Brand: Price: $ 8.11 |
Tilt Lock Spring | 1 | $ 8.11 | ||
| 22 | 41230-95E00 Tilt Lock Lever Link
SKU: 41230-95E00 Weight: 0.125000 Brand: Price: $ 23.62 |
Tilt Lock Lever Link | 1 | $ 23.62 | ||
| 23 | 41233-95E10 Tilt Lock Spring Bracket
SKU: 41233-95E10 Weight: 0.060000 Brand: Price: $ 10.26 |
Tilt Lock Spring Bracket | 1 | $ 10.26 | ||
| 24 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 25 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 26 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 27 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 28 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 29 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 30 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1000 | |
| 31 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 31 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
