Suzuki DF 115B Parts Listings - 2021
S/N 11505F-140001 to 11505F-14XXXX
S/N DF 115BZG 11505F-140001 to 11505Z-14XXXX

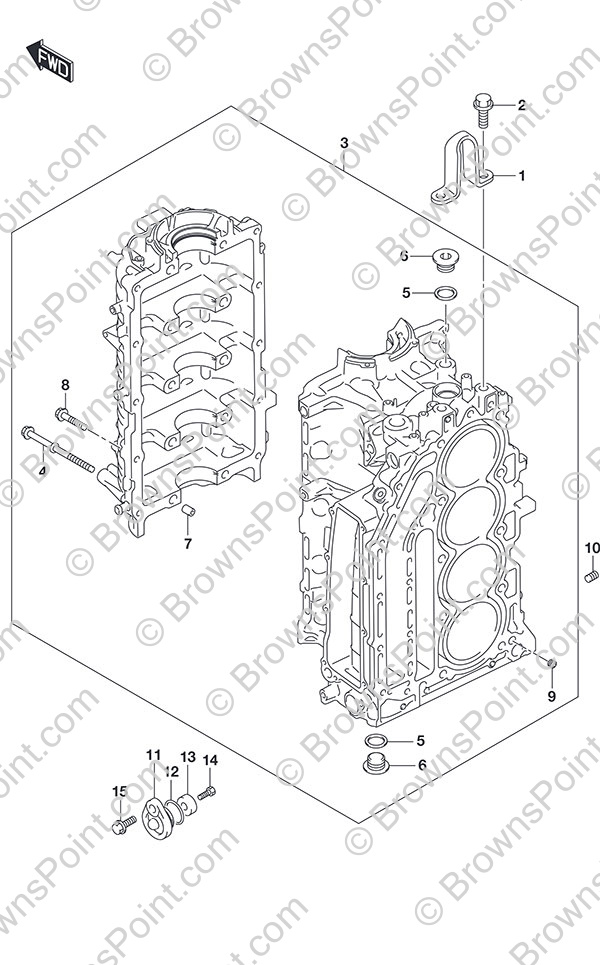

Fig. 113 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11291-99L00 HOOK,ENGINE
SKU: 11291-99L00 Weight: 0.000000 Brand: Price: $ 20.97 |
HOOK,ENGINE | 1 | $ 20.97 | ||
| 2 | 01550-1230C BOLT,ENGINE HOO
SKU: 01550-1230C Weight: 0.125000 Brand: Price: $ 3.33 |
BOLT,ENGINE HOO | 2 | $ 3.33 | ||
| 3 | 11301-99L00 BLOCK SET,CYLIN
SKU: 11301-99L00 Weight: 0.000000 Brand: Price: $ 2,883.07 |
BLOCK SET,CYLIN | 1 | $ 2,883.07 | ||
| 4 | 11117-90J10 Crankcase Bolt
SKU: 11117-90J10 Weight: 0.250000 Brand: Price: $ 6.31 |
Crankcase Bolt | 10 | $ 6.31 | ||
| 5 | 11216-90J10 Oil Gallery Plug Gasket
SKU: 11216-90J10 Weight: 0.060000 Brand: Price: $ 3.05 |
Oil Gallery Plug Gasket | 3 | $ 3.05 | ||
| 6 | 09248-18014 Plug (18x8)
SKU: 09248-18014 Weight: 0.200000 Brand: Price: $ 5.60 |
Plug (18x8) | 3 | $ 5.60 | ||
| 7 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 5 | $ 2.54 | ||
| 8 | 01550-0840C Bolt
SKU: 01550-0840C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 10 | $ 1.80 | ||
| 9 | 11112-90J00 Oil Venturi Plug
SKU: 11112-90J00 Weight: 0.060000 Brand: Price: $ 4.72 |
Oil Venturi Plug | 1 | $ 4.72 | ||
| 10 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 11 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 1 | $ 16.29 | ||
| 12 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 13 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 14 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 15 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 1 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
