Suzuki DF 350A Parts Listings - 2021
S/N 35001F-140001 to 35001F-14XXXX

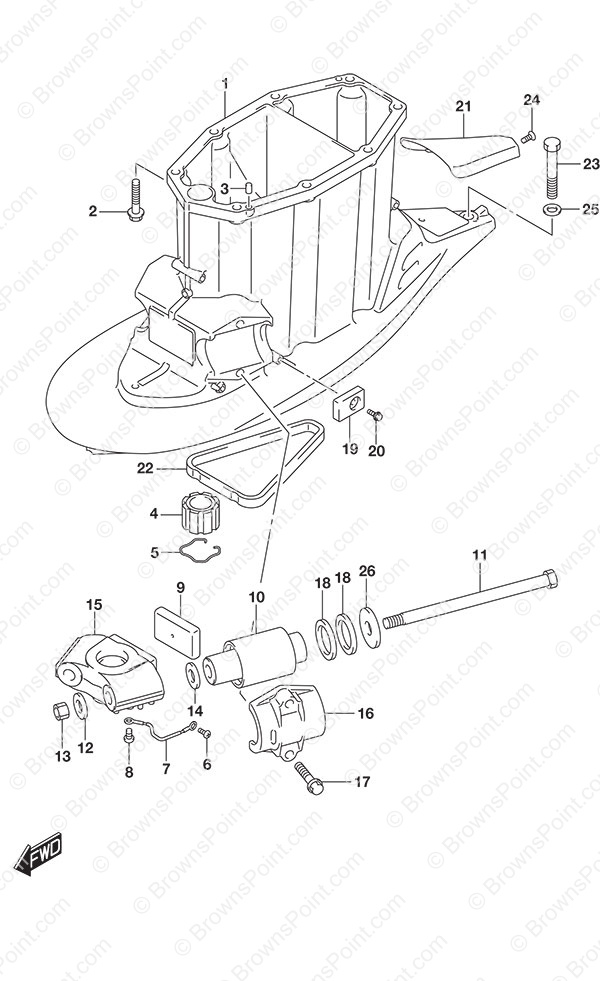

Fig. 405A - Drive Shaft Housing w/Transom (X)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-98L00-YAY Drive Shaft Housing
SKU: 52111-98L00-YAY Weight: 20.000000 Brand: Price: $ 1,000.15 |
Drive Shaft Housing | 1 | $ 1,000.15 | Black | |
| 1-2 | 52111-98L00-QTN HOUSING DRIVE S
SKU: 52111-98L00-QTN Weight: 0.000000 Brand: Price: $ 859.56 |
HOUSING DRIVE S | 1 | $ 859.56 | White | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 57130-87D10 Drive Shaft Bushing
SKU: 57130-87D10 Weight: 0.150000 Brand: Price: $ 38.20 |
Drive Shaft Bushing | 1 | $ 38.20 | ||
| 5 | 09387-39002 RING,DRIVE SHAF
SKU: 09387-39002 Weight: 0.000000 Brand: Price: $ 6.45 |
RING,DRIVE SHAF | 1 | $ 6.45 | ||
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 7 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Mount Bracket to Housing | |
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9 | 54151-98L00 Lower Thurst Mount
SKU: 54151-98L00 Weight: 0.125000 Brand: Price: $ 16.73 |
Lower Thurst Mount | 1 | $ 16.73 | ||
| 10 | 54160-98L00 Lower Mount
SKU: 54160-98L00 Weight: 0.500000 Brand: Price: $ 105.88 |
Lower Mount | 2 | $ 105.88 | ||
| 11 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 12 | 09160-14073 Washer (14.5x34x3)
SKU: 09160-14073 Weight: 0.060000 Brand: Price: $ 8.17 |
Washer (14.5x34x3) | 2 | $ 8.17 | ||
| 13 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 14 | 09160-14073 Washer (14.5x34x3)
SKU: 09160-14073 Weight: 0.060000 Brand: Price: $ 8.17 |
Washer (14.5x34x3) | 2 | $ 8.17 | ||
| 15-1 | 54211-98L00-YAY Lower Mount Bracket
SKU: 54211-98L00-YAY Weight: 0.500000 Brand: Price: $ 171.27 |
Lower Mount Bracket | 1 | $ 171.27 | Black | |
| 15-2 | 54211-98L00-QTN BRACKET,LOWER M
SKU: 54211-98L00-QTN Weight: 0.000000 Brand: Price: $ 147.76 |
BRACKET,LOWER M | 1 | $ 147.76 | White | |
| 16-1 | 54221-93J00 Lower Mount Cover (NLA)
SKU: 54221-93J00 Weight: 0.500000 Brand: Price: $ 44.09 |
Lower Mount Cover (NLA) | 2 | $ 44.09 | Black | |
| 16-2 | 54221-93J00-QTN COVER,LWR MOUNT
SKU: 54221-93J00-QTN Weight: 0.000000 Brand: Price: $ 55.65 |
COVER,LWR MOUNT | 2 | $ 55.65 | White | |
| 17 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 18 | 54165-98L00 Lower Reverse Thrust Stopper
SKU: 54165-98L00 Weight: 0.060000 Brand: Price: $ 7.30 |
Lower Reverse Thrust Stopper | 4 | $ 7.30 | ||
| 19 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 1 | $ 15.13 | ||
| 20 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 1 | $ 1.78 | ||
| 21-1 | 52115-98L00-YAY Drive Shaft Housing Cap
SKU: 52115-98L00-YAY Weight: 0.250000 Brand: Price: $ 67.65 |
Drive Shaft Housing Cap | 1 | $ 67.65 | Black | |
| 21-2 | 52115-98L00-QTN CAP,DRVE SHAFT
SKU: 52115-98L00-QTN Weight: 0.000000 Brand: Price: $ 58.37 |
CAP,DRVE SHAFT | 1 | $ 58.37 | White | |
| 22 | 52118-98L10 Drive Shaft Housing Seal
SKU: 52118-98L10 Weight: 0.120000 Brand: Price: $ 29.98 |
Drive Shaft Housing Seal | 1 | $ 29.98 | ||
| 23 | 09100-12124 Bolt (12x75)
SKU: 09100-12124 Weight: 0.125000 Brand: Price: $ 23.48 |
Bolt (12x75) | 2 | $ 23.48 | ||
| 24 | 09120-06016 Screw
SKU: 09120-06016 Weight: 0.060000 Brand: Price: $ 10.77 |
Screw | 1 | $ 10.77 | ||
| 25 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 26 | 09160-16055 Washer (16x50x4)
SKU: 09160-16055 Weight: 0.060000 Brand: Price: $ 12.92 |
Washer (16x50x4) | 2 | $ 12.92 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
