Suzuki DF 350A Parts Listings - 2021
S/N 35001F-140001 to 35001F-14XXXX

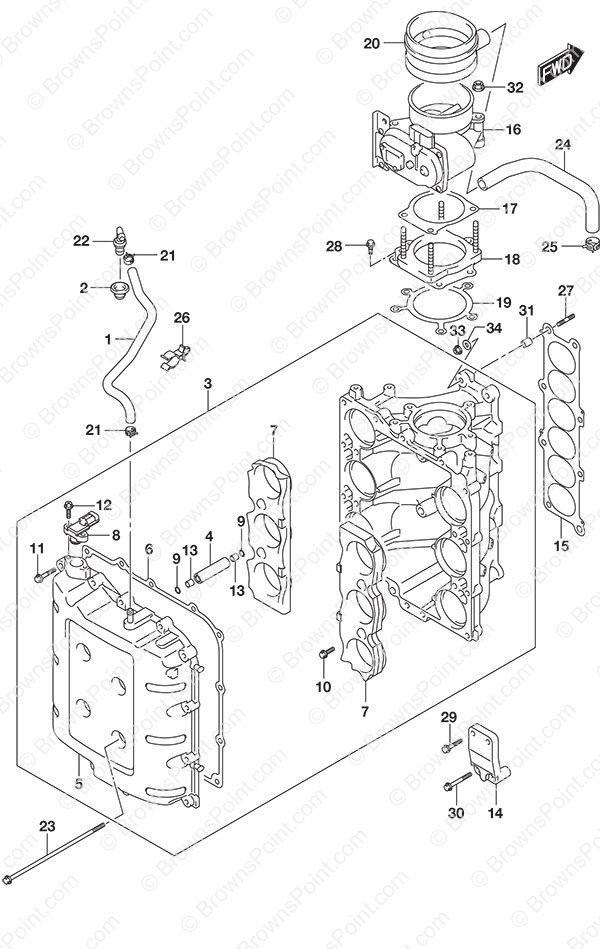

Fig. 163 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11193-98J00 PVC Hose
SKU: 11193-98J00 Weight: 0.200000 Brand: Price: $ 14.48 |
PVC Hose | 1 | $ 14.48 | ||
| 2 | 11198-58B00 PCV Valve Seal
SKU: 11198-58B00 Weight: 0.060000 Brand: Price: $ 4.84 |
PCV Valve Seal | 1 | $ 4.84 | ||
| 3 | 13100-98L01 Collector Assembly
SKU: 13100-98L01 Weight: 5.000000 Brand: Price: $ 1,704.46 |
Collector Assembly | 1 | $ 1,704.46 | ||
| 4 | 13137-98J00 Collector Spacer
SKU: 13137-98J00 Weight: 0.100000 Brand: Price: $ 37.96 |
Collector Spacer | 4 | $ 37.96 | ||
| 5 | 13140-98L00 Collector Cover
SKU: 13140-98L00 Weight: 1.000000 Brand: Price: $ 395.50 |
Collector Cover | 1 | $ 395.50 | ||
| 6 | 13147-98J00 Collector Cover Gasket
SKU: 13147-98J00 Weight: 0.100000 Brand: Price: $ 75.78 |
Collector Cover Gasket | 1 | $ 75.78 | ||
| 7 | 13180-98J01 Collector Funnel
SKU: 13180-98J01 Weight: 0.500000 Brand: Price: $ 69.51 |
Collector Funnel | 2 | $ 69.51 | ||
| 8 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 297.49 |
MAP Sensor | 1 | $ 297.49 | ||
| 9 | 09280-10009 O-Ring
SKU: 09280-10009 Weight: 0.060000 Brand: Price: $ 1.99 |
O-Ring | 8 | $ 1.99 | ||
| 10 | 01550-0816C Bolt
SKU: 01550-0816C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 4 | $ 0.00 | ||
| 11 | 01550-0835C Bolt
SKU: 01550-0835C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 10 | $ 0.00 | ||
| 12 | 02162-05207 SCREW
SKU: 02162-05207 Weight: 0.060000 Brand: Price: $ 1.95 |
SCREW | 2 | $ 1.95 | ||
| 13 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 8 | $ 1.78 | ||
| 14 | 13134-98J00 Collector Bracket
SKU: 13134-98J00 Weight: 0.100000 Brand: Price: $ 53.49 |
Collector Bracket | 1 | $ 53.49 | ||
| 15 | 13139-98J01 Collector Gasket
SKU: 13139-98J01 Weight: 0.200000 Brand: Price: $ 32.72 |
Collector Gasket | 1 | $ 32.72 | ||
| 16 | 13300-98L00 Throttle Body Assembly
SKU: 13300-98L00 Weight: 2.000000 Brand: Price: $ 702.53 |
Throttle Body Assembly | 1 | $ 702.53 | ||
| 17 | 13343-98J10 Throttle Body Gasket
SKU: 13343-98J10 Weight: 0.100000 Brand: Price: $ 57.36 |
Throttle Body Gasket | 1 | $ 57.36 | ||
| 18 | 13315-98J10 Throttle Body Damper
SKU: 13315-98J10 Weight: 0.250000 Brand: Price: $ 144.95 |
Throttle Body Damper | 1 | $ 144.95 | ||
| 19 | 13421-98L00 GASKET,THROTLE
SKU: 13421-98L00 Weight: 0.000000 Brand: Price: $ 9.36 |
GASKET,THROTLE | 1 | $ 9.36 | ||
| 20 | 13813-98L01 Throttle Body Grommet
SKU: 13813-98L01 Weight: 0.250000 Brand: Price: $ 44.02 |
Throttle Body Grommet | 1 | $ 44.02 | ||
| 21 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 22 | 18118-93J00 PCV Valve
SKU: 18118-93J00 Weight: 0.060000 Brand: Price: $ 20.79 |
PCV Valve | 1 | $ 20.79 | ||
| 23 | 09103-08370 Bolt (8x250)
SKU: 09103-08370 Weight: 0.200000 Brand: Price: $ 14.02 |
Bolt (8x250) | 6 | $ 14.02 | ||
| 24 | 11174-98L00 Breather Hose
SKU: 11174-98L00 Weight: 0.500000 Brand: Price: $ 13.90 |
Breather Hose | 1 | $ 13.90 | ||
| 25 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 1 | $ 3.64 | ||
| 26 | 09403-13310 Clamp
SKU: 09403-13310 Weight: 0.060000 Brand: Price: $ 2.50 |
Clamp | 1 | $ 2.50 | ||
| 27 | 01421-0835C Stud Bolt
SKU: 01421-0835C Weight: 0.060000 Brand: Price: $ 0.00 |
Stud Bolt | 2 | $ 0.00 | ||
| 28 | 01550-0816C Bolt
SKU: 01550-0816C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 5 | $ 0.00 | ||
| 29 | 01550-0835C Bolt
SKU: 01550-0835C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 2 | $ 0.00 | ||
| 30 | 01550-0860C Bolt
SKU: 01550-0860C Weight: 0.060000 Brand: Price: $ 2.02 |
Bolt | 2 | $ 2.02 | ||
| 31 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 32 | 09159-08136 Nut
SKU: 09159-08136 Weight: 0.060000 Brand: Price: $ 2.72 |
Nut | 4 | $ 2.72 | ||
| 33 | 08316-1008C Nut
SKU: 08316-1008C Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 2 | $ 0.00 | ||
| 34 | 09160-08161 Washer (8.2x23x3.2) (NLA)
SKU: 09160-08161 Weight: 0.100000 Brand: Price: $ 4.50 |
Washer (8.2x23x3.2) (NLA) | 2 | $ 4.50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
