Suzuki DF 350A Parts Listings - 2021
S/N 35001F-140001 to 35001F-14XXXX

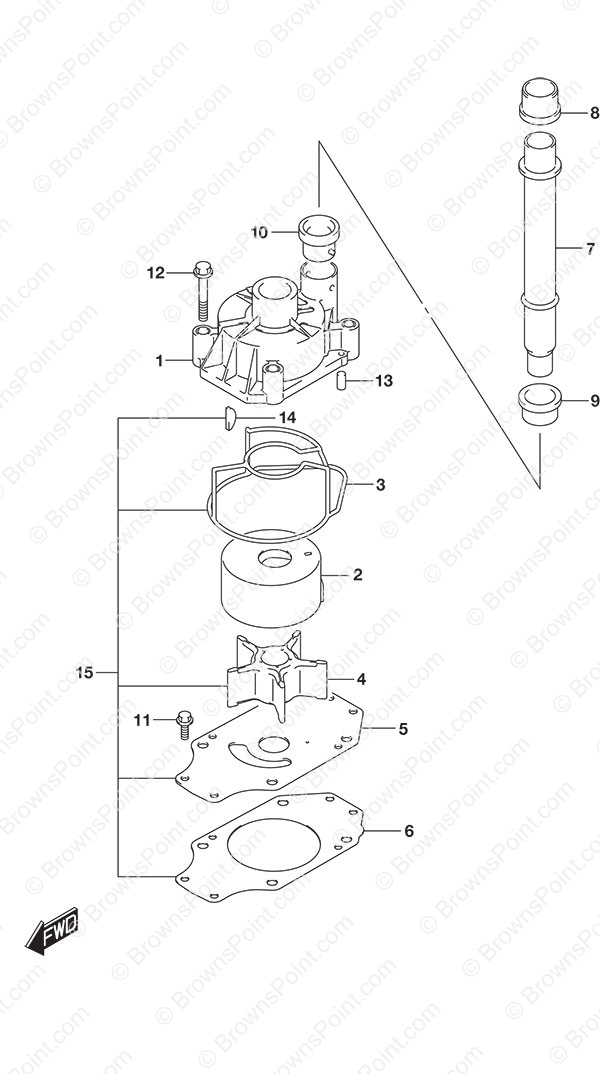

Fig. 160 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-93J01 Water Pump Case
SKU: 17410-93J01 Weight: 0.420000 Brand: Price: $ 70.53 |
Water Pump Case | 1 | $ 70.53 | ||
| 2 | 17413-93J02 Water Pump Case Sleeve
SKU: 17413-93J02 Weight: 0.250000 Brand: Price: $ 22.00 |
Water Pump Case Sleeve | 1 | $ 22.00 | ||
| 3 | 17416-93J01 Water Pump Seal Ring
SKU: 17416-93J01 Weight: 0.060000 Brand: Price: $ 6.92 |
Water Pump Seal Ring | 1 | $ 6.92 | ||
| 4 | 17461-93J01 IMPELLER,WATER
SKU: 17461-93J01 Weight: 0.000000 Brand: Price: $ 28.97 |
IMPELLER,WATER | 1 | $ 28.97 | ||
| 5 | 17471-98L00 Water Pump Plate
SKU: 17471-98L00 Weight: 0.250000 Brand: Price: $ 29.34 |
Water Pump Plate | 1 | $ 29.34 | ||
| 6 | 17472-98L00 Water Pump Plate Gasket
SKU: 17472-98L00 Weight: 0.060000 Brand: Price: $ 8.02 |
Water Pump Plate Gasket | 1 | $ 8.02 | ||
| 7-1 | 17560-98L00 Water Tube (X)
SKU: 17560-98L00 Weight: 0.500000 Brand: Price: $ 122.87 |
Water Tube (X) | 1 | $ 122.87 | w/Transom (X) | |
| 7-2 | 17560-98L10 Water Tube (XX)
SKU: 17560-98L10 Weight: 0.750000 Brand: Price: $ 139.76 |
Water Tube (XX) | 1 | $ 139.76 | w/Transom (XX) | |
| 8 | 17562-98L00 Upper Water Tube Bushing
SKU: 17562-98L00 Weight: 0.060000 Brand: Price: $ 5.60 |
Upper Water Tube Bushing | 1 | $ 5.60 | ||
| 9 | 17563-98L00 Lower Water Tube Bushing
SKU: 17563-98L00 Weight: 0.060000 Brand: Price: $ 6.45 |
Lower Water Tube Bushing | 1 | $ 6.45 | ||
| 10 | 17564-93J01 Water Pump Case Bushing
SKU: 17564-93J01 Weight: 0.060000 Brand: Price: $ 3.23 |
Water Pump Case Bushing | 1 | $ 3.23 | ||
| 11 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 4 | $ 2.55 | ||
| 12 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 13 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 14 | 09420-05009 Water Pump Key
SKU: 09420-05009 Weight: 0.060000 Brand: Price: $ 5.92 |
Water Pump Key | 1 | $ 5.92 | ||
| 15 | 17400-98L03 Water Pump Repair Kit DF 350A/300B
SKU: 17400-98L03 Weight: 0.000000 Brand: Price: $ 66.17 |
Water Pump Repair Kit DF 350A/300B | 1 | $ 66.17 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
