Suzuki DF 300AP Parts Listings - 2021
S/N 30003P-140001 to 30002P-14XXXX

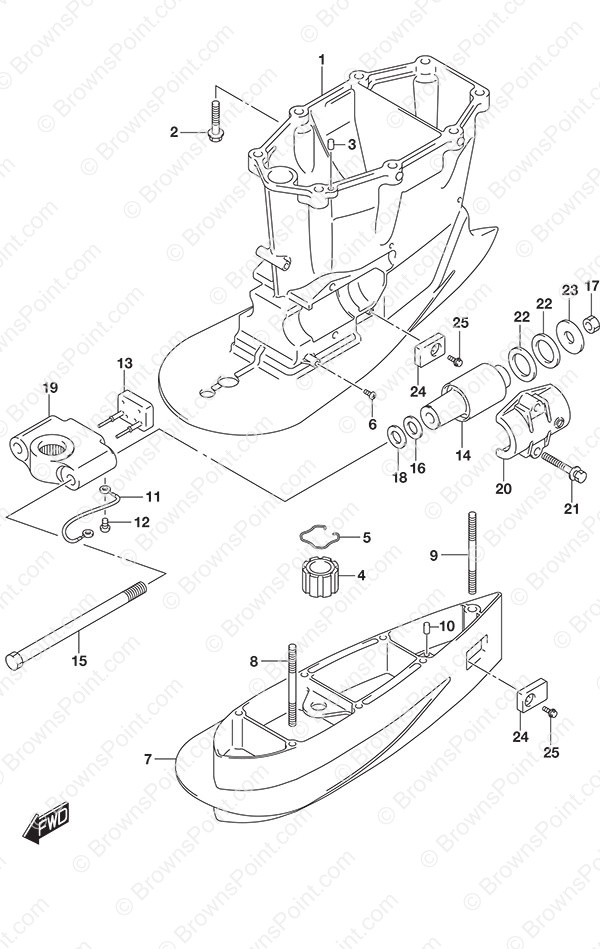

Fig. 405B - Drive Shaft Housing w/Transom (XX)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-98J00-YAY Drive Shaft Housing
SKU: 52111-98J00-YAY Weight: 20.000000 Brand: Price: $ 904.33 |
Drive Shaft Housing | 1 | $ 904.33 | Black | |
| 1-2 | 52111-98J00-QTN HOUSING DRV SHA
SKU: 52111-98J00-QTN Weight: 0.000000 Brand: Price: $ 955.79 |
HOUSING DRV SHA | 1 | $ 955.79 | White | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 57130-87D10 Drive Shaft Bushing
SKU: 57130-87D10 Weight: 0.150000 Brand: Price: $ 38.20 |
Drive Shaft Bushing | 1 | $ 38.20 | ||
| 5 | 09387-39002 RING,DRIVE SHAF
SKU: 09387-39002 Weight: 0.000000 Brand: Price: $ 6.45 |
RING,DRIVE SHAF | 1 | $ 6.45 | ||
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 7-1 | 52131-93J00-YAY Extension Case (XX)
SKU: 52131-93J00-YAY Weight: 11.500000 Brand: Price: $ 754.74 |
Extension Case (XX) | 1 | $ 754.74 | Black | |
| 7-2 | 52131-93J00-QTN CASE,EXTENSION(
SKU: 52131-93J00-QTN Weight: 0.000000 Brand: Price: $ 673.36 |
CASE,EXTENSION( | 1 | $ 673.36 | White | |
| 8 | 09108-10115 Stud Bolt
SKU: 09108-10115 Weight: 0.100000 Brand: Price: $ 24.92 |
Stud Bolt | 6 | $ 24.92 | ||
| 9 | 09108-12013 Extension Bolt
SKU: 09108-12013 Weight: 0.100000 Brand: Price: $ 31.89 |
Extension Bolt | 1 | $ 31.89 | ||
| 10 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 11 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Mount Bracket to Housing Lead | |
| 12 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 13 | 54150-98J01 MOUNT,LWR THRUS
SKU: 54150-98J01 Weight: 0.000000 Brand: Price: $ 38.52 |
MOUNT,LWR THRUS | 1 | $ 38.52 | ||
| 14 | 54160-98J00 Lower Mount
SKU: 54160-98J00 Weight: 0.500000 Brand: Price: $ 138.26 |
Lower Mount | 2 | $ 138.26 | ||
| 15 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 16 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 17 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 18 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 19-1 | 54211-93J00-YAY Lower Mount Bracket
SKU: 54211-93J00-YAY Weight: 1.000000 Brand: Price: $ 149.16 |
Lower Mount Bracket | 1 | $ 149.16 | Black | |
| 19-2 | 54211-93J00-QTN BRACKET,LOWER M
SKU: 54211-93J00-QTN Weight: 0.000000 Brand: Price: $ 127.87 |
BRACKET,LOWER M | 1 | $ 127.87 | White | |
| 20-1 | 54221-93J00 Lower Mount Cover (NLA)
SKU: 54221-93J00 Weight: 0.500000 Brand: Price: $ 44.09 |
Lower Mount Cover (NLA) | 2 | $ 44.09 | Black | |
| 20-2 | 54221-93J00-QTN COVER,LWR MOUNT
SKU: 54221-93J00-QTN Weight: 0.000000 Brand: Price: $ 55.65 |
COVER,LWR MOUNT | 2 | $ 55.65 | White | |
| 21 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 22 | 54165-98J01 Lower Thrust Reverse Stopper
SKU: 54165-98J01 Weight: 0.125000 Brand: Price: $ 7.77 |
Lower Thrust Reverse Stopper | 4 | $ 7.77 | ||
| 23 | 09160-14066 Reverse Stopper Lower Washer
SKU: 09160-14066 Weight: 0.125000 Brand: Price: $ 9.08 |
Reverse Stopper Lower Washer | 2 | $ 9.08 | ||
| 24 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 2 | $ 15.13 | ||
| 25 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 2 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
