Suzuki DF 9.9B Parts Listings - 2023
S/N 00995F-340001 to 00995F-34XXXX

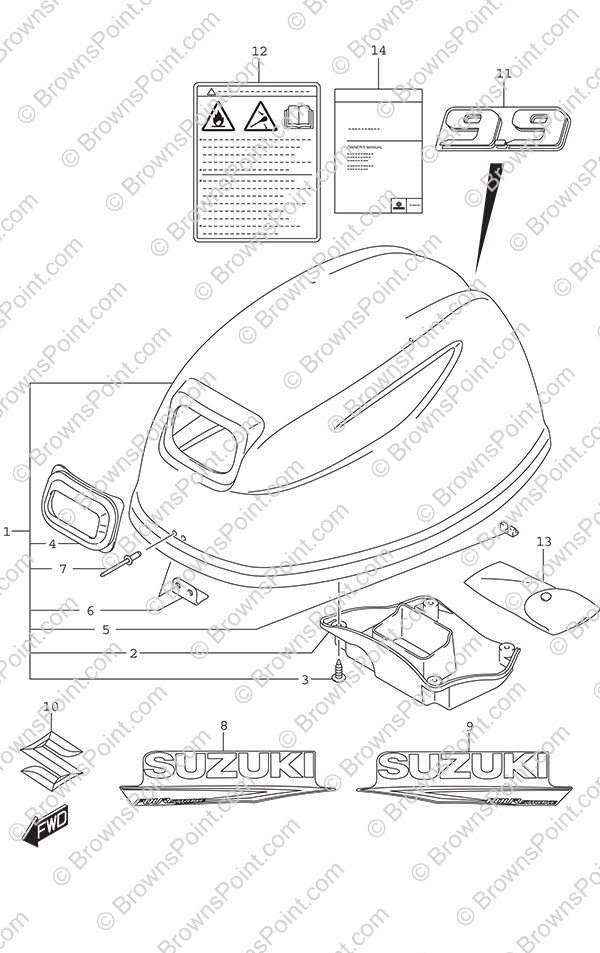

Fig. 420A - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61420-89810-YAY COVER SET,ENGIN
SKU: 61420-89810-YAY Weight: 0.000000 Brand: Price: $ 189.75 |
COVER SET,ENGIN | 1 | $ 189.75 | Black | |
| 1-2 | 61420-89810-QTN COVER SET,ENGIN
SKU: 61420-89810-QTN Weight: 0.000000 Brand: Price: $ 189.75 |
COVER SET,ENGIN | 1 | $ 189.75 | White | |
| 2 | 61433-89L01 Air Intake Inner Cover
SKU: 61433-89L01 Weight: 1.000000 Brand: Price: $ 14.81 |
Air Intake Inner Cover | 1 | $ 14.81 | ||
| 3 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 4 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 25.25 |
Recoil Starter Seal | 1 | $ 25.25 | ||
| 5 | 61619-89L00 Engine Cover Fastener Cushion
SKU: 61619-89L00 Weight: 0.125000 Brand: Price: $ 4.59 |
Engine Cover Fastener Cushion | 1 | $ 4.59 | ||
| 6 | 61631-99J00 Engine Cover Hook
SKU: 61631-99J00 Weight: 0.060000 Brand: Price: $ 10.32 |
Engine Cover Hook | 1 | $ 10.32 | ||
| 7 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.66 |
Rivet | 2 | $ 1.66 | ||
| 8-1 | 61443-89L00-YAY Starboard Engine Cover Stripe
SKU: 61443-89L00-YAY Weight: 0.100000 Brand: Price: $ 21.42 |
Starboard Engine Cover Stripe | 1 | $ 21.42 | Black | |
| 8-2 | 61443-89L00-QTN Starboard Engine Cover Stripe
SKU: 61443-89L00-QTN Weight: 0.100000 Brand: Price: $ 21.42 |
Starboard Engine Cover Stripe | 1 | $ 21.42 | White | |
| 9-1 | 61453-89L00-YAY Port Engine Cover Stripe
SKU: 61453-89L00-YAY Weight: 0.100000 Brand: Price: $ 21.42 |
Port Engine Cover Stripe | 1 | $ 21.42 | Black | |
| 9-2 | 61453-89L00-QTN Port Engine Cover Stripe
SKU: 61453-89L00-QTN Weight: 0.100000 Brand: Price: $ 21.42 |
Port Engine Cover Stripe | 1 | $ 21.42 | White | |
| 10 | 77811-54GB0-0PG Chrome S Emblem
SKU: 77811-54GB0-0PG Weight: 0.250000 Brand: Price: $ 13.29 |
Chrome S Emblem | 1 | $ 13.29 | ||
| 11-1 | 61435-89L40-YAY Rear Emblem Mark (9.9)
SKU: 61435-89L40-YAY Weight: 0.060000 Brand: Price: $ 3.94 |
Rear Emblem Mark (9.9) | 1 | $ 3.94 | Black | |
| 11-2 | 61435-89L40-QTN Rear Emblem Mark (9.9)
SKU: 61435-89L40-QTN Weight: 0.060000 Brand: Price: $ 3.94 |
Rear Emblem Mark (9.9) | 1 | $ 3.94 | White | |
| 13 | 61458-89L30 Engine Cover Label
SKU: 61458-89L30 Weight: 0.125000 Brand: Price: $ 3.54 |
Engine Cover Label | 1 | $ 3.54 | ||
| 15 | 59800-89L10 Tool Set
SKU: 59800-89L10 Weight: 1.000000 Brand: Price: $ 83.51 |
Tool Set | 1 | $ 83.51 | ||
| 16 | 99011-89LA1-03B Owners Manual DF9.9B/15A/20A - 2021
SKU: 99011-89LA1-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF9.9B/15A/20A - 2021 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
