Suzuki DF 9.9B Parts Listings - 2023
S/N 00995F-340001 to 00995F-34XXXX

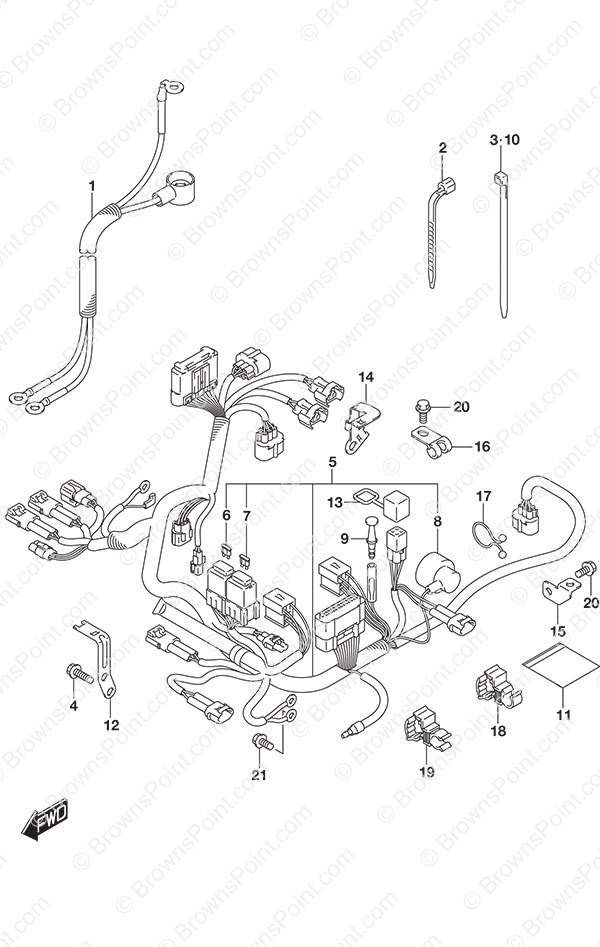

Fig. 322A - Harness Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-89L10 Starter Cable
SKU: 33810-89L10 Weight: 2.000000 Brand: Price: $ 59.57 |
Starter Cable | 1 | $ 59.57 | w/Electric Starter | |
| 2 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | w/Electric Starter | |
| 3 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | w/Electric Starter | |
| 4 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.58 |
BOLT,HARNESS B | 2 | $ 1.58 | w/Electric Starter | |
| 5-1 | 36610-89LG2 HARNESS ASSY,WI
SKU: 36610-89LG2 Weight: 0.000000 Brand: Price: $ 179.85 |
HARNESS ASSY,WI | 1 | $ 179.85 | w/Electric Starter | |
| 5-2 | 36610-89LC1 HARNESS ASSY,WI
SKU: 36610-89LC1 Weight: 0.000000 Brand: Price: $ 143.90 |
HARNESS ASSY,WI | 1 | $ 143.90 | w/Manual Starter | |
| 6 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | w/Electric Starter | |
| 7 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | w/Electric Starter | |
| 8 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | ||
| 10-1 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 4 | $ 3.09 | w/Electric Starter | |
| 10-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 5 | $ 3.09 | w/Manual Starter | |
| 11 | 32916-89L00 Connector Cover
SKU: 32916-89L00 Weight: 0.250000 Brand: Price: $ 7.30 |
Connector Cover | 1 | $ 7.30 | w/Electric Starter | |
| 12 | 36617-89L10 Harness Bracket (NLA)
SKU: 36617-89L10 Weight: 0.250000 Brand: Price: $ 5.23 |
Harness Bracket (NLA) | 1 | $ 5.23 | w/Electric Starter | |
| 13 | 33634-94L00 Service Connector Cap
SKU: 33634-94L00 Weight: 0.200000 Brand: Price: $ 6.93 |
Service Connector Cap | 1 | $ 6.93 | ||
| 14 | 36617-89L01 Harness Bracket
SKU: 36617-89L01 Weight: 0.060000 Brand: Price: $ 0.00 |
Harness Bracket | 1 | $ 0.00 | ||
| 15 | 36617-91J00 Switch Lead Bracket (NLA)
SKU: 36617-91J00 Weight: 0.250000 Brand: Price: $ 2.58 |
Switch Lead Bracket (NLA) | 1 | $ 2.58 | ||
| 16 | 09403-08417 Clamp
SKU: 09403-08417 Weight: 0.100000 Brand: Price: $ 2.48 |
Clamp | 1 | $ 2.48 | ||
| 17 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 18-1 | 09408-00339 Clamp
SKU: 09408-00339 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | w/Electric Starter | |
| 18-2 | 09408-00252 Clamp (NLA)
SKU: 09408-00252 Weight: 0.250000 Brand: Price: $ 2.16 |
Clamp (NLA) | 1 | $ 2.16 | w/Manual Starter | |
| 19 | 09408-00338 Clamp
SKU: 09408-00338 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 20 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
