Suzuki DF 4A Parts Listings - 2023
S/N 00403F-340001 to 00403F-34XXXX

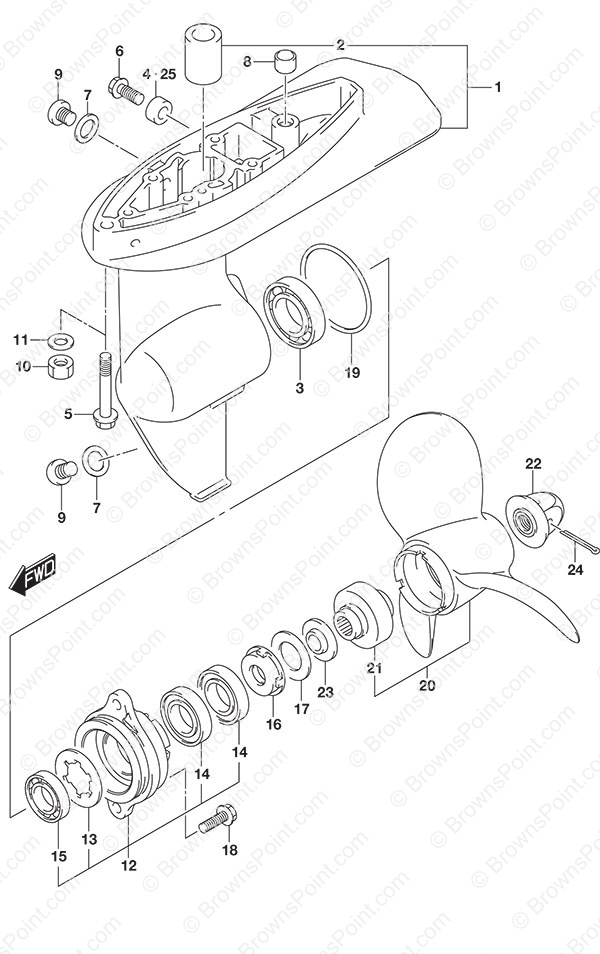

Fig. 407 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-97L00-YAY Gear Case Assembly
SKU: 55110-97L00-YAY Weight: 10.000000 Brand: Price: $ 220.76 |
Gear Case Assembly | 1 | $ 220.76 | ||
| 2 | 59311-91J00 Pinion Bushing
SKU: 59311-91J00 Weight: 0.200000 Brand: Price: $ 28.55 |
Pinion Bushing | 1 | $ 28.55 | ||
| 3 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 4 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 5 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 2 | $ 4.71 | w/Transom (S) | |
| 6 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 7 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 2 | $ 2.03 | ||
| 8 | 09206-11006 Pin (8.4x11x8) (NLA)
SKU: 09206-11006 Weight: 0.060000 Brand: Price: $ 2.73 |
Pin (8.4x11x8) (NLA) | 1 | $ 2.73 | ||
| 9 | 09248-08001 Drain Plug
SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.46 |
Drain Plug | 2 | $ 2.46 | ||
| 10 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | w/Transom (L) | |
| 11 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | w/Transom (L) | |
| 12 | 56120-97L00-YAY Propeller Shaft Bearing Housing
SKU: 56120-97L00-YAY Weight: 1.000000 Brand: Price: $ 117.20 |
Propeller Shaft Bearing Housing | 1 | $ 117.20 | ||
| 13 | 09167-23001 Washer
SKU: 09167-23001 Weight: 0.060000 Brand: Price: $ 2.93 |
Washer | 1 | $ 2.93 | ||
| 14 | 09282-12L05 Oil Seal
SKU: 09282-12L05 Weight: 0.250000 Brand: Price: $ 7.27 |
Oil Seal | 2 | $ 7.27 | ||
| 15 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 | ||
| 16 | 56122-98602 Oil Seal Protector
SKU: 56122-98602 Weight: 0.060000 Brand: Price: $ 4.47 |
Oil Seal Protector | 1 | $ 4.47 | ||
| 17 | 56123-98600 Protector Washer
SKU: 56123-98600 Weight: 0.060000 Brand: Price: $ 4.76 |
Protector Washer | 1 | $ 4.76 | ||
| 18 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 19 | 09280-49002 O-Ring
SKU: 09280-49002 Weight: 0.060000 Brand: Price: $ 1.92 |
O-Ring | 1 | $ 1.92 | ||
| 20-1 | 58110-91JL0-019 C601 Propeller (3x7-1/2x6)
SKU: 58110-91JL0-019 Weight: 1.500000 Brand: Price: $ 118.00 |
C601 Propeller (3x7-1/2x6) | 1 | $ 118.00 | ||
| 20-2 | 58110-91JM0-019 C611 Propeller (3x7-1/2x6-1/2)
SKU: 58110-91JM0-019 Weight: 1.500000 Brand: Price: $ 118.00 |
C611 Propeller (3x7-1/2x6-1/2) | 1 | $ 118.00 | ||
| 20-3 | 58110-91JN0-019 C701 Propeller (3x7-1/2x7)
SKU: 58110-91JN0-019 Weight: 1.500000 Brand: Price: $ 167.97 |
C701 Propeller (3x7-1/2x7) | 1 | $ 167.97 | ||
| 21 | 58120-91JL0 Type C Propeller Bushing
SKU: 58120-91JL0 Weight: 0.160000 Brand: Price: $ 38.46 |
Type C Propeller Bushing | 1 | $ 38.46 | ||
| 22 | 58130-91JL0 Propeller Nut
SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
| 23 | 57635-97L00 Propeller Bushing Stopper
SKU: 57635-97L00 Weight: 0.500000 Brand: Price: $ 14.50 |
Propeller Bushing Stopper | 1 | $ 14.50 | ||
| 24 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 25 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
