Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

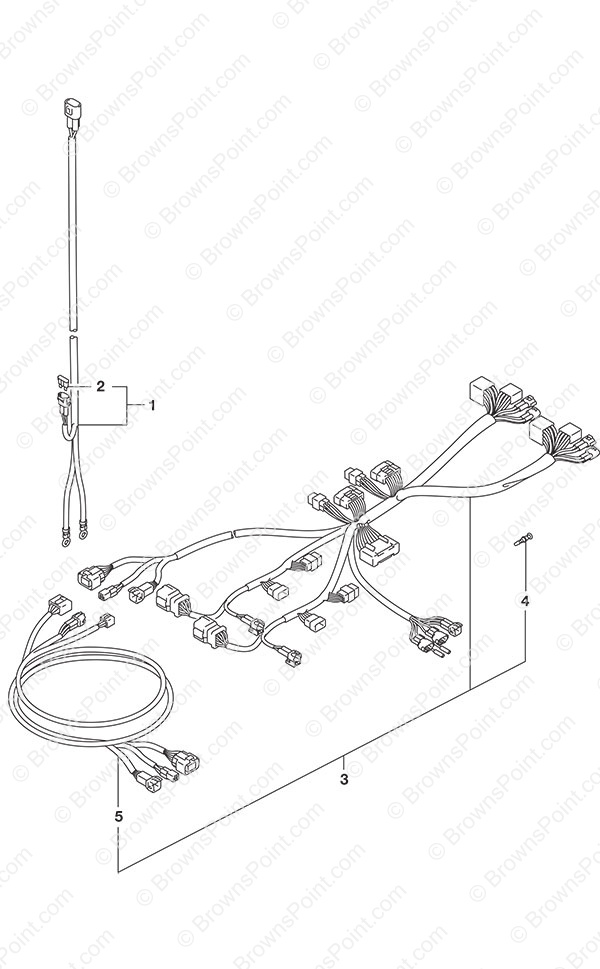

Fig. 523 - Opt: Harness (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36625-98J10 Battery Wire Assembly
SKU: 36625-98J10 Weight: 0.500000 Brand: Price: $ 94.03 |
Battery Wire Assembly | 0 | $ 94.03 | ||
| 2 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 0 | $ 2.33 | ||
| 3 | 36623-98J40 BCM Harness No 1
SKU: 36623-98J40 Weight: 1.000000 Brand: Price: $ 913.69 |
BCM Harness No 1 | 1 | $ 913.69 | ||
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 8 | $ 1.31 | ||
| 5 | 36627-98J00 Harness Extension
SKU: 36627-98J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Harness Extension | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
