Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

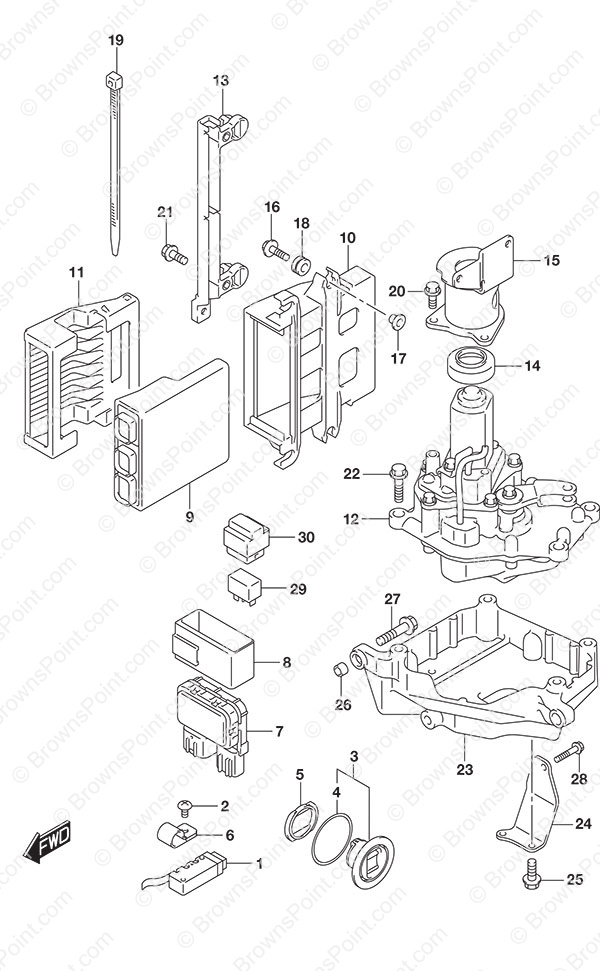

Fig. 326 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 2 | 29125-93J00 Screw (NLA)
SKU: 29125-93J00 Weight: 0.100000 Brand: Price: $ 1.92 |
Screw (NLA) | 1 | $ 1.92 | Tilt Limit Lead Clamp | |
| 3 | 37850-92J00 PTT Switch Assembly
SKU: 37850-92J00 Weight: 0.250000 Brand: Price: $ 101.06 |
PTT Switch Assembly | 1 | $ 101.06 | ||
| 4 | 37856-92J00 PTT Switch Tape
SKU: 37856-92J00 Weight: 0.125000 Brand: Price: $ 3.89 |
PTT Switch Tape | 1 | $ 3.89 | ||
| 5 | 37857-92J01 PTT Switch Bushing
SKU: 37857-92J01 Weight: 0.200000 Brand: Price: $ 2.90 |
PTT Switch Bushing | 1 | $ 2.90 | ||
| 6 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 1 | $ 1.22 | ||
| 7 | 38410-93J21 PTT Relay Assembly
SKU: 38410-93J21 Weight: 0.500000 Brand: Price: $ 117.55 |
PTT Relay Assembly | 1 | $ 117.55 | ||
| 8 | 38415-93J20 PTT Relay Holder
SKU: 38415-93J20 Weight: 0.100000 Brand: Price: $ 9.12 |
PTT Relay Holder | 1 | $ 9.12 | ||
| 9 | 33920-98L80 Engine Control Unit
SKU: 33920-98L80 Weight: 2.000000 Brand: Price: $ 1,958.48 |
Engine Control Unit | 1 | $ 1,958.48 | ||
| 10 | 33924-98L00 ECU Holder
SKU: 33924-98L00 Weight: 0.250000 Brand: Price: $ 28.45 |
ECU Holder | 1 | $ 28.45 | ||
| 11 | 33925-98J00 ECU Cushion
SKU: 33925-98J00 Weight: 0.100000 Brand: Price: $ 22.02 |
ECU Cushion | 1 | $ 22.02 | ||
| 12 | 38800-98L01 ACTUATOR ASSY,S
SKU: 38800-98L01 Weight: 0.000000 Brand: Price: $ 2,592.39 |
ACTUATOR ASSY,S | 1 | $ 2,592.39 | ||
| 13 | 38831-98L00 Actuator Cable Guide
SKU: 38831-98L00 Weight: 0.250000 Brand: Price: $ 55.02 |
Actuator Cable Guide | 1 | $ 55.02 | ||
| 14 | 38892-98L00 Shift Actuator Damper
SKU: 38892-98L00 Weight: 0.060000 Brand: Price: $ 12.80 |
Shift Actuator Damper | 1 | $ 12.80 | ||
| 15 | 38895-98L11 Shift Actuator Bracket
SKU: 38895-98L11 Weight: 0.500000 Brand: Price: $ 70.71 |
Shift Actuator Bracket | 1 | $ 70.71 | ||
| 16 | 38895-98L20 Shift Actuator Bracket
SKU: 38895-98L20 Weight: 0.500000 Brand: Price: $ 22.87 |
Shift Actuator Bracket | 2 | $ 22.87 | ||
| 17 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 18 | 09116-06215 Bolt (6x30) w/Washer
SKU: 09116-06215 Weight: 0.060000 Brand: Price: $ 3.54 |
Bolt (6x30) w/Washer | 4 | $ 3.54 | ||
| 19 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 20 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 3 | $ 1.97 | ||
| 21 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 22 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 4 | $ 1.73 | ||
| 23 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 1 | $ 1.46 | ||
| 24 | 01560-0830C Bolt
SKU: 01560-0830C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 25 | 19115-98L00 Actuator Holder
SKU: 19115-98L00 Weight: 0.500000 Brand: Price: $ 87.43 |
Actuator Holder | 2 | $ 87.43 | ||
| 26 | 19116-98L00 Actuator Bracket
SKU: 19116-98L00 Weight: 0.060000 Brand: Price: $ 25.27 |
Actuator Bracket | 2 | $ 25.27 | ||
| 27 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 3 | $ 7.44 | ||
| 28 | 09206-11006 Pin (8.4x11x8) (NLA)
SKU: 09206-11006 Weight: 0.060000 Brand: Price: $ 2.73 |
Pin (8.4x11x8) (NLA) | 1 | $ 2.73 | ||
| 29 | 01550-0835C Bolt
SKU: 01550-0835C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 2 | $ 0.00 | Actuator | |
| 30 | 01550-0840C Bolt
SKU: 01550-0840C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 2 | $ 1.80 | ||
| 31 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 2 | $ 36.31 | Actuator | |
| 32 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 2 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
