Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

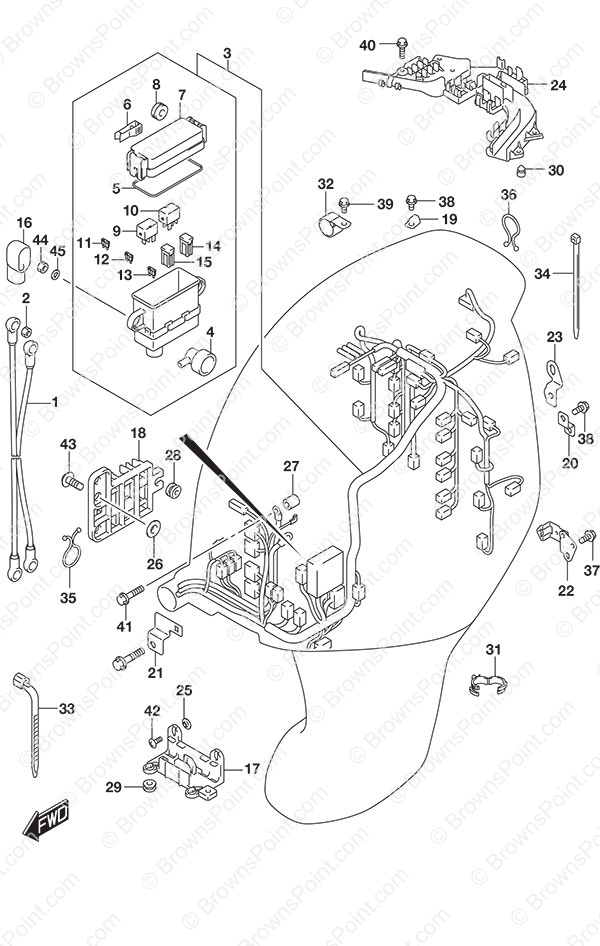

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-98L01 Starter Motor Cable Assembly
SKU: 33810-98L01 Weight: 10.000000 Brand: Price: $ 468.59 |
Starter Motor Cable Assembly | 1 | $ 468.59 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36610-98L30 Wiring Harness Assembly
SKU: 36610-98L30 Weight: 5.000000 Brand: Price: $ 1,278.38 |
Wiring Harness Assembly | 1 | $ 1,278.38 | ||
| 4 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.75 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.75 | ||
| 5 | 36721-98L10 Upper Cover O-Ring
SKU: 36721-98L10 Weight: 0.060000 Brand: Price: $ 12.30 |
Upper Cover O-Ring | 1 | $ 12.30 | ||
| 6 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.37 |
Fuse Puller | 1 | $ 4.37 | ||
| 7 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 17.45 |
Fuse Case Upper Cover | 1 | $ 17.45 | ||
| 8 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.80 |
Cushion (8.5x20x8) | 2 | $ 1.80 | ||
| 9 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Main Power | |
| 10 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Starter Motor | |
| 11 | 09481-10504 10 Amp Fuse
SKU: 09481-10504 Weight: 0.060000 Brand: Price: $ 2.17 |
10 Amp Fuse | 2 | $ 2.17 | ||
| 12 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.18 |
15 Amp Fuse | 5 | $ 2.18 | ||
| 13 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.12 |
30 Amp Fuse | 3 | $ 2.12 | ||
| 14 | 09481-40403 40 Amp Fuse
SKU: 09481-40403 Weight: 0.060000 Brand: Price: $ 5.43 |
40 Amp Fuse | 1 | $ 5.43 | ||
| 15 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.43 |
60 Amp Fuse | 2 | $ 5.43 | ||
| 16 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 5.11 |
CAP,TERMINAL | 1 | $ 5.11 | ||
| 17 | 36616-98L01 HOLDER,CABLE
SKU: 36616-98L01 Weight: 0.000000 Brand: Price: $ 6.69 |
HOLDER,CABLE | 1 | $ 6.69 | ||
| 18 | 36616-98L10 Connector Holder
SKU: 36616-98L10 Weight: 0.250000 Brand: Price: $ 15.62 |
Connector Holder | 1 | $ 15.62 | ||
| 19 | 36617-88L00 Harness Bracket (NLA)
SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 1 | $ 3.47 | ||
| 20 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.06 |
Harness Bracket | 5 | $ 2.06 | ||
| 21 | 36617-98L10 Harness Bracket
SKU: 36617-98L10 Weight: 0.060000 Brand: Price: $ 3.83 |
Harness Bracket | 1 | $ 3.83 | ||
| 22 | 36617-98L30 Harness Bracket
SKU: 36617-98L30 Weight: 0.060000 Brand: Price: $ 12.41 |
Harness Bracket | 1 | $ 12.41 | ||
| 23 | 36617-98L50 Harness Bracket
SKU: 36617-98L50 Weight: 0.060000 Brand: Price: $ 3.83 |
Harness Bracket | 2 | $ 3.83 | ||
| 24 | 36626-98L00 Main Harness Holder
SKU: 36626-98L00 Weight: 0.500000 Brand: Price: $ 37.34 |
Main Harness Holder | 1 | $ 37.34 | ||
| 25 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.18 |
Washer (6.3x16x1) | 2 | $ 1.18 | ||
| 26 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.18 |
Washer (6.3x16x1) | 2 | $ 1.18 | ||
| 27 | 09180-08229 Spacer (8.1x16x17)
SKU: 09180-08229 Weight: 0.060000 Brand: Price: $ 4.30 |
Spacer (8.1x16x17) | 1 | $ 4.30 | ||
| 28 | 09320-04009 Bushing*
SKU: 09320-04009 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing* | 1 | $ 1.26 | ||
| 29 | 09320-08517 CUSHION,CABLE H
SKU: 09320-08517 Weight: 0.000000 Brand: Price: $ 4.70 |
CUSHION,CABLE H | 2 | $ 4.70 | ||
| 30 | 09321-06036 Cushion
SKU: 09321-06036 Weight: 0.060000 Brand: Price: $ 1.62 |
Cushion | 1 | $ 1.62 | ||
| 31 | 09403-25001 Clamp
SKU: 09403-25001 Weight: 0.060000 Brand: Price: $ 3.48 |
Clamp | 1 | $ 3.48 | ||
| 32 | 09403-26401 Clamp
SKU: 09403-26401 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 33 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 34 | 09408-00327 Harness Clip
SKU: 09408-00327 Weight: 0.060000 Brand: Price: $ 4.05 |
Harness Clip | 1 | $ 4.05 | ||
| 35 | 01547-06127 BOLT 6X12
SKU: 01547-06127 Weight: 0.060000 Brand: Price: $ 1.75 |
BOLT 6X12 | 3 | $ 1.75 | ||
| 36 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 4 | $ 1.82 | ||
| 37 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 2 | $ 1.82 | ||
| 38 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.77 |
BOLT | 7 | $ 1.77 | ||
| 39 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.73 |
BOLT | 1 | $ 3.73 | ||
| 40 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 4 | $ 1.45 | ||
| 41 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 1 | $ 1.45 | ||
| 42 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 2 | $ 1.95 | ||
| 43 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 2 | $ 1.95 | ||
| 44 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 45 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
