Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

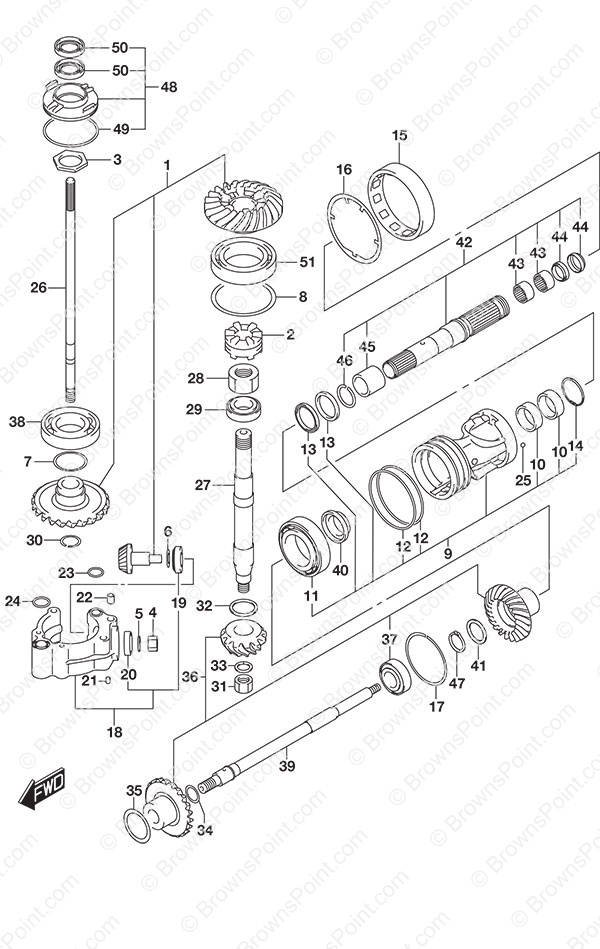

Fig. 220 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 25500-98L00 Reverse Gear Set
SKU: 25500-98L00 Weight: 5.000000 Brand: Price: $ 1,243.29 |
Reverse Gear Set | 1 | $ 1,243.29 | ||
| 2 | 25711-98L00 Clutch Dog Shifter
SKU: 25711-98L00 Weight: 0.500000 Brand: Price: $ 125.46 |
Clutch Dog Shifter | 1 | $ 125.46 | ||
| 3 | 09140-36003 Nut
SKU: 09140-36003 Weight: 0.060000 Brand: Price: $ 29.32 |
Nut | 1 | $ 29.32 | ||
| 4 | 09159-16027 Nut
SKU: 09159-16027 Weight: 0.060000 Brand: Price: $ 26.15 |
Nut | 1 | $ 26.15 | ||
| 5 | 09160-16026 Washer (16x30x3)
SKU: 09160-16026 Weight: 0.060000 Brand: Price: $ 4.33 |
Washer (16x30x3) | 1 | $ 4.33 | ||
| 6-1 | 09181-25051 Shim (25x34x0.6)
SKU: 09181-25051 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.6) | 1 | $ 3.02 | ||
| 6-2 | 09181-25052 Shim (25x34x0.65)
SKU: 09181-25052 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.65) | 1 | $ 3.02 | ||
| 6-3 | 09181-25160 Shim (25x34x0.7)
SKU: 09181-25160 Weight: 0.060000 Brand: Price: $ 2.65 |
Shim (25x34x0.7) | 1 | $ 2.65 | ||
| 6-4 | 09181-25054 Shim (25x34x0.75)
SKU: 09181-25054 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.75) | 1 | $ 3.02 | ||
| 6-5 | 09181-25162 Shim (25x34x0.8)
SKU: 09181-25162 Weight: 0.060000 Brand: Price: $ 2.18 |
Shim (25x34x0.8) | 1 | $ 2.18 | ||
| 6-6 | 09181-25056 Shim (25x34x0.85)
SKU: 09181-25056 Weight: 0.060000 Brand: Price: $ 2.97 |
Shim (25x34x0.85) | 1 | $ 2.97 | ||
| 6-7 | 09181-25057 Shim (25x34x0.9)
SKU: 09181-25057 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (25x34x0.9) | 1 | $ 0.00 | ||
| 6-8 | 09181-25058 Shim (25x34x0.95)
SKU: 09181-25058 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.95) | 1 | $ 3.02 | ||
| 6-9 | 09181-25059 Shim (25x34x1)
SKU: 09181-25059 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (25x34x1) | 1 | $ 0.00 | ||
| 6-10 | 09181-25060 Shim (25x34x1.05)
SKU: 09181-25060 Weight: 0.060000 Brand: Price: $ 2.96 |
Shim (25x34x1.05) | 1 | $ 2.96 | ||
| 6-11 | 09181-25061 Shim (25x34x1.1)
SKU: 09181-25061 Weight: 0.060000 Brand: Price: $ 3.33 |
Shim (25x34x1.1) | 1 | $ 3.33 | ||
| 6-12 | 09181-25062 Shim (25x34x1.15)
SKU: 09181-25062 Weight: 0.060000 Brand: Price: $ 3.33 |
Shim (25x34x1.15) | 1 | $ 3.33 | ||
| 6-13 | 09181-25063 Shim (25x34x1.2)
SKU: 09181-25063 Weight: 0.060000 Brand: Price: $ 3.27 |
Shim (25x34x1.2) | 1 | $ 3.27 | ||
| 6-14 | 09181-25130 Shim (25x32x0.5)
SKU: 09181-25130 Weight: 0.060000 Brand: Price: $ 2.38 |
Shim (25x32x0.5) | 1 | $ 2.38 | ||
| 7-1 | 09181-40004 Shim (0.60)
SKU: 09181-40004 Weight: 0.060000 Brand: Price: $ 2.90 |
Shim (0.60) | 1 | $ 2.90 | ||
| 7-2 | 09181-40005 Shim (0.65)
SKU: 09181-40005 Weight: 0.100000 Brand: Price: $ 2.95 |
Shim (0.65) | 1 | $ 2.95 | ||
| 7-3 | 09181-40006 Shim (0.70)
SKU: 09181-40006 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.70) | 1 | $ 2.90 | ||
| 7-4 | 09181-40007 Shim (0.75)
SKU: 09181-40007 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.75) | 1 | $ 2.90 | ||
| 7-5 | 09181-40008 Shim (0.80)
SKU: 09181-40008 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.80) | 1 | $ 2.90 | ||
| 7-6 | 09181-40009 Shim (0.85)
SKU: 09181-40009 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.85) | 1 | $ 2.90 | ||
| 7-7 | 09181-40010 Shim (0.90)
SKU: 09181-40010 Weight: 0.100000 Brand: Price: $ 2.90 |
Shim (0.90) | 1 | $ 2.90 | ||
| 7-8 | 09181-40011 Shim (0.95)
SKU: 09181-40011 Weight: 0.100000 Brand: Price: $ 2.95 |
Shim (0.95) | 1 | $ 2.95 | ||
| 7-9 | 09181-40012 Shim (1.00)
SKU: 09181-40012 Weight: 0.100000 Brand: Price: $ 3.57 |
Shim (1.00) | 1 | $ 3.57 | ||
| 7-10 | 09181-40013 Shim (1.05)
SKU: 09181-40013 Weight: 0.100000 Brand: Price: $ 3.57 |
Shim (1.05) | 1 | $ 3.57 | ||
| 7-11 | 09181-40014 Shim (1.10)
SKU: 09181-40014 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (1.10) | 1 | $ 0.00 | ||
| 7-12 | 09181-40015 Shim (1.15)
SKU: 09181-40015 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (1.15) | 1 | $ 0.00 | ||
| 8-1 | 09181-77003 Shim (0.50)
SKU: 09181-77003 Weight: 0.100000 Brand: Price: $ 5.13 |
Shim (0.50) | 1 | $ 5.13 | ||
| 8-2 | 09181-77004 Shim (0.55)
SKU: 09181-77004 Weight: 0.100000 Brand: Price: $ 5.15 |
Shim (0.55) | 1 | $ 5.15 | ||
| 8-3 | 09181-77005 Shim (0.60)
SKU: 09181-77005 Weight: 0.100000 Brand: Price: $ 5.13 |
Shim (0.60) | 1 | $ 5.13 | ||
| 8-4 | 09181-77006 Shim (0.65)
SKU: 09181-77006 Weight: 0.100000 Brand: Price: $ 5.13 |
Shim (0.65) | 1 | $ 5.13 | ||
| 8-5 | 09181-77007 Shim (0.70)
SKU: 09181-77007 Weight: 0.100000 Brand: Price: $ 5.15 |
Shim (0.70) | 1 | $ 5.15 | ||
| 8-6 | 09181-77008 Shim (0.75)
SKU: 09181-77008 Weight: 0.100000 Brand: Price: $ 5.13 |
Shim (0.75) | 1 | $ 5.13 | ||
| 8-7 | 09181-77009 Shim (0.80)
SKU: 09181-77009 Weight: 0.100000 Brand: Price: $ 5.15 |
Shim (0.80) | 1 | $ 5.15 | ||
| 8-8 | 09181-77010 Shim (0.85)
SKU: 09181-77010 Weight: 0.100000 Brand: Price: $ 5.13 |
Shim (0.85) | 1 | $ 5.13 | ||
| 8-9 | 09181-77011 Shim (0.90)
SKU: 09181-77011 Weight: 0.100000 Brand: Price: $ 5.92 |
Shim (0.90) | 1 | $ 5.92 | ||
| 8-10 | 09181-77012 Shim (0.95)
SKU: 09181-77012 Weight: 0.100000 Brand: Price: $ 5.75 |
Shim (0.95) | 1 | $ 5.75 | ||
| 8-11 | 09181-77013 Shim (1.00)
SKU: 09181-77013 Weight: 0.100000 Brand: Price: $ 5.75 |
Shim (1.00) | 1 | $ 5.75 | ||
| 8-12 | 09181-77014 Shim (1.05)
SKU: 09181-77014 Weight: 0.100000 Brand: Price: $ 5.75 |
Shim (1.05) | 1 | $ 5.75 | ||
| 8-13 | 09181-77015 Shim (1.10)
SKU: 09181-77015 Weight: 0.060000 Brand: Price: $ 5.75 |
Shim (1.10) | 1 | $ 5.75 | ||
| 9 | 56120-98L00 Propeller Shaft Bearing Housing
SKU: 56120-98L00 Weight: 5.000000 Brand: Price: $ 225.31 |
Propeller Shaft Bearing Housing | 1 | $ 225.31 | ||
| 10 | 09263-45005 Bearing (45x55x20)
SKU: 09263-45005 Weight: 0.125000 Brand: Price: $ 36.22 |
Bearing (45x55x20) | 2 | $ 36.22 | ||
| 11 | 09265-50002 Bearing (50x90x21.75)
SKU: 09265-50002 Weight: 1.500000 Brand: Price: $ 95.03 |
Bearing (50x90x21.75) | 1 | $ 95.03 | ||
| 12 | 09280-00047 O-Ring
SKU: 09280-00047 Weight: 0.060000 Brand: Price: $ 8.54 |
O-Ring | 2 | $ 8.54 | ||
| 13 | 09282-45001 Seal (45x60x8)
SKU: 09282-45001 Weight: 0.060000 Brand: Price: $ 16.92 |
Seal (45x60x8) | 2 | $ 16.92 | ||
| 14 | 08331-41559 Circlip
SKU: 08331-41559 Weight: 0.060000 Brand: Price: $ 3.90 |
Circlip | 1 | $ 3.90 | ||
| 15 | 56122-98L00 Propeller Shaft Bearing Housing Stopper
SKU: 56122-98L00 Weight: 0.250000 Brand: Price: $ 51.69 |
Propeller Shaft Bearing Housing Stopper | 1 | $ 51.69 | ||
| 16 | 56123-98L00 Propeller Housing Stopper Washer
SKU: 56123-98L00 Weight: 0.060000 Brand: Price: $ 17.40 |
Propeller Housing Stopper Washer | 1 | $ 17.40 | ||
| 17-1 | 56126-98L00 Washer (1.9)
SKU: 56126-98L00 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (1.9) | 1 | $ 35.23 | ||
| 17-2 | 56126-98L10 Washer (2.0)
SKU: 56126-98L10 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.0) | 1 | $ 35.23 | ||
| 17-3 | 56126-98L20 Washer (2.1)
SKU: 56126-98L20 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.1) | 1 | $ 35.23 | ||
| 17-4 | 56126-98L30 Washer (2.2)
SKU: 56126-98L30 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.2) | 1 | $ 35.23 | ||
| 17-5 | 56126-98L40 Washer (2.3)
SKU: 56126-98L40 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.3) | 1 | $ 35.23 | ||
| 17-6 | 56126-98L50 Washer (2.4)
SKU: 56126-98L50 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.4) | 1 | $ 35.23 | ||
| 17-7 | 56126-98L60 Washer (2.5)
SKU: 56126-98L60 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.5) | 1 | $ 35.23 | ||
| 17-8 | 56126-98L70 Washer (2.6)
SKU: 56126-98L70 Weight: 0.060000 Brand: Price: $ 35.23 |
Washer (2.6) | 1 | $ 35.23 | ||
| 18 | 56150-98L02 Reverse Pinion Bearing Housing
SKU: 56150-98L02 Weight: 2.000000 Brand: Price: $ 602.21 |
Reverse Pinion Bearing Housing | 1 | $ 602.21 | ||
| 19 | 09265-25048 Bearing (25x52x16.25)
SKU: 09265-25048 Weight: 0.250000 Brand: Price: $ 47.02 |
Bearing (25x52x16.25) | 1 | $ 47.02 | ||
| 20 | 09265-25038 Bearing (25x47x15)
SKU: 09265-25038 Weight: 0.125000 Brand: Price: $ 46.38 |
Bearing (25x47x15) | 1 | $ 46.38 | ||
| 21 | 04221-08129 PIN 8X12
SKU: 04221-08129 Weight: 0.100000 Brand: Price: $ 1.99 |
PIN 8X12 | 1 | $ 1.99 | ||
| 22 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 2 | $ 2.54 | ||
| 23 | 09280-21015 O-Ring
SKU: 09280-21015 Weight: 0.060000 Brand: Price: $ 2.74 |
O-Ring | 2 | $ 2.74 | ||
| 24 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 2 | $ 2.80 | ||
| 25 | 09421-04008 Key
SKU: 09421-04008 Weight: 0.060000 Brand: Price: $ 5.60 |
Key | 1 | $ 5.60 | ||
| 26-1 | 57110-98L01 Upper Driveshaft (X)
SKU: 57110-98L01 Weight: 5.000000 Brand: Price: $ 555.46 |
Upper Driveshaft (X) | 1 | $ 555.46 | w/Transom (X) | |
| 26-2 | 57110-98L11 Upper Driveshaft (XX)
SKU: 57110-98L11 Weight: 5.000000 Brand: Price: $ 635.89 |
Upper Driveshaft (XX) | 1 | $ 635.89 | w/Transom (XX) | |
| 27 | 57113-98L00 Lower Driveshaft
SKU: 57113-98L00 Weight: 5.000000 Brand: Price: $ 151.90 |
Lower Driveshaft | 1 | $ 151.90 | ||
| 28 | 09159-27001 Nut
SKU: 09159-27001 Weight: 0.125000 Brand: Price: $ 95.60 |
Nut | 1 | $ 95.60 | ||
| 29 | 09265-28006 Bearing (28x52x16)
SKU: 09265-28006 Weight: 0.125000 Brand: Price: $ 72.49 |
Bearing (28x52x16) | 1 | $ 72.49 | Part of Fig. 407 Ref# 3 | |
| 30 | 09380-24007 Circlip
SKU: 09380-24007 Weight: 0.060000 Brand: Price: $ 4.24 |
Circlip | 1 | $ 4.24 | ||
| 31 | 09159-16027 Nut
SKU: 09159-16027 Weight: 0.060000 Brand: Price: $ 26.15 |
Nut | 1 | $ 26.15 | ||
| 32-1 | 09181-30037 Shim (0.60)
SKU: 09181-30037 Weight: 0.060000 Brand: Price: $ 3.41 |
Shim (0.60) | 1 | $ 3.41 | ||
| 32-2 | 09181-30038 Shim (0.65)
SKU: 09181-30038 Weight: 0.060000 Brand: Price: $ 2.64 |
Shim (0.65) | 1 | $ 2.64 | ||
| 32-3 | 09181-30039 Shim (0.70)
SKU: 09181-30039 Weight: 0.060000 Brand: Price: $ 3.41 |
Shim (0.70) | 1 | $ 3.41 | ||
| 32-4 | 09181-30040 Shim (0.75)
SKU: 09181-30040 Weight: 0.060000 Brand: Price: $ 3.41 |
Shim (0.75) | 1 | $ 3.41 | ||
| 32-5 | 09181-30041 Shim (0.80)
SKU: 09181-30041 Weight: 0.060000 Brand: Price: $ 3.47 |
Shim (0.80) | 1 | $ 3.47 | ||
| 32-6 | 09181-30042 Shim (0.85)
SKU: 09181-30042 Weight: 0.060000 Brand: Price: $ 3.40 |
Shim (0.85) | 1 | $ 3.40 | ||
| 32-7 | 09181-30046 Shim (1.05)
SKU: 09181-30046 Weight: 0.060000 Brand: Price: $ 3.31 |
Shim (1.05) | 1 | $ 3.31 | ||
| 32-8 | 09181-30158 Shim (0.50)
SKU: 09181-30158 Weight: 0.060000 Brand: Price: $ 3.13 |
Shim (0.50) | 1 | $ 3.13 | ||
| 32-9 | 09181-30164 Shim (0.90)
SKU: 09181-30164 Weight: 0.060000 Brand: Price: $ 3.01 |
Shim (0.90) | 1 | $ 3.01 | ||
| 32-10 | 09181-30165 Shim (0.95)
SKU: 09181-30165 Weight: 0.060000 Brand: Price: $ 3.18 |
Shim (0.95) | 1 | $ 3.18 | ||
| 33 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 34-1 | 09181-25051 Shim (25x34x0.6)
SKU: 09181-25051 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.6) | 1 | $ 3.02 | ||
| 34-2 | 09181-25052 Shim (25x34x0.65)
SKU: 09181-25052 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.65) | 1 | $ 3.02 | ||
| 34-3 | 09181-25160 Shim (25x34x0.7)
SKU: 09181-25160 Weight: 0.060000 Brand: Price: $ 2.65 |
Shim (25x34x0.7) | 1 | $ 2.65 | ||
| 34-4 | 09181-25054 Shim (25x34x0.75)
SKU: 09181-25054 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.75) | 1 | $ 3.02 | ||
| 34-5 | 09181-25162 Shim (25x34x0.8)
SKU: 09181-25162 Weight: 0.060000 Brand: Price: $ 2.18 |
Shim (25x34x0.8) | 1 | $ 2.18 | ||
| 34-6 | 09181-25056 Shim (25x34x0.85)
SKU: 09181-25056 Weight: 0.060000 Brand: Price: $ 2.97 |
Shim (25x34x0.85) | 1 | $ 2.97 | ||
| 34-7 | 09181-25057 Shim (25x34x0.9)
SKU: 09181-25057 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (25x34x0.9) | 1 | $ 0.00 | ||
| 34-8 | 09181-25058 Shim (25x34x0.95)
SKU: 09181-25058 Weight: 0.060000 Brand: Price: $ 3.02 |
Shim (25x34x0.95) | 1 | $ 3.02 | ||
| 34-9 | 09181-25059 Shim (25x34x1)
SKU: 09181-25059 Weight: 0.060000 Brand: Price: $ 0.00 |
Shim (25x34x1) | 1 | $ 0.00 | ||
| 34-10 | 09181-25060 Shim (25x34x1.05)
SKU: 09181-25060 Weight: 0.060000 Brand: Price: $ 2.96 |
Shim (25x34x1.05) | 1 | $ 2.96 | ||
| 34-11 | 09181-25061 Shim (25x34x1.1)
SKU: 09181-25061 Weight: 0.060000 Brand: Price: $ 3.33 |
Shim (25x34x1.1) | 1 | $ 3.33 | ||
| 34-12 | 09181-25062 Shim (25x34x1.15)
SKU: 09181-25062 Weight: 0.060000 Brand: Price: $ 3.33 |
Shim (25x34x1.15) | 1 | $ 3.33 | ||
| 34-13 | 09181-25063 Shim (25x34x1.2)
SKU: 09181-25063 Weight: 0.060000 Brand: Price: $ 3.27 |
Shim (25x34x1.2) | 1 | $ 3.27 | ||
| 34-14 | 09181-25130 Shim (25x32x0.5)
SKU: 09181-25130 Weight: 0.060000 Brand: Price: $ 2.38 |
Shim (25x32x0.5) | 1 | $ 2.38 | ||
| 35-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | ||
| 35-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 35-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 35-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 35-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 35-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 35-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 35-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 35-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 35-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 36 | 57301-98810 Contra Gear Set
SKU: 57301-98810 Weight: 5.000000 Brand: Price: $ 812.73 |
Contra Gear Set | 1 | $ 812.73 | ||
| 37 | 09265-30024 Bearing (30x62x21.25)
SKU: 09265-30024 Weight: 0.250000 Brand: Price: $ 47.35 |
Bearing (30x62x21.25) | 1 | $ 47.35 | ||
| 38 | 09262-40017 Bearing (40x80x18)
SKU: 09262-40017 Weight: 0.250000 Brand: Price: $ 97.60 |
Bearing (40x80x18) | 1 | $ 97.60 | ||
| 39 | 57610-98L00 Inner Propeller Shaft
SKU: 57610-98L00 Weight: 5.000000 Brand: Price: $ 457.71 |
Inner Propeller Shaft | 1 | $ 457.71 | ||
| 40 | 57622-98L00 Propeller Shaft Spacer
SKU: 57622-98L00 Weight: 0.125000 Brand: Price: $ 70.79 |
Propeller Shaft Spacer | 1 | $ 70.79 | ||
| 41 | 09160-36007 Thrust Washer (32x47x2)
SKU: 09160-36007 Weight: 0.125000 Brand: Price: $ 5.54 |
Thrust Washer (32x47x2) | 1 | $ 5.54 | ||
| 42 | 57600-98840 SHAFT SET,PROPE
SKU: 57600-98840 Weight: 0.000000 Brand: Price: $ 1,250.67 |
SHAFT SET,PROPE | 1 | $ 1,250.67 | ||
| 43 | 09263-30064 Bearing (30x37x20)
SKU: 09263-30064 Weight: 0.125000 Brand: Price: $ 20.74 |
Bearing (30x37x20) | 2 | $ 20.74 | ||
| 44 | 09282-30009 Seal (30x38x10.9)
SKU: 09282-30009 Weight: 0.060000 Brand: Price: $ 13.02 |
Seal (30x38x10.9) | 2 | $ 13.02 | ||
| 45 | 09300-40003 Bushing (40x45x40)
SKU: 09300-40003 Weight: 0.060000 Brand: Price: $ 28.15 |
Bushing (40x45x40) | 1 | $ 28.15 | ||
| 46 | 09380-40004 Snap Ring
SKU: 09380-40004 Weight: 0.060000 Brand: Price: $ 3.91 |
Snap Ring | 1 | $ 3.91 | ||
| 47 | 57635-98L00 Propeller Shaft Stopper
SKU: 57635-98L00 Weight: 0.060000 Brand: Price: $ 20.31 |
Propeller Shaft Stopper | 1 | $ 20.31 | ||
| 48 | 17450-98L02 Water Inlet Housing
SKU: 17450-98L02 Weight: 0.250000 Brand: Price: $ 37.90 |
Water Inlet Housing | 1 | $ 37.90 | ||
| 49 | 09280-69001 O-Ring
SKU: 09280-69001 Weight: 0.060000 Brand: Price: $ 3.73 |
O-Ring | 1 | $ 3.73 | ||
| 50 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 51 | 09262-55002 Bearing (55x90x18)
SKU: 09262-55002 Weight: 0.250000 Brand: Price: $ 71.14 |
Bearing (55x90x18) | 1 | $ 71.14 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
