Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

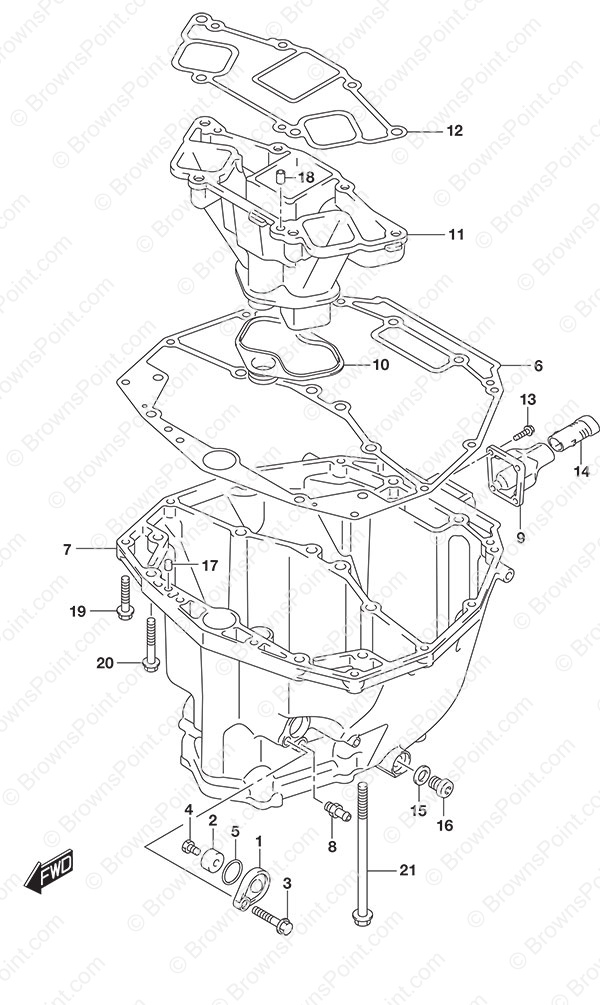

Fig. 180 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 11261-93J10-YAY Replaced by 11261-93J10
SKU: 11261-93J10-YAY Weight: 0.150000 Brand: Price: $ 15.01 |
Replaced by 11261-93J10 | 1 | $ 15.01 | Black | |
| 1-2 | 11261-93J10-Y5S Replaced by 11261-93J10
SKU: 11261-93J10-Y5S Weight: 0.150000 Brand: Price: $ 13.45 |
Replaced by 11261-93J10 | 1 | $ 13.45 | White | |
| 2-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 2-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 3 | 29103-93J30 Bolt (8x25)
SKU: 29103-93J30 Weight: 0.060000 Brand: Price: $ 3.87 |
Bolt (8x25) | 1 | $ 3.87 | ||
| 4 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 5 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 6 | 11489-98L00 Oil Pan Gasket
SKU: 11489-98L00 Weight: 0.250000 Brand: Price: $ 52.11 |
Oil Pan Gasket | 1 | $ 52.11 | ||
| 7-1 | 11501-98L00-YAY Oil Pan
SKU: 11501-98L00-YAY Weight: 20.000000 Brand: Price: $ 629.32 |
Oil Pan | 1 | $ 629.32 | Black | |
| 7-2 | 11501-98L00-Y5S Oil Pan
SKU: 11501-98L00-Y5S Weight: 20.000000 Brand: Price: $ 629.32 |
Oil Pan | 1 | $ 629.32 | White | |
| 8 | 11591-98L00 Oil Pan Union
SKU: 11591-98L00 Weight: 0.060000 Brand: Price: $ 11.54 |
Oil Pan Union | 1 | $ 11.54 | ||
| 9 | 11541-93J00-YAY Exhaust Pipe
SKU: 11541-93J00-YAY Weight: 0.125000 Brand: Price: $ 28.45 |
Exhaust Pipe | 1 | $ 28.45 | ||
| 10 | 14154-93J02 Exhaust Tube Seal
SKU: 14154-93J02 Weight: 0.125000 Brand: Price: $ 6.05 |
Exhaust Tube Seal | 1 | $ 6.05 | ||
| 11 | 14211-98L00 Exhaust Tube
SKU: 14211-98L00 Weight: 2.000000 Brand: Price: $ 225.08 |
Exhaust Tube | 1 | $ 225.08 | ||
| 12 | 14212-98L00 Exhaust Tube Gasket
SKU: 14212-98L00 Weight: 0.125000 Brand: Price: $ 11.25 |
Exhaust Tube Gasket | 1 | $ 11.25 | ||
| 13 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 4 | $ 2.55 | ||
| 14 | 11435-98L01 Exhaust Release Pipe
SKU: 11435-98L01 Weight: 0.060000 Brand: Price: $ 37.47 |
Exhaust Release Pipe | 1 | $ 37.47 | ||
| 15 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 16 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 17 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 18 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 19 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 10 | $ 4.11 | ||
| 20 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | ||
| 21 | 09116-10184 Bolt (10x200)
SKU: 09116-10184 Weight: 0.125000 Brand: Price: $ 27.69 |
Bolt (10x200) | 2 | $ 27.69 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
