Suzuki DF 350A Parts Listings - 2020
S/N 35001F-040001 to 35001F-04XXXX

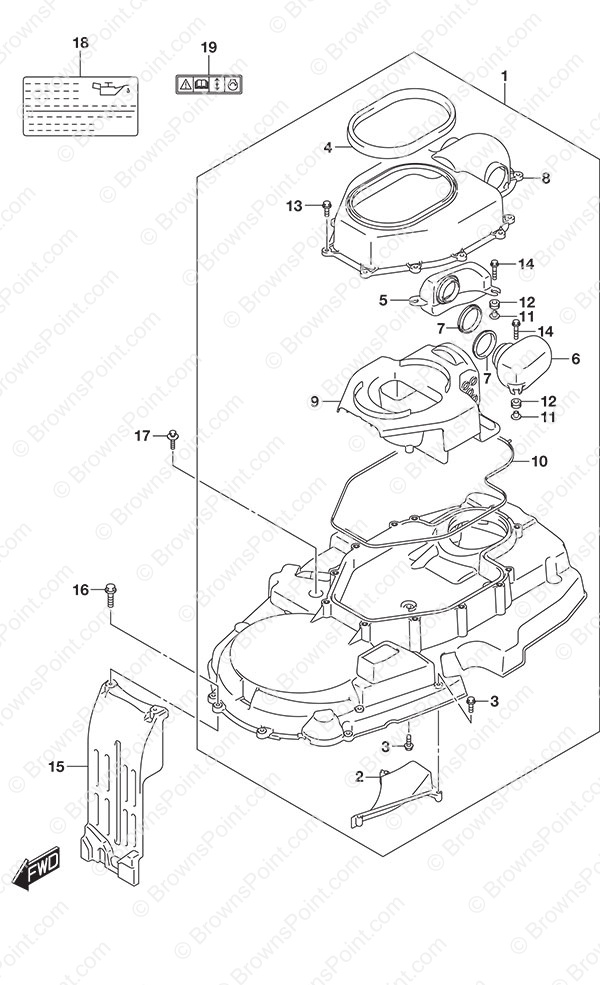

Fig. 136 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-98L10 Ring Gear Cover
SKU: 11510-98L10 Weight: 8.000000 Brand: Price: $ 665.72 |
Ring Gear Cover | 1 | $ 665.72 | ||
| 2 | 11514-98J00 Ring Gear Cover Plate
SKU: 11514-98J00 Weight: 0.100000 Brand: Price: $ 18.33 |
Ring Gear Cover Plate | 1 | $ 18.33 | ||
| 3 | 11517-98J00 Screw
SKU: 11517-98J00 Weight: 0.100000 Brand: Price: $ 2.44 |
Screw | 6 | $ 2.44 | ||
| 4 | 11531-98L00 Upper Silencer Seal
SKU: 11531-98L00 Weight: 0.250000 Brand: Price: $ 27.50 |
Upper Silencer Seal | 1 | $ 27.50 | ||
| 5 | 13761-98L00 Starboard Resonator
SKU: 13761-98L00 Weight: 0.250000 Brand: Price: $ 29.34 |
Starboard Resonator | 1 | $ 29.34 | ||
| 6 | 13762-98L00 Port Resonator
SKU: 13762-98L00 Weight: 0.250000 Brand: Price: $ 29.34 |
Port Resonator | 1 | $ 29.34 | ||
| 7 | 13766-98L00 Resonator Grommet
SKU: 13766-98L00 Weight: 0.060000 Brand: Price: $ 4.39 |
Resonator Grommet | 2 | $ 4.39 | ||
| 8 | 13811-98L00 Upper Cover Silencer
SKU: 13811-98L00 Weight: 1.000000 Brand: Price: $ 95.58 |
Upper Cover Silencer | 1 | $ 95.58 | ||
| 9 | 13812-98L01 Inner Silencer
SKU: 13812-98L01 Weight: 1.000000 Brand: Price: $ 63.36 |
Inner Silencer | 1 | $ 63.36 | ||
| 10 | 13851-98L00 Silencer Seal
SKU: 13851-98L00 Weight: 0.060000 Brand: Price: $ 45.09 |
Silencer Seal | 1 | $ 45.09 | ||
| 11 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 4 | $ 2.52 | ||
| 12 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 4 | $ 1.97 | ||
| 13 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 8 | $ 1.68 | ||
| 14 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 4 | $ 2.24 | ||
| 15 | 13824-98L00 Inner Front Silencer
SKU: 13824-98L00 Weight: 0.250000 Brand: Price: $ 121.07 |
Inner Front Silencer | 1 | $ 121.07 | ||
| 16 | 09229-04055 Rivet
SKU: 09229-04055 Weight: 0.060000 Brand: Price: $ 1.86 |
Rivet | 4 | $ 1.86 | ||
| 17 | 11522-98L01 Ring Gear Front Cover
SKU: 11522-98L01 Weight: 0.500000 Brand: Price: $ 75.40 |
Ring Gear Front Cover | 4 | $ 75.40 | ||
| 18 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 1 | $ 1.46 | ||
| 19 | 09116-06215 Bolt (6x30) w/Washer
SKU: 09116-06215 Weight: 0.060000 Brand: Price: $ 3.54 |
Bolt (6x30) w/Washer | 1 | $ 3.54 | ||
| 20 | 61494-93J01 Oil & Clearance Label
SKU: 61494-93J01 Weight: 0.060000 Brand: Price: $ 5.15 |
Oil & Clearance Label | 1 | $ 5.15 | ||
| 21 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
