Suzuki DF 225 Parts Listings - 2021
S/N 22503F-140001 to 22503F-14XXXX
S/N 22503Z-140001 to 22503Z-14XXXX

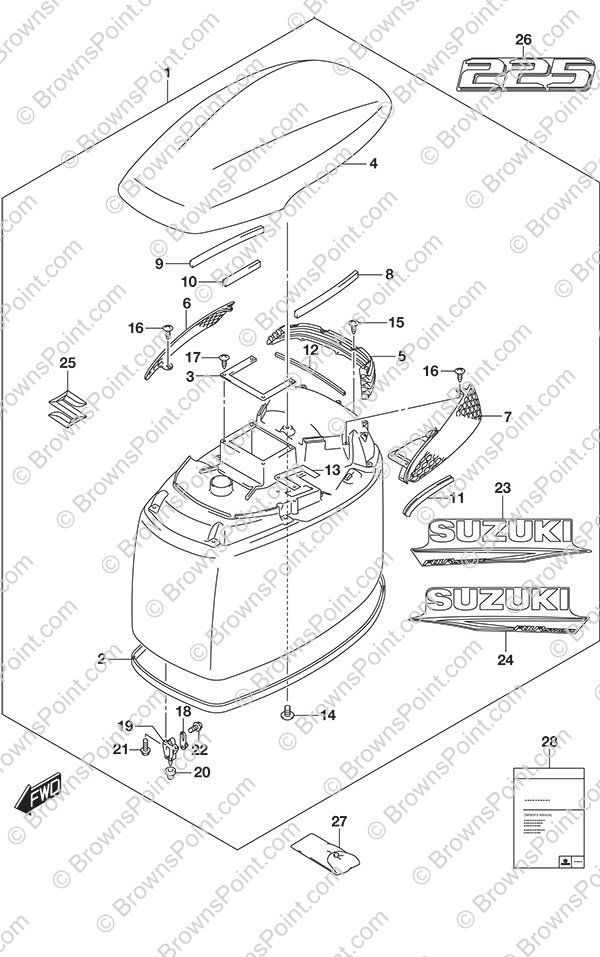

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61430-93870-YAY 61430-93871-YAY
SKU: 61430-93870-YAY Weight: 0.000000 Brand: Price: $ 1,474.48 |
61430-93871-YAY | 1 | $ 1,474.48 | Black | |
| 1-2 | 61430-93880-QTN 61430-93881-QTN
SKU: 61430-93880-QTN Weight: 0.000000 Brand: Price: $ 1,546.05 |
61430-93881-QTN | 1 | $ 1,546.05 | White | |
| 2 | 61112-93J20 Engine Cover Rubber
SKU: 61112-93J20 Weight: 1.500000 Brand: Price: $ 136.66 |
Engine Cover Rubber | 1 | $ 136.66 | ||
| 3 | 61416-93J00 Air Intake Guard
SKU: 61416-93J00 Weight: 0.100000 Brand: Price: $ 11.38 |
Air Intake Guard | 1 | $ 11.38 | ||
| 4-1 | 61431-93J03-YAY Tilt Up Handle
SKU: 61431-93J03-YAY Weight: 2.000000 Brand: Price: $ 347.16 |
Tilt Up Handle | 1 | $ 347.16 | Black | |
| 4-2 | 61431-93J03-QTN HANDLE,TILT UP
SKU: 61431-93J03-QTN Weight: 0.000000 Brand: Price: $ 297.63 |
HANDLE,TILT UP | 1 | $ 297.63 | White | |
| 5 | 61432-93J01 Tilt Up Handle Louver
SKU: 61432-93J01 Weight: 2.000000 Brand: Price: $ 37.28 |
Tilt Up Handle Louver | 1 | $ 37.28 | ||
| 6 | 61433-93J01 Air Intake Inner Starboard Cover
SKU: 61433-93J01 Weight: 1.000000 Brand: Price: $ 28.76 |
Air Intake Inner Starboard Cover | 1 | $ 28.76 | ||
| 7 | 61434-93J01 Air Intake Inner Port Cover
SKU: 61434-93J01 Weight: 0.200000 Brand: Price: $ 28.76 |
Air Intake Inner Port Cover | 1 | $ 28.76 | ||
| 8 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | ||
| 9 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L:250->190 | |
| 10 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | L:250->106 | |
| 11 | 61439-93J20 Tilt Up Handle Port Seal
SKU: 61439-93J20 Weight: 0.100000 Brand: Price: $ 11.62 |
Tilt Up Handle Port Seal | 1 | $ 11.62 | ||
| 12 | 61439-93J41 Tilt Up Handle Rear Seal
SKU: 61439-93J41 Weight: 0.100000 Brand: Price: $ 7.94 |
Tilt Up Handle Rear Seal | 1 | $ 7.94 | ||
| 13 | 61476-93J00 Air Vent Seal
SKU: 61476-93J00 Weight: 0.100000 Brand: Price: $ 9.33 |
Air Vent Seal | 1 | $ 9.33 | ||
| 14 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 15 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 16 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 17 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 18 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 21 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 23-1 | 61443-96L10 STRIPE,ENG CVR
SKU: 61443-96L10 Weight: 0.000000 Brand: Price: $ 26.48 |
STRIPE,ENG CVR | 1 | $ 26.48 | Black | |
| 23-2 | 61443-96L20 STRIPE,ENG CVR
SKU: 61443-96L20 Weight: 0.000000 Brand: Price: $ 28.78 |
STRIPE,ENG CVR | 1 | $ 28.78 | White | |
| 24-1 | 61453-96L10 Port Engine Cover Stripe
SKU: 61453-96L10 Weight: 0.000000 Brand: Price: $ 26.48 |
Port Engine Cover Stripe | 1 | $ 26.48 | Black | |
| 24-2 | 61453-96L20 STRIPE,ENG CVR
SKU: 61453-96L20 Weight: 0.000000 Brand: Price: $ 28.78 |
STRIPE,ENG CVR | 1 | $ 28.78 | White | |
| 25 | 68111-93J00 Emblem Mark 'S'
SKU: 68111-93J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Emblem Mark 'S' | 1 | $ 16.42 | ||
| 26-1 | 61435-93JM0 MARK EMBLEM REA
SKU: 61435-93JM0 Weight: 0.000000 Brand: Price: $ 14.61 |
MARK EMBLEM REA | 1 | $ 14.61 | Black | |
| 26-2 | 61435-93JN0 MARK EMBLEM REA
SKU: 61435-93JN0 Weight: 0.000000 Brand: Price: $ 14.61 |
MARK EMBLEM REA | 1 | $ 14.61 | White | |
| 27 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | Black | |
| 28 | 99011-93JJ1-03B MANUAL,OWNERS
SKU: 99011-93JJ1-03B Weight: 0.000000 Brand: Price: $ 20.00 |
MANUAL,OWNERS | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
