Suzuki DF 200A Parts Listings - 2021
S/N 20003F-140001 to 20003F-14XXXX
S/N 20003Z-140001 to 20003Z-14XXXX

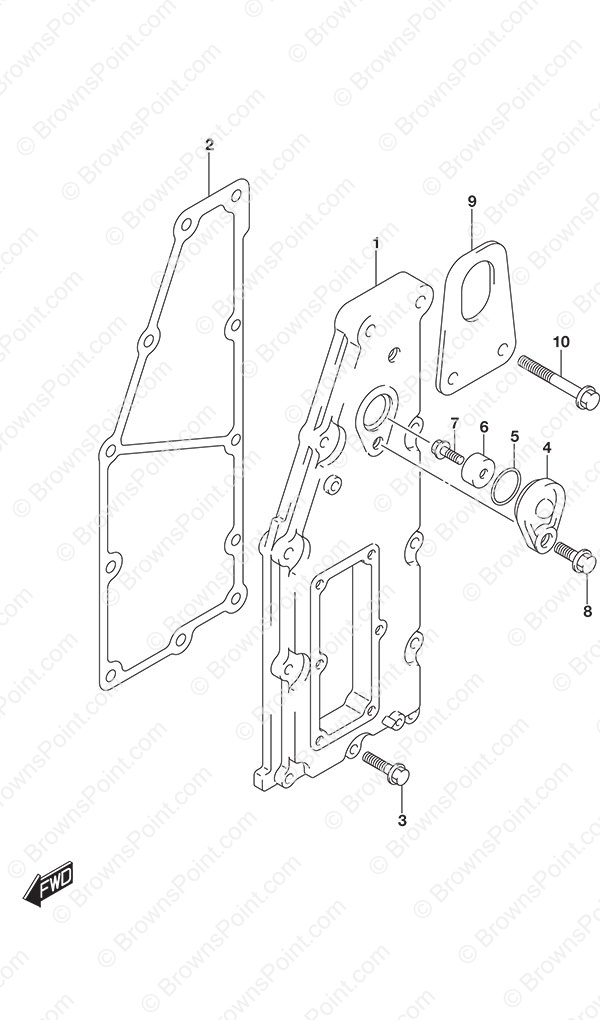

Fig. 140 - Exhaust Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 14141-96J00 Exhaust Cover 1 $ 126.57
2 14151-96J00 Exhaust Cover Gasket 1 $ 9.78
3 01550-06307 BOLT 9 $ 2.74
4 11261-93J00 Protection Anode Cover 1 $ 16.29
5 09280-22019 O-Ring 1 $ 2.38
6 55321-87J01 Aluminum Anode 1 $ 7.36
7 09103-06281 Bolt (6x14) 1 $ 2.99
8 01550-08207 BOLT 1 $ 2.74
9 11292-96J00 Port Engine Hook (NLA) 1 $ 10.76
10 01550-08457 BOLT 2 $ 3.48

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
