Suzuki DF 150 Parts Listings 2006 to S/N 15002F-11XXXX 2006 to S/N 15002Z-11XXXX

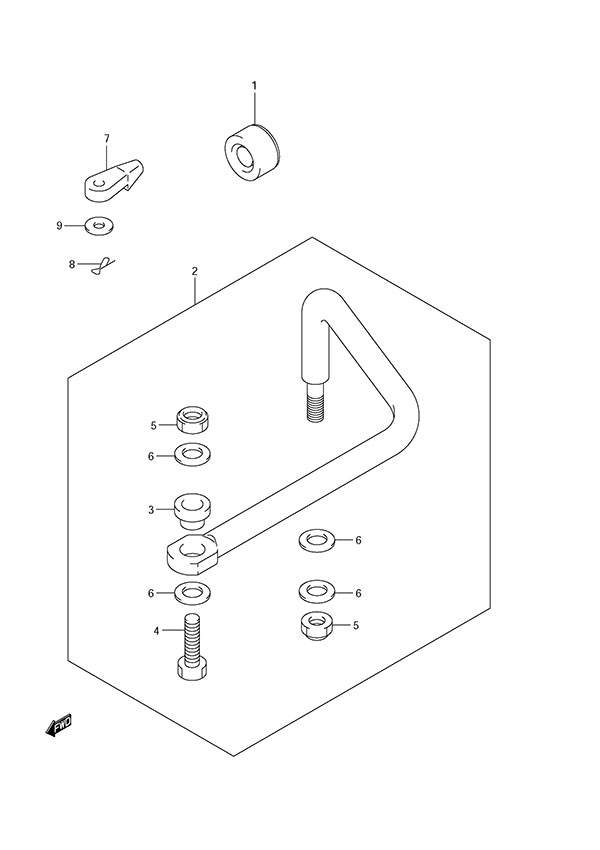

Fig. 43 - Drag Link
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41161-94400 Steering Cable Seal
SKU: 41161-94400 Weight: 0.060000 Brand: Price: $ 13.03 |
Steering Cable Seal | 1 | $ 13.03 | ||
| 2 | 67701-96J00 Drag Link Assembly
SKU: 67701-96J00 Weight: 1.000000 Brand: Price: $ 69.27 |
Drag Link Assembly | 1 | $ 69.27 | ||
| 3 | 67721-96J00 Spacer
SKU: 67721-96J00 Weight: 0.250000 Brand: Price: $ 12.45 |
Spacer | 1 | $ 12.45 | ||
| 4 | 67725-96J00 Drag Link Bolt
SKU: 67725-96J00 Weight: 0.100000 Brand: Price: $ 10.57 |
Drag Link Bolt | 1 | $ 10.57 | ||
| 5 | 67726-99E00 Lock Nut
SKU: 67726-99E00 Weight: 0.060000 Brand: Price: $ 8.53 |
Lock Nut | 2 | $ 8.53 | ||
| 6 | 67728-99E00 Washer
SKU: 67728-99E00 Weight: 0.060000 Brand: Price: $ 2.74 |
Washer | 4 | $ 2.74 | ||
| 7 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 8.01 |
Cable Connector | 2 | $ 8.01 | ||
| 8 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 2.02 |
Clip | 2 | $ 2.02 | ||
| 9 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (7x12x1.0) | 2 | $ 1.76 | ||
| 10 | 67700-96J00 Drag Link Set
SKU: 67700-96J00 Weight: 5.000000 Brand: Price: $ 94.16 |
Drag Link Set | 1 | $ 94.16 | Opt: Not Shown Includes Ref# 1 to 6 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
