Suzuki DF 150 Parts Listings 2006 to 2009

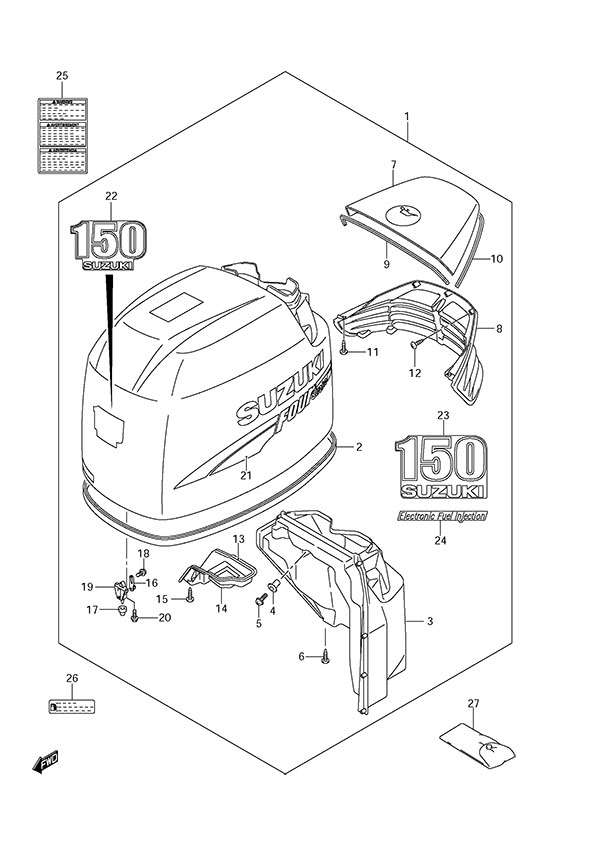

Fig. 40 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61410-96857-0EP Engine Cover Set
SKU: 61410-96857-0EP Weight: 30.000000 Brand: Price: $ 1,553.65 |
Engine Cover Set | 1 | $ 1,553.65 | ||
| 2 | 61112-96J20 Engine Cover Seal
SKU: 61112-96J20 Weight: 1.500000 Brand: Price: $ 100.32 |
Engine Cover Seal | 1 | $ 100.32 | ||
| 3 | 61430-96J01 Air Intake Inner Guide Assembly (NLA)
SKU: 61430-96J01 Weight: 0.100000 Brand: Price: $ 179.74 |
Air Intake Inner Guide Assembly (NLA) | 1 | $ 179.74 | ||
| 4 | 09159-05019 Nut
SKU: 09159-05019 Weight: 0.100000 Brand: Price: $ 7.26 |
Nut | 2 | $ 7.26 | ||
| 5 | 02142-05167 SCREW 5X16 CROS
SKU: 02142-05167 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 5X16 CROS | 2 | $ 1.38 | ||
| 6 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 2 | $ 1.70 | ||
| 7 | 61431-96J00-0EP Tilt Up Handle
SKU: 61431-96J00-0EP Weight: 1.060000 Brand: Price: $ 161.87 |
Tilt Up Handle | 1 | $ 161.87 | ||
| 8 | 61432-96J00 Tilt Up Handle Louver
SKU: 61432-96J00 Weight: 1.000000 Brand: Price: $ 67.77 |
Tilt Up Handle Louver | 1 | $ 67.77 | ||
| 9 | 61438-96J00 Tilt Up Handle Seal No. 1
SKU: 61438-96J00 Weight: 0.250000 Brand: Price: $ 24.77 |
Tilt Up Handle Seal No. 1 | 1 | $ 24.77 | ||
| 10 | 61439-96J00 Tilt Up Handle Seal No. 2
SKU: 61439-96J00 Weight: 0.250000 Brand: Price: $ 24.77 |
Tilt Up Handle Seal No. 2 | 1 | $ 24.77 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 12 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | ||
| 13 | 61475-96J00 Air Vent Guide
SKU: 61475-96J00 Weight: 0.100000 Brand: Price: $ 57.57 |
Air Vent Guide | 1 | $ 57.57 | ||
| 14 | 61476-96J00 Air Vent Seal
SKU: 61476-96J00 Weight: 0.100000 Brand: Price: $ 27.86 |
Air Vent Seal | 1 | $ 27.86 | ||
| 15 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 2 | $ 1.70 | ||
| 16 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 17 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 21-1 | 61443-96J01 Starboard Engine Cover Stripe
SKU: 61443-96J01 Weight: 0.250000 Brand: Price: $ 79.99 |
Starboard Engine Cover Stripe | 1 | $ 79.99 | ||
| 21-2 | 61453-96J01 Port Engine Cover Stripe
SKU: 61453-96J01 Weight: 0.250000 Brand: Price: $ 79.99 |
Port Engine Cover Stripe | 1 | $ 79.99 | ||
| 22 | 61422-96J21 Front Emblem Mark (150)
SKU: 61422-96J21 Weight: 0.125000 Brand: Price: $ 16.68 |
Front Emblem Mark (150) | 1 | $ 16.68 | ||
| 23 | 61435-96J01 Rear Emblem Mark (150)
SKU: 61435-96J01 Weight: 0.125000 Brand: Price: $ 18.74 |
Rear Emblem Mark (150) | 1 | $ 18.74 | ||
| 24 | 61446-93J03 EFI Decal
SKU: 61446-93J03 Weight: 0.060000 Brand: Price: $ 9.14 |
EFI Decal | 1 | $ 9.14 | ||
| 25 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 26 | 69716-99E14 Fuel Limitation Label
SKU: 69716-99E14 Weight: 0.200000 Brand: Price: $ 3.98 |
Fuel Limitation Label | 1 | $ 3.98 | ||
| 27 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
