Suzuki DF 150 Parts Listings 2006 to S/N 15002F-11XXXX 2006 to S/N 15002Z-11XXXX

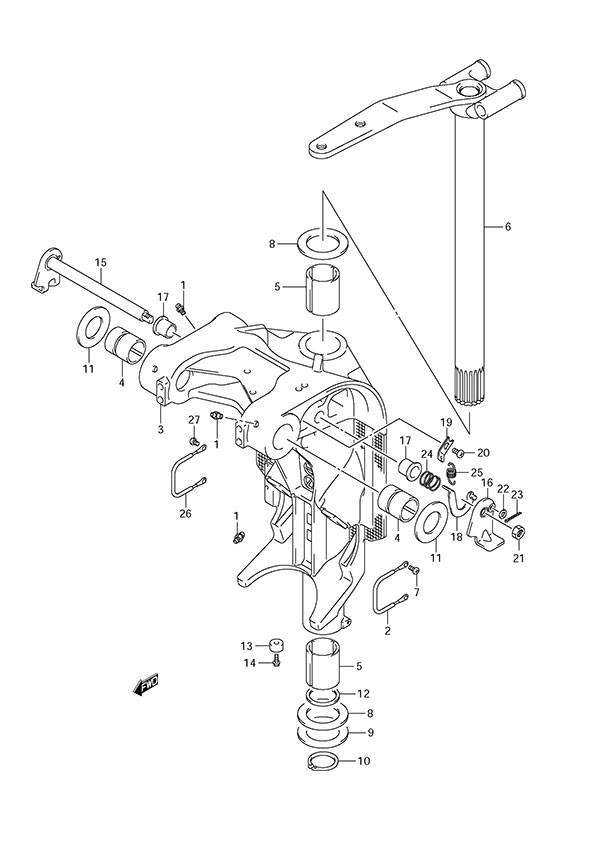

Fig. 32 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Mount Bracket | |
| 3-1 | 43111-96J00-0EP Swivel Bracket (L)
SKU: 43111-96J00-0EP Weight: 20.000000 Brand: Price: $ 1,032.29 |
Swivel Bracket (L) | 1 | $ 1,032.29 | ||
| 3-2 | 43111-96J10-YAY Swivel Bracket (X)
SKU: 43111-96J10-YAY Weight: 20.000000 Brand: Price: $ 846.00 |
Swivel Bracket (X) | 1 | $ 846.00 | ||
| 4 | 43211-93J11 Clamp Shaft Swivel Bushing
SKU: 43211-93J11 Weight: 0.060000 Brand: Price: $ 7.05 |
Clamp Shaft Swivel Bushing | 2 | $ 7.05 | ||
| 5 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 6-1 | 43750-96J03-0EP Steering Bracket (L)
SKU: 43750-96J03-0EP Weight: 5.000000 Brand: Price: $ 811.97 |
Steering Bracket (L) | 1 | $ 811.97 | ||
| 6-2 | 43750-96J13-0EP Steering Bracket (X)
SKU: 43750-96J13-0EP Weight: 10.000000 Brand: Price: $ 858.37 |
Steering Bracket (X) | 1 | $ 858.37 | ||
| 7 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 8 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 2 | $ 3.56 | ||
| 9 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 4 | $ 3.83 | ||
| 10 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 11 | 09169-28003 Washer (26.2x52x1)
SKU: 09169-28003 Weight: 0.060000 Brand: Price: $ 5.64 |
Washer (26.2x52x1) | 2 | $ 5.64 | ||
| 12 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 13-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 13-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 14 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 15-1 | 41200-96810 Tilt Lock Lever & Link Set
SKU: 41200-96810 Weight: 1.080000 Brand: Price: $ 151.62 |
Tilt Lock Lever & Link Set | 1 | $ 151.62 | Includes Ref# 16-1 | |
| 15-2 | 41220-96J11 LEVER,TILT LOCK
SKU: 41220-96J11 Weight: 0.000000 Brand: Price: $ 57.62 |
LEVER,TILT LOCK | 1 | $ 57.62 | DF150T: S/N 981726 Newer DF150Z: S/N 980243 Newer | |
| 16-1 | 41200-96810 Tilt Lock Lever & Link Set
SKU: 41200-96810 Weight: 1.080000 Brand: Price: $ 151.62 |
Tilt Lock Lever & Link Set | 1 | $ 151.62 | Includes Ref# 15-1 | |
| 16-2 | 41234-96J11 LEVER,TILT LOCK
SKU: 41234-96J11 Weight: 0.000000 Brand: Price: $ 22.69 |
LEVER,TILT LOCK | 1 | $ 22.69 | DF150T: S/N 981726 Newer DF150Z: S/N 980243 Newer | |
| 17 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 2 | $ 4.62 | ||
| 18-1 | 41230-95E00 Tilt Lock Lever Link
SKU: 41230-95E00 Weight: 0.125000 Brand: Price: $ 23.62 |
Tilt Lock Lever Link | 1 | $ 23.62 | ||
| 18-2 | 41230-96J00 Tilt Lock Lever Link
SKU: 41230-96J00 Weight: 0.100000 Brand: Price: $ 24.83 |
Tilt Lock Lever Link | 1 | $ 24.83 | DF150T: S/N 981726 Newer DF150Z: S/N 980243 Newer | |
| 19 | 41233-95E10 Tilt Lock Spring Bracket
SKU: 41233-95E10 Weight: 0.060000 Brand: Price: $ 10.26 |
Tilt Lock Spring Bracket | 1 | $ 10.26 | ||
| 20 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 21 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 22 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 23 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 24 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 25 | 09443-10043 Tilt Lock Spring
SKU: 09443-10043 Weight: 0.125000 Brand: Price: $ 2.55 |
Tilt Lock Spring | 1 | $ 2.55 | ||
| 26 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Clamp to Swivel | |
| 27 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
