Suzuki DF 150 Parts Listings 2006 to S/N 15002F-11XXXX 2006 to S/N 15002Z-11XXXX

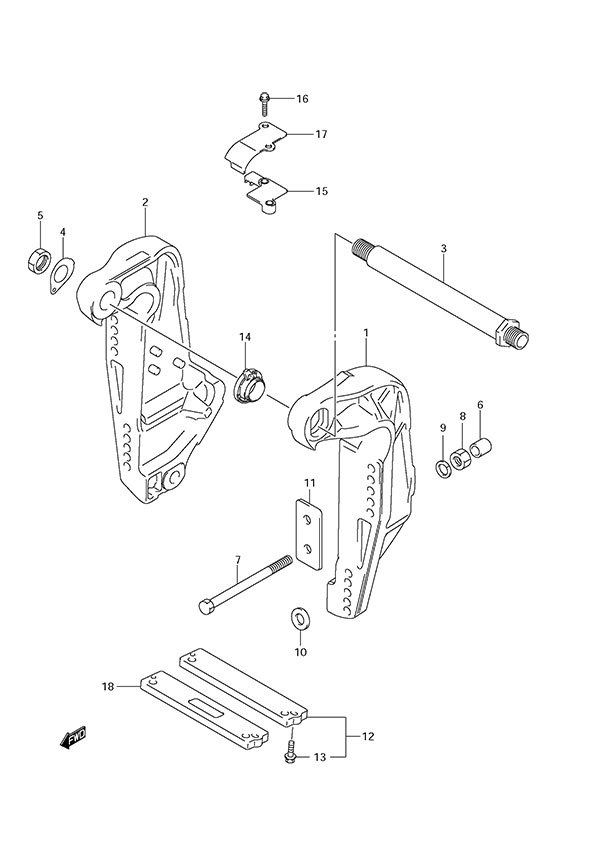

Fig. 31 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-96J22-0EP Clamp Bracket - Starboard
SKU: 41111-96J22-0EP Weight: 20.000000 Brand: Price: $ 391.75 |
Clamp Bracket - Starboard | 1 | $ 391.75 | ||
| 1-2 | 41111-96J22-0EP Clamp Bracket - Starboard
SKU: 41111-96J22-0EP Weight: 20.000000 Brand: Price: $ 391.75 |
Clamp Bracket - Starboard | 1 | $ 391.75 | DF150T: S/N 882207 Newer DF150Z: S/N 880255 Newer | |
| 1-3 | 41111-96J22-0EP Clamp Bracket - Starboard
SKU: 41111-96J22-0EP Weight: 20.000000 Brand: Price: $ 391.75 |
Clamp Bracket - Starboard | 1 | $ 391.75 | 2009 Newer | |
| 2 | 41121-96J13-0EP Clamp Bracket - Port
SKU: 41121-96J13-0EP Weight: 20.000000 Brand: Price: $ 391.75 |
Clamp Bracket - Port | 1 | $ 391.75 | ||
| 3 | 41130-92J03 Clamp Bracket Shaft
SKU: 41130-92J03 Weight: 5.000000 Brand: Price: $ 204.68 |
Clamp Bracket Shaft | 1 | $ 204.68 | ||
| 4 | 41135-92J00 Clamp Bracket Shaft Washer
SKU: 41135-92J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Clamp Bracket Shaft Washer | 1 | $ 7.01 | ||
| 5 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 6 | 41153-93J00 Transom Bolt Cap
SKU: 41153-93J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Transom Bolt Cap | 6 | $ 4.39 | ||
| 7-1 | 09100-12086 Transom Bolt (12.7x150)
SKU: 09100-12086 Weight: 0.250000 Brand: Price: $ 27.84 |
Transom Bolt (12.7x150) | 6 | $ 27.84 | ||
| 7-2 | 09100-12085 Transom Bolt (12.7x115)
SKU: 09100-12085 Weight: 0.100000 Brand: Price: $ 23.74 |
Transom Bolt (12.7x115) | 1 | $ 23.74 | Optional | |
| 7-3 | 09100-12092 Transom Bolt (12.7x75)
SKU: 09100-12092 Weight: 0.125000 Brand: Price: $ 21.10 |
Transom Bolt (12.7x75) | 1 | $ 21.10 | Optional | |
| 8 | 09159-12062 Transom Nut
SKU: 09159-12062 Weight: 0.060000 Brand: Price: $ 8.34 |
Transom Nut | 6 | $ 8.34 | ||
| 9 | 09160-13021 Washer
SKU: 09160-13021 Weight: 0.125000 Brand: Price: $ 10.66 |
Washer | 6 | $ 10.66 | ||
| 10 | 09160-13022 Washer
SKU: 09160-13022 Weight: 0.125000 Brand: Price: $ 13.63 |
Washer | 4 | $ 13.63 | ||
| 11 | 41155-93J02 Transom Plate
SKU: 41155-93J02 Weight: 0.250000 Brand: Price: $ 22.18 |
Transom Plate | 2 | $ 22.18 | ||
| 12 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 13 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 14 | 48140-93J01 Tilt Limit Switch Cam
SKU: 48140-93J01 Weight: 0.060000 Brand: Price: $ 15.32 |
Tilt Limit Switch Cam | 1 | $ 15.32 | ||
| 15 | 48144-93J00 Tilt Limit Switch Holder
SKU: 48144-93J00 Weight: 0.060000 Brand: Price: $ 10.46 |
Tilt Limit Switch Holder | 1 | $ 10.46 | ||
| 16 | 09103-06278 Bolt (6x25)
SKU: 09103-06278 Weight: 0.060000 Brand: Price: $ 2.37 |
Bolt (6x25) | 2 | $ 2.37 | ||
| 17 | 48145-93J00 Tilt Limit Switch Cover
SKU: 48145-93J00 Weight: 0.060000 Brand: Price: $ 10.38 |
Tilt Limit Switch Cover | 1 | $ 10.38 | ||
| 18 | 55321-94910 Magnesium Anode
SKU: 55321-94910 Weight: 0.300000 Brand: Price: $ 45.82 |
Magnesium Anode | 1 | $ 45.82 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
