Suzuki DF 115A Parts Listings - 2021
S/N 11503F-140001 to 11503F-14XXXX
S/N 11503F-140001 to 11503Z-14XXXX

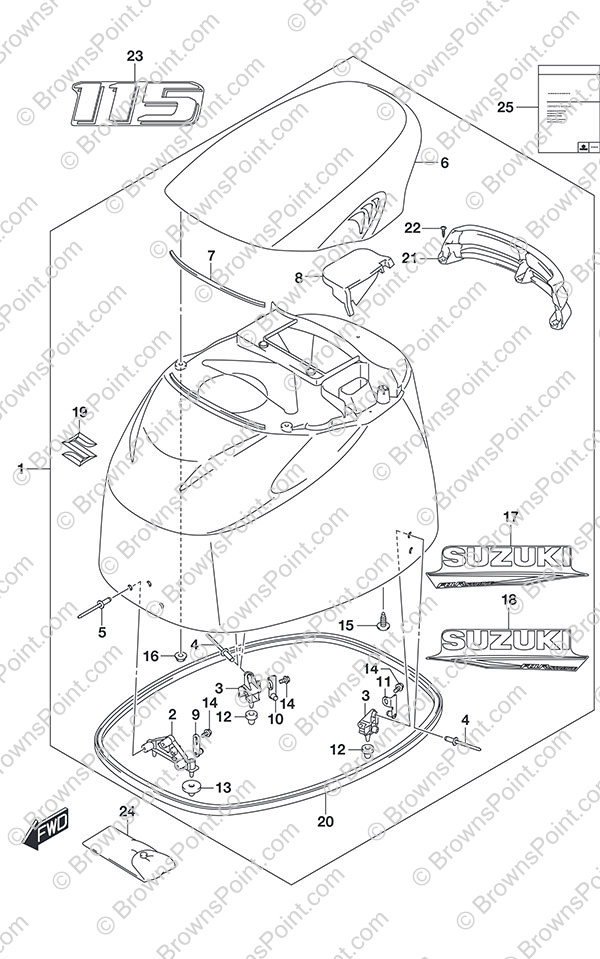

Fig. 420B - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-90840-YAY 61401-90841-YAY
SKU: 61401-90840-YAY Weight: 0.000000 Brand: Price: $ 1,244.86 |
61401-90841-YAY | 1 | $ 1,244.86 | Black | |
| 1-2 | 61401-90850-QTN 61401-90851-QTN
SKU: 61401-90850-QTN Weight: 0.000000 Brand: Price: $ 1,152.65 |
61401-90851-QTN | 1 | $ 1,152.65 | White | |
| 2 | 61621-87D20 Front Fastener Bracket
SKU: 61621-87D20 Weight: 0.250000 Brand: Price: $ 17.04 |
Front Fastener Bracket | 1 | $ 17.04 | ||
| 3 | 61644-90J20 Rear Fastener Bracket
SKU: 61644-90J20 Weight: 0.250000 Brand: Price: $ 20.27 |
Rear Fastener Bracket | 2 | $ 20.27 | ||
| 4 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 4 | $ 2.82 | ||
| 5 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 3 | $ 2.82 | ||
| 6-1 | 61430-92J00-YAY Tilt Up Handle
SKU: 61430-92J00-YAY Weight: 5.000000 Brand: Price: $ 162.86 |
Tilt Up Handle | 1 | $ 162.86 | Black | |
| 6-2 | 61430-92J00-QTN HANDLE COMP,TIL
SKU: 61430-92J00-QTN Weight: 0.000000 Brand: Price: $ 161.71 |
HANDLE COMP,TIL | 1 | $ 161.71 | White | |
| 7 | 61438-92J11 Tilt Up Handle Seal
SKU: 61438-92J11 Weight: 0.250000 Brand: Price: $ 6.41 |
Tilt Up Handle Seal | 1 | $ 6.41 | ||
| 8 | 61439-92J10 Tilt Up Handle Seal
SKU: 61439-92J10 Weight: 0.250000 Brand: Price: $ 2.60 |
Tilt Up Handle Seal | 1 | $ 2.60 | ||
| 9 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 1 | $ 12.24 | ||
| 10 | 61680-90J01 Starboard Rear Fastener
SKU: 61680-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Starboard Rear Fastener | 1 | $ 17.42 | ||
| 11 | 61690-90J01 Port Rear Fastener
SKU: 61690-90J01 Weight: 0.080000 Brand: Price: $ 17.42 |
Port Rear Fastener | 1 | $ 17.42 | ||
| 12 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 13 | 09329-10025 Cushion
SKU: 09329-10025 Weight: 0.060000 Brand: Price: $ 3.33 |
Cushion | 2 | $ 3.33 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 15 | 07120-06167 BOLT
SKU: 07120-06167 Weight: 0.100000 Brand: Price: $ 3.21 |
BOLT | 2 | $ 3.21 | ||
| 16 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | ||
| 17-1 | 61443-88L40 STRIPE,ENG CVR
SKU: 61443-88L40 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | For Black | |
| 17-2 | 61443-88L50 STRIPE,ENG CVR
SKU: 61443-88L50 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | For White | |
| 18-1 | 61453-88L40 STRIPE,ENG CVR
SKU: 61453-88L40 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | For Black | |
| 18-2 | 61453-88L50 STRIPE,ENG CVR
SKU: 61453-88L50 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | For White | |
| 19 | 77811-63J00-0PG Chrome S Emblem
SKU: 77811-63J00-0PG Weight: 0.200000 Brand: Price: $ 18.49 |
Chrome S Emblem | 1 | $ 18.49 | ||
| 20 | 61112-92J10 Side Cover Rubber
SKU: 61112-92J10 Weight: 1.000000 Brand: Price: $ 82.52 |
Side Cover Rubber | 1 | $ 82.52 | ||
| 21 | 61432-92J10 Tilt Up Louver
SKU: 61432-92J10 Weight: 1.000000 Brand: Price: $ 50.12 |
Tilt Up Louver | 1 | $ 50.12 | ||
| 22 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 3 | $ 2.16 | ||
| 23-1 | 61435-99L20 MARK,EMBLEM REA
SKU: 61435-99L20 Weight: 0.000000 Brand: Price: $ 11.71 |
MARK,EMBLEM REA | 1 | $ 11.71 | For Black | |
| 23-2 | 61435-99L30 MARK,EMBLEM REA
SKU: 61435-99L30 Weight: 0.000000 Brand: Price: $ 11.71 |
MARK,EMBLEM REA | 1 | $ 11.71 | For White | |
| 24 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 25 | 99011-90JA1-03B MANUAL,OWNERS
SKU: 99011-90JA1-03B Weight: 0.000000 Brand: Price: $ 20.00 |
MANUAL,OWNERS | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
