Suzuki DF 115A Parts Listings - 2021
S/N 11503F-140001 to 11503F-14XXXX
S/N 11503F-140001 to 11503Z-14XXXX

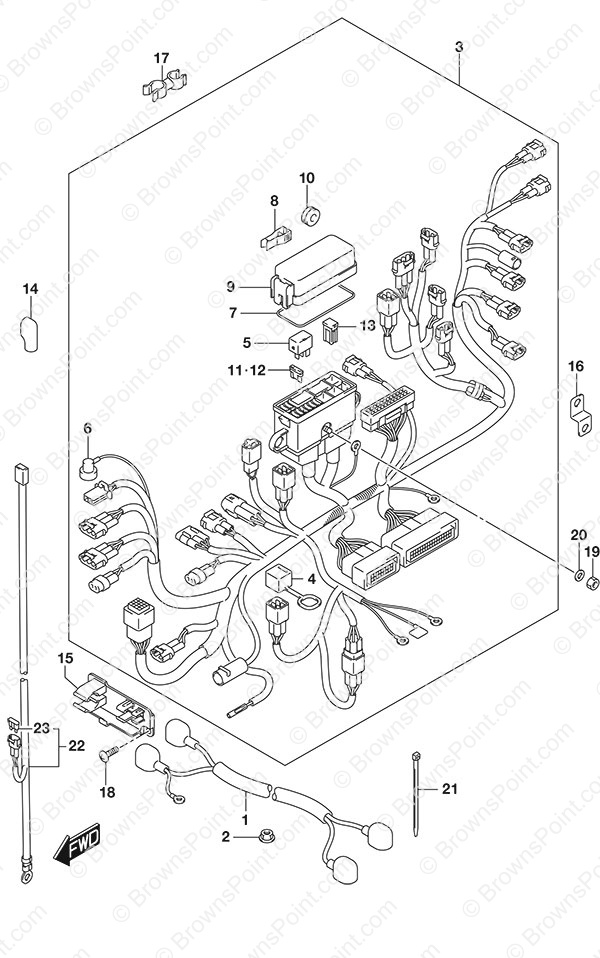

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 173.78 |
CABLE ASSY,STAR | 1 | $ 173.78 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 36610-92J63 HARNESS ASSY,WI
SKU: 36610-92J63 Weight: 0.000000 Brand: Price: $ 587.43 |
HARNESS ASSY,WI | 1 | $ 587.43 | ||
| 4 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 5 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 2 | $ 36.31 | ||
| 6 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 7 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 8 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.22 |
Fuse Puller | 1 | $ 4.22 | ||
| 9 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 16.86 |
Fuse Case Upper Cover | 1 | $ 16.86 | ||
| 10 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 2 | $ 1.71 | ||
| 11 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.08 |
15 Amp Fuse | 3 | $ 2.08 | ||
| 12 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.00 |
30 Amp Fuse | 3 | $ 2.00 | ||
| 13 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.25 |
60 Amp Fuse | 3 | $ 5.25 | ||
| 14 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 4.94 |
CAP,TERMINAL | 1 | $ 4.94 | ||
| 15 | 36616-90J10 Remocon Connector Holder
SKU: 36616-90J10 Weight: 0.250000 Brand: Price: $ 6.97 |
Remocon Connector Holder | 1 | $ 6.97 | ||
| 16 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 17 | 09408-00111 Clamp (NLA)
SKU: 09408-00111 Weight: 0.100000 Brand: Price: $ 3.01 |
Clamp (NLA) | 1 | $ 3.01 | ||
| 18 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 19 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 20 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 21 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 22 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | ||
| 23 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
