Suzuki DF 115A Parts Listings - 2021
S/N 11503F-140001 to 11503F-14XXXX
S/N 11503F-140001 to 11503Z-14XXXX

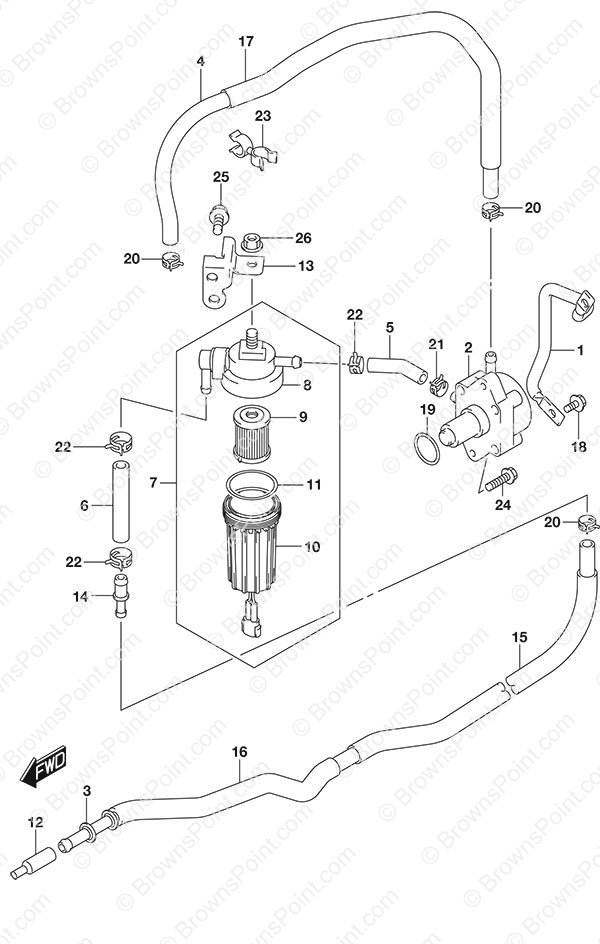

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13144-92J00 Fuel Pump Guard
SKU: 13144-92J00 Weight: 0.250000 Brand: Price: $ 28.85 |
Fuel Pump Guard | 1 | $ 28.85 | ||
| 2 | 15100-90J04 PUMP ASSY,FUEL(
SKU: 15100-90J04 Weight: 0.000000 Brand: Price: $ 100.36 |
PUMP ASSY,FUEL( | 1 | $ 100.36 | ||
| 3 | 15190-92J20 Fuel Hose
SKU: 15190-92J20 Weight: 0.250000 Brand: Price: $ 72.57 |
Fuel Hose | 1 | $ 72.57 | Inlet to Filter | |
| 4 | 15192-92J00 Fuel Hose
SKU: 15192-92J00 Weight: 0.250000 Brand: Price: $ 40.32 |
Fuel Hose | 1 | $ 40.32 | Pump to Separator | |
| 5 | 15193-90J00 Fuel Hose
SKU: 15193-90J00 Weight: 0.250000 Brand: Price: $ 14.97 |
Fuel Hose | 1 | $ 14.97 | Filter to Pump | |
| 6 | 15195-96L00 Fuel Hose
SKU: 15195-96L00 Weight: 0.060000 Brand: Price: $ 7.92 |
Fuel Hose | 1 | $ 7.92 | Joint to Filter No. 2 | |
| 7 | 15410-92J10 Fuel Filter Assembly
SKU: 15410-92J10 Weight: 1.000000 Brand: Price: $ 124.74 |
Fuel Filter Assembly | 1 | $ 124.74 | ||
| 8 | 15411-92J10 Fuel Filter Cap
SKU: 15411-92J10 Weight: 0.250000 Brand: Price: $ 42.45 |
Fuel Filter Cap | 1 | $ 42.45 | ||
| 9 | 15412-92J00 Fuel Filter
SKU: 15412-92J00 Weight: 0.180000 Brand: Price: $ 23.03 |
Fuel Filter | 1 | $ 23.03 | ||
| 10 | 15413-92J00 Fuel Filter Case
SKU: 15413-92J00 Weight: 0.250000 Brand: Price: $ 79.10 |
Fuel Filter Case | 1 | $ 79.10 | ||
| 11 | 15415-92J00 Fuel Filter Seal
SKU: 15415-92J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Fuel Filter Seal | 1 | $ 8.50 | ||
| 12 | 15419-92J00 Joint Cap
SKU: 15419-92J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Joint Cap | 1 | $ 0.00 | ||
| 13 | 15421-92J00 Fuel Filter Bracket
SKU: 15421-92J00 Weight: 0.250000 Brand: Price: $ 7.76 |
Fuel Filter Bracket | 1 | $ 7.76 | ||
| 14 | 15831-96L00 Fuel Hose Union
SKU: 15831-96L00 Weight: 0.060000 Brand: Price: $ 5.55 |
Fuel Hose Union | 1 | $ 5.55 | ||
| 15 | 18498-87J21 Fuel Hose Protector
SKU: 18498-87J21 Weight: 0.060000 Brand: Price: $ 6.99 |
Fuel Hose Protector | 1 | $ 6.99 | ||
| 16 | 18498-87J51 Fuel Hose Protector
SKU: 18498-87J51 Weight: 0.060000 Brand: Price: $ 5.94 |
Fuel Hose Protector | 1 | $ 5.94 | ||
| 17 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.62 | ||
| 18 | 09103-06285 Bolt (6x12)
SKU: 09103-06285 Weight: 0.100000 Brand: Price: $ 1.97 |
Bolt (6x12) | 2 | $ 1.97 | ||
| 19 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 20 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 | ||
| 21 | 09401-12413 Clip
SKU: 09401-12413 Weight: 0.060000 Brand: Price: $ 2.24 |
Clip | 1 | $ 2.24 | ||
| 22 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 3 | $ 1.58 | ||
| 23 | 09408-00050 Clip
SKU: 09408-00050 Weight: 0.060000 Brand: Price: $ 2.32 |
Clip | 1 | $ 2.32 | ||
| 24 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 25 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 26 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
