Suzuki DF 90A Parts Listings - 2021
S/N 09003F-140001 to 09003F-14XXXX

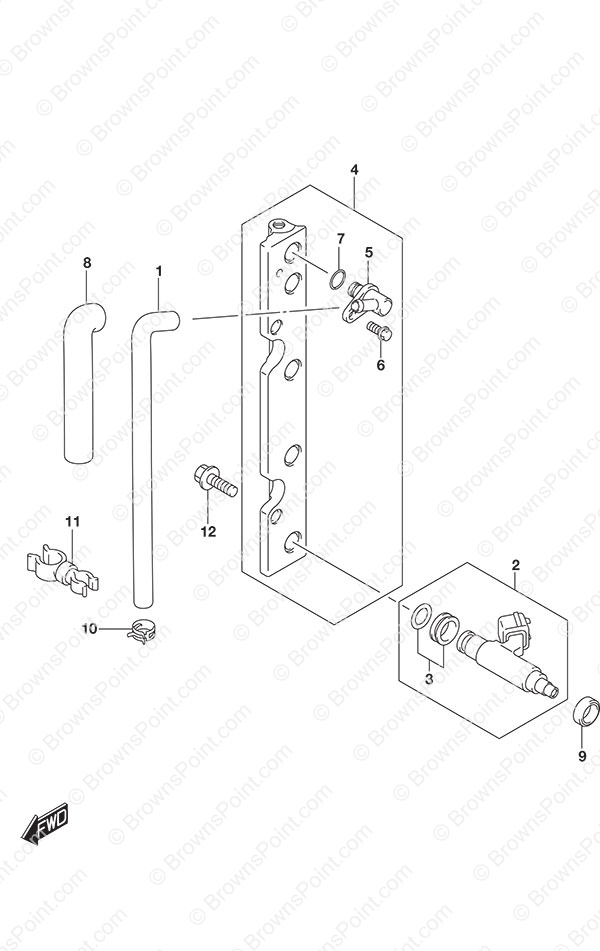

Fig. 144 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15681-92J01 HOSE,FUEL(SEPAR
SKU: 15681-92J01 Weight: 0.000000 Brand: Price: $ 18.26 |
HOSE,FUEL(SEPAR | 1 | $ 18.26 | Vapor Separator to Delivery Pipe | |
| 2 | 15710-82K50 Fuel Injector
SKU: 15710-82K50 Weight: 0.250000 Brand: Price: $ 220.53 |
Fuel Injector | 4 | $ 220.53 | ||
| 3 | 15716-65DT0 Grommet Set
SKU: 15716-65DT0 Weight: 0.060000 Brand: Price: $ 19.06 |
Grommet Set | 4 | $ 19.06 | ||
| 4 | 15750-87L30 Delivery Pipe
SKU: 15750-87L30 Weight: 1.000000 Brand: Price: $ 185.28 |
Delivery Pipe | 1 | $ 185.28 | ||
| 5 | 15830-87L30 Fuel Main Joint
SKU: 15830-87L30 Weight: 0.250000 Brand: Price: $ 29.43 |
Fuel Main Joint | 1 | $ 29.43 | ||
| 6 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 7 | 09280-08012 O-Ring
SKU: 09280-08012 Weight: 0.100000 Brand: Price: $ 3.73 |
O-Ring | 1 | $ 3.73 | ||
| 8 | 18498-87J51 Fuel Hose Protector
SKU: 18498-87J51 Weight: 0.060000 Brand: Price: $ 5.94 |
Fuel Hose Protector | 1 | $ 5.94 | L:450->160 | |
| 9 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 10 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 2 | $ 3.46 | ||
| 11 | 09408-00233 Clamp (NLA)
SKU: 09408-00233 Weight: 0.100000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 12 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
