Suzuki DF 30A Parts Listings - 2022
S/N 03003F-240001 to 03003F-24XXXX

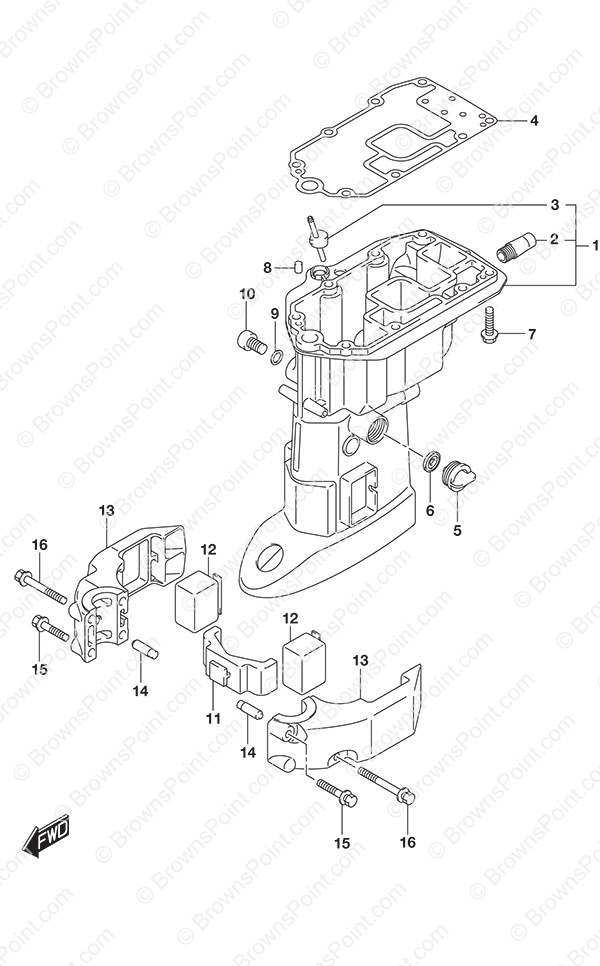

Fig. 405 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52110-94L01-YAY Drive Shaft Housing (S)
SKU: 52110-94L01-YAY Weight: 10.000000 Brand: Price: $ 316.93 |
Drive Shaft Housing (S) | 1 | $ 316.93 | w/Transom (S) Black | |
| 1-2 | 52110-94L01-Y5S Drive Shaft Housing (S)
SKU: 52110-94L01-Y5S Weight: 10.000000 Brand: Price: $ 316.93 |
Drive Shaft Housing (S) | 1 | $ 316.93 | w/Transom (S) White | |
| 1-3 | 52110-94L11-YAY Drive Shaft Housing (L)
SKU: 52110-94L11-YAY Weight: 10.000000 Brand: Price: $ 560.51 |
Drive Shaft Housing (L) | 1 | $ 560.51 | w/Transom (L) Black | |
| 1-4 | 52110-94L11-Y5S Drive Shaft Housing (L)
SKU: 52110-94L11-Y5S Weight: 10.000000 Brand: Price: $ 560.51 |
Drive Shaft Housing (L) | 1 | $ 560.51 | w/Transom (L) White | |
| 2 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 3 | 61155-94L00 Water Inspection Tube
SKU: 61155-94L00 Weight: 0.125000 Brand: Price: $ 8.95 |
Water Inspection Tube | 1 | $ 8.95 | ||
| 4 | 52113-94L00 Drive Shaft Housing Gasket
SKU: 52113-94L00 Weight: 0.100000 Brand: Price: $ 20.96 |
Drive Shaft Housing Gasket | 1 | $ 20.96 | ||
| 5 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 6 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 7 | 09116-08151 Bolt (8x30)
SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 8 | $ 2.18 | ||
| 8 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 9 | 09168-12017 Gasket (12x17x1)
SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 1 | $ 1.97 | ||
| 10 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 11 | 54151-94L00 Lower Thrust Mount
SKU: 54151-94L00 Weight: 0.250000 Brand: Price: $ 7.80 |
Lower Thrust Mount | 1 | $ 7.80 | ||
| 12 | 54167-94L00 Lower Side Mount
SKU: 54167-94L00 Weight: 0.500000 Brand: Price: $ 8.03 |
Lower Side Mount | 2 | $ 8.03 | ||
| 13-1 | 54211-94L00-YAY Lower Mount Cover
SKU: 54211-94L00-YAY Weight: 0.500000 Brand: Price: $ 98.72 |
Lower Mount Cover | 2 | $ 98.72 | Black | |
| 14 | 54213-93901 Knock Pin
SKU: 54213-93901 Weight: 0.060000 Brand: Price: $ 8.19 |
Knock Pin | 2 | $ 8.19 | ||
| 15 | 09116-08154 Bolt (8x40)
SKU: 09116-08154 Weight: 0.250000 Brand: Price: $ 4.65 |
Bolt (8x40) | 2 | $ 4.65 | ||
| 16 | 09116-08162 Bolt (8x65)
SKU: 09116-08162 Weight: 0.200000 Brand: Price: $ 9.42 |
Bolt (8x65) | 2 | $ 9.42 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
