Suzuki DF 25A Parts Listings - 2022
S/N 02504F-240001 to 02504F-24XXXX

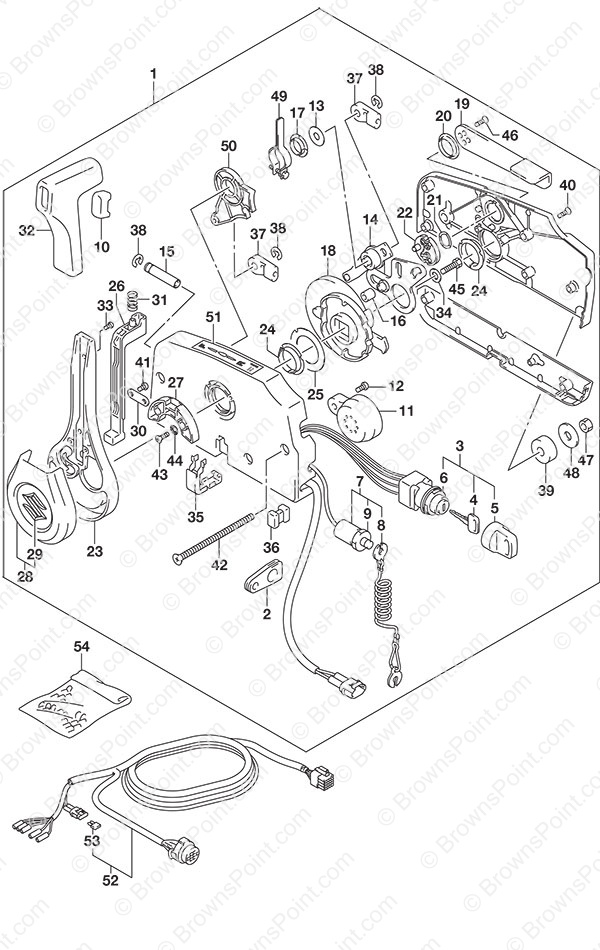

Fig. 508A - Opt: Remote Control Non-Remote Control wo/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-94J30 Side Mount Control Box
SKU: 67200-94J30 Weight: 8.000000 Brand: Price: $ 439.95 |
Side Mount Control Box | 1 | $ 439.95 | ||
| 2 | 36628-91J00 Wire Harness Grommet
SKU: 36628-91J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Wire Harness Grommet | 1 | $ 0.00 | ||
| 3 | 37110-94J02 Igntion Switch Assembly
SKU: 37110-94J02 Weight: 0.500000 Brand: Price: $ 108.20 |
Igntion Switch Assembly | 1 | $ 108.20 | ||
| 4-1 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 2 | $ 15.38 | ||
| 4-2 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 2 | $ 15.38 | ||
| 4-3 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 2 | $ 15.38 | ||
| 4-4 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 2 | $ 15.38 | ||
| 4-5 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 2 | $ 15.38 | ||
| 4-6 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 2 | $ 15.38 | ||
| 4-7 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 2 | $ 15.38 | ||
| 4-8 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 2 | $ 15.38 | ||
| 4-9 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 2 | $ 15.38 | ||
| 4-10 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 2 | $ 15.38 | ||
| 4-11 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 2 | $ 15.38 | ||
| 4-12 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 2 | $ 15.38 | ||
| 5 | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 2 | $ 6.09 | ||
| 6 | 37149-93J00 Cylinder Body Cap
SKU: 37149-93J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Cylinder Body Cap | 1 | $ 8.50 | ||
| 7 | 37820-93J11 Emergency Stop Switch Assembly
SKU: 37820-93J11 Weight: 0.250000 Brand: Price: $ 42.37 |
Emergency Stop Switch Assembly | 1 | $ 42.37 | ||
| 8 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 9 | 37826-92J10 Nut
SKU: 37826-92J10 Weight: 0.060000 Brand: Price: $ 4.18 |
Nut | 1 | $ 4.18 | ||
| 10 | 67263-88L30 Switch Hole Grip Cap
SKU: 67263-88L30 Weight: 0.060000 Brand: Price: $ 9.75 |
Switch Hole Grip Cap | 1 | $ 9.75 | ||
| 11 | 38500-93J00 Warning Buzzer*
SKU: 38500-93J00 Weight: 0.140000 Brand: Price: $ 67.48 |
Warning Buzzer* | 1 | $ 67.48 | ||
| 12 | 67214-92E00 Screw (5x10)
SKU: 67214-92E00 Weight: 0.125000 Brand: Price: $ 0.00 |
Screw (5x10) | 1 | $ 0.00 | ||
| 13 | 67212-95600 Washer (NLA)
SKU: 67212-95600 Weight: 0.100000 Brand: Price: $ 2.03 |
Washer (NLA) | 1 | $ 2.03 | ||
| 14 | 67220-95630 Plate Assembly
SKU: 67220-95630 Weight: 0.420000 Brand: Price: $ 96.86 |
Plate Assembly | 1 | $ 96.86 | ||
| 15 | 67223-99E10 Brake Adjustment Knob
SKU: 67223-99E10 Weight: 0.060000 Brand: Price: $ 9.12 |
Brake Adjustment Knob | 1 | $ 9.12 | ||
| 16 | 67229-95600 Roller (NLA)
SKU: 67229-95600 Weight: 0.100000 Brand: Price: $ 3.82 |
Roller (NLA) | 1 | $ 3.82 | ||
| 17 | 67232-95600 Bushing
SKU: 67232-95600 Weight: 0.100000 Brand: Price: $ 6.50 |
Bushing | 1 | $ 6.50 | ||
| 18 | 67238-87D00 Drive Gear
SKU: 67238-87D00 Weight: 0.100000 Brand: Price: $ 48.50 |
Drive Gear | 1 | $ 48.50 | ||
| 19 | 67241-99E11 Free Throttle Lever
SKU: 67241-99E11 Weight: 0.250000 Brand: Price: $ 15.09 |
Free Throttle Lever | 1 | $ 15.09 | ||
| 20 | 67243-95600 Bushing (NLA)
SKU: 67243-95600 Weight: 0.060000 Brand: Price: $ 3.16 |
Bushing (NLA) | 1 | $ 3.16 | ||
| 21 | 67244-95600 Wave Washer (NLA)
SKU: 67244-95600 Weight: 0.100000 Brand: Price: $ 2.19 |
Wave Washer (NLA) | 1 | $ 2.19 | ||
| 22 | 67245-95600 Free Throttle Drum (NLA)
SKU: 67245-95600 Weight: 0.100000 Brand: Price: $ 14.51 |
Free Throttle Drum (NLA) | 1 | $ 14.51 | ||
| 23 | 67251-96L00 Handle Lever
SKU: 67251-96L00 Weight: 1.000000 Brand: Price: $ 54.15 |
Handle Lever | 1 | $ 54.15 | ||
| 24 | 67252-95600 Bushing
SKU: 67252-95600 Weight: 0.060000 Brand: Price: $ 5.10 |
Bushing | 2 | $ 5.10 | ||
| 25 | 67253-95600 Washer (NLA)
SKU: 67253-95600 Weight: 0.100000 Brand: Price: $ 2.64 |
Washer (NLA) | 1 | $ 2.64 | ||
| 26 | 67255-96L00 Neutral Lock Arm
SKU: 67255-96L00 Weight: 0.250000 Brand: Price: $ 7.40 |
Neutral Lock Arm | 1 | $ 7.40 | ||
| 27 | 67256-95600 Neutral Lock Holder
SKU: 67256-95600 Weight: 0.060000 Brand: Price: $ 10.73 |
Neutral Lock Holder | 1 | $ 10.73 | ||
| 28 | 67257-96L00 Lever Cap
SKU: 67257-96L00 Weight: 0.250000 Brand: Price: $ 15.28 |
Lever Cap | 1 | $ 15.28 | ||
| 29 | 77811-54GB0-0PG Chrome S Emblem
SKU: 77811-54GB0-0PG Weight: 0.250000 Brand: Price: $ 13.29 |
Chrome S Emblem | 1 | $ 13.29 | ||
| 30 | 67258-99E00 Neutral Arm Bracket
SKU: 67258-99E00 Weight: 0.100000 Brand: Price: $ 5.38 |
Neutral Arm Bracket | 1 | $ 5.38 | ||
| 31 | 67259-87D00 Neutral Arm Spring (NLA)
SKU: 67259-87D00 Weight: 0.060000 Brand: Price: $ 4.38 |
Neutral Arm Spring (NLA) | 1 | $ 4.38 | ||
| 32 | 67251-96L00 Handle Lever
SKU: 67251-96L00 Weight: 1.000000 Brand: Price: $ 54.15 |
Handle Lever | 1 | $ 54.15 | ||
| 33 | 67296-96L10 Screw
SKU: 67296-96L10 Weight: 0.060000 Brand: Price: $ 0.00 |
Screw | 2 | $ 0.00 | ||
| 34 | 67264-95600 Washer (NLA)
SKU: 67264-95600 Weight: 0.100000 Brand: Price: $ 2.10 |
Washer (NLA) | 1 | $ 2.10 | ||
| 35 | 67267-96L00 Wire Cover
SKU: 67267-96L00 Weight: 0.250000 Brand: Price: $ 3.83 |
Wire Cover | 1 | $ 3.83 | ||
| 36 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 37 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 38 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 3 | $ 1.22 | ||
| 39 | 67294-95600 Spacer
SKU: 67294-95600 Weight: 0.060000 Brand: Price: $ 4.67 |
Spacer | 3 | $ 4.67 | ||
| 40 | 67296-90J20 Screw
SKU: 67296-90J20 Weight: 0.060000 Brand: Price: $ 0.00 |
Screw | 5 | $ 0.00 | ||
| 41 | 67296-96L00 Screw
SKU: 67296-96L00 Weight: 0.060000 Brand: Price: $ 0.00 |
Screw | 2 | $ 0.00 | ||
| 42 | 67296-95630 Screw
SKU: 67296-95630 Weight: 0.060000 Brand: Price: $ 4.57 |
Screw | 3 | $ 4.57 | ||
| 43 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 2 | $ 2.85 | ||
| 44 | 67297-95600 Washer
SKU: 67297-95600 Weight: 0.060000 Brand: Price: $ 2.96 |
Washer | 2 | $ 2.96 | ||
| 45 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 46 | 67269-96L10 Screw (5x12)
SKU: 67269-96L10 Weight: 0.060000 Brand: Price: $ 0.00 |
Screw (5x12) | 2 | $ 0.00 | ||
| 47 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 48 | 67288-94320 Washer (6.5x24x2)
SKU: 67288-94320 Weight: 0.060000 Brand: Price: $ 1.75 |
Washer (6.5x24x2) | 3 | $ 1.75 | ||
| 49 | 67224-96L00 Brake Arm
SKU: 67224-96L00 Weight: 0.200000 Brand: Price: $ 11.95 |
Brake Arm | 1 | $ 11.95 | ||
| 50 | 67238-96L00 Shift Gear
SKU: 67238-96L00 Weight: 0.200000 Brand: Price: $ 26.29 |
Shift Gear | 1 | $ 26.29 | ||
| 51 | 67284-94L10 Handle Lever Mark
SKU: 67284-94L10 Weight: 0.200000 Brand: Price: $ 5.08 |
Handle Lever Mark | 1 | $ 5.08 | ||
| 52 | 36620-94L01 Wiring Harness
SKU: 36620-94L01 Weight: 5.000000 Brand: Price: $ 328.82 |
Wiring Harness | 1 | $ 328.82 | ||
| 53 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 54 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
