Suzuki DF 25A Parts Listings - 2022
S/N 02504F-240001 to 02504F-24XXXX

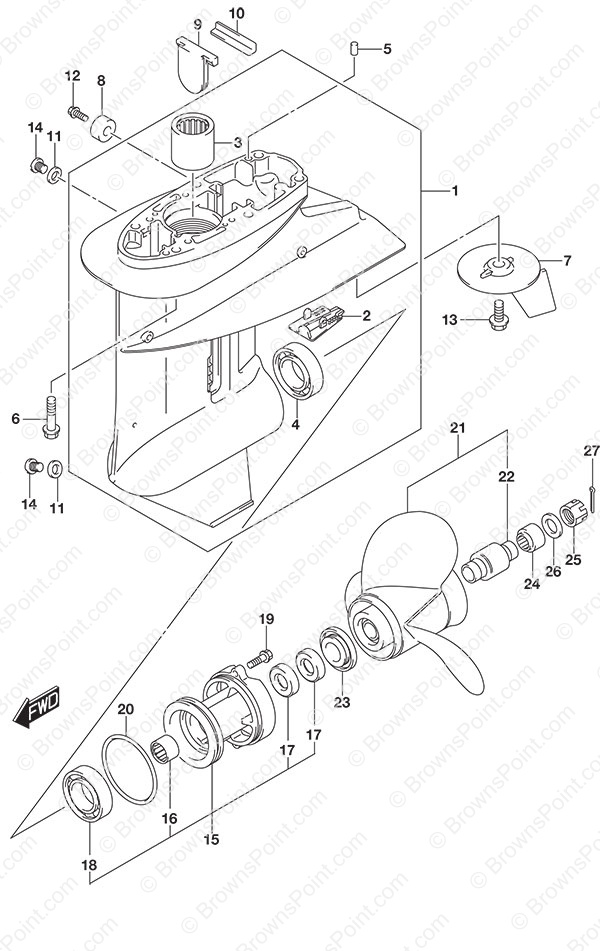

Fig. 407A - Gear Case Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-94L00-YAY Gear Case Assembly
SKU: 55100-94L00-YAY Weight: 10.000000 Brand: Price: $ 430.58 |
Gear Case Assembly | 1 | $ 430.58 | ||
| 2 | 55114-963L0 Gear Case Under Cover
SKU: 55114-963L0 Weight: 0.200000 Brand: Price: $ 12.64 |
Gear Case Under Cover | 1 | $ 12.64 | ||
| 3 | 09263-20046 Bearing (20.6x27x25.4)
SKU: 09263-20046 Weight: 0.100000 Brand: Price: $ 70.16 |
Bearing (20.6x27x25.4) | 1 | $ 70.16 | ||
| 4 | 09265-25047 Bearing (25x52x16.25)
SKU: 09265-25047 Weight: 0.250000 Brand: Price: $ 71.15 |
Bearing (25x52x16.25) | 1 | $ 71.15 | ||
| 5 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 6 | 09116-08154 Bolt (8x40)
SKU: 09116-08154 Weight: 0.250000 Brand: Price: $ 4.65 |
Bolt (8x40) | 6 | $ 4.65 | ||
| 7 | 55125-96310 Trim Tab Anode
SKU: 55125-96310 Weight: 0.300000 Brand: Price: $ 12.28 |
Trim Tab Anode | 1 | $ 12.28 | ||
| 8 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 9 | 55332-94L00 Exhaust Seal Rubber
SKU: 55332-94L00 Weight: 0.200000 Brand: Price: $ 5.48 |
Exhaust Seal Rubber | 1 | $ 5.48 | ||
| 10 | 55333-94L10 Exhaust Seal Plate
SKU: 55333-94L10 Weight: 0.060000 Brand: Price: $ 9.87 |
Exhaust Seal Plate | 1 | $ 9.87 | ||
| 11 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 2 | $ 2.03 | ||
| 12 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 13 | 09116-08147 Bolt (8x16)
SKU: 09116-08147 Weight: 0.125000 Brand: Price: $ 6.80 |
Bolt (8x16) | 1 | $ 6.80 | ||
| 14 | 09248-08001 Drain Plug
SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.46 |
Drain Plug | 2 | $ 2.46 | ||
| 15 | 56120-91L11-YAY Propeller Shaft Bearing Housing
SKU: 56120-91L11-YAY Weight: 2.000000 Brand: Price: $ 92.88 |
Propeller Shaft Bearing Housing | 1 | $ 92.88 | ||
| 16 | 09263-20047 Bearing (20x26x20)
SKU: 09263-20047 Weight: 0.080000 Brand: Price: $ 16.93 |
Bearing (20x26x20) | 1 | $ 16.93 | ||
| 17 | 09289-20L01 Oil Seal
SKU: 09289-20L01 Weight: 0.060000 Brand: Price: $ 13.82 |
Oil Seal | 2 | $ 13.82 | ||
| 18 | 08113-60060 B1 30X55X13 BEA
SKU: 08113-60060 Weight: 0.250000 Brand: Price: $ 24.61 |
B1 30X55X13 BEA | 1 | $ 24.61 | ||
| 19 | 09116-06229 Bolt (6x25)
SKU: 09116-06229 Weight: 0.250000 Brand: Price: $ 2.38 |
Bolt (6x25) | 2 | $ 2.38 | ||
| 20 | 09280-75002 O-Ring
SKU: 09280-75002 Weight: 0.060000 Brand: Price: $ 2.81 |
O-Ring | 1 | $ 2.81 | ||
| 21-1 | 58100-91L40-019 P1001 Propeller 3x10-1/4x10
SKU: 58100-91L40-019 Weight: 8.000000 Brand: Price: $ 166.96 |
P1001 Propeller 3x10-1/4x10 | 1 | $ 166.96 | ||
| 21-2 | 58100-91L50-019 P1101 Propeller 3x10-1/4x11
SKU: 58100-91L50-019 Weight: 3.250000 Brand: Price: $ 194.80 |
P1101 Propeller 3x10-1/4x11 | 1 | $ 194.80 | ||
| 21-3 | 58100-91L20-019 P1201 Propeller 3x10-1/4x12
SKU: 58100-91L20-019 Weight: 3.000000 Brand: Price: $ 196.12 |
P1201 Propeller 3x10-1/4x12 | 1 | $ 196.12 | ||
| 21-4 | 58100-91L30-019 P1301 Propeller 3x10-1/4x13
SKU: 58100-91L30-019 Weight: 8.000000 Brand: Price: $ 166.24 |
P1301 Propeller 3x10-1/4x13 | 1 | $ 166.24 | ||
| 21-5 | 58100-95D01-019 P1401 Propeller 3x10-1/4x14
SKU: 58100-95D01-019 Weight: 2.600000 Brand: Price: $ 194.80 |
P1401 Propeller 3x10-1/4x14 | 1 | $ 194.80 | ||
| 21-6 | 58100-96372-019 P911 Propeller 3x10-1/4x9
SKU: 58100-96372-019 Weight: 8.000000 Brand: Price: $ 216.93 |
P911 Propeller 3x10-1/4x9 | 1 | $ 216.93 | ||
| 21-7 | 58100-96472-019 P1001 Propeller 3x10-1/4x10
SKU: 58100-96472-019 Weight: 4.000000 Brand: Price: $ 194.80 |
P1001 Propeller 3x10-1/4x10 | 1 | $ 194.80 | ||
| 21-8 | 58100-96482-019 P1201 Propeller 3x10-1/4x12
SKU: 58100-96482-019 Weight: 2.880000 Brand: Price: $ 194.80 |
P1201 Propeller 3x10-1/4x12 | 1 | $ 194.80 | ||
| 21-9 | 58100-96492-019 P1311 Propeller 3x10-1/4x13
SKU: 58100-96492-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1311 Propeller 3x10-1/4x13 | 1 | $ 194.80 | ||
| 21-10 | 58100-96462-019 P1501 Propeller 3x10-1/4x15
SKU: 58100-96462-019 Weight: 3.000000 Brand: Price: $ 194.80 |
P1501 Propeller 3x10-1/4x15 | 1 | $ 194.80 | ||
| 22 | 58120-96401 Type P Propeller Bushing
SKU: 58120-96401 Weight: 0.300000 Brand: Price: $ 45.01 |
Type P Propeller Bushing | 1 | $ 45.01 | ||
| 23 | 57632-91L00 Propeller Bushing Stopper
SKU: 57632-91L00 Weight: 0.250000 Brand: Price: $ 28.08 |
Propeller Bushing Stopper | 1 | $ 28.08 | ||
| 24 | 57633-96300 Propeller Nut Spacer
SKU: 57633-96300 Weight: 0.180000 Brand: Price: $ 20.17 |
Propeller Nut Spacer | 1 | $ 20.17 | ||
| 25 | 09141-14008 Nut 14mm
SKU: 09141-14008 Weight: 0.060000 Brand: Price: $ 10.70 |
Nut 14mm | 1 | $ 10.70 | ||
| 26 | 09160-14028 Propeller Nut Washer
SKU: 09160-14028 Weight: 0.060000 Brand: Price: $ 3.14 |
Propeller Nut Washer | 1 | $ 3.14 | ||
| 27 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
