Suzuki DF 25A Parts Listings - 2021
S/N 02504F-140001 to 02504F-14XXXX

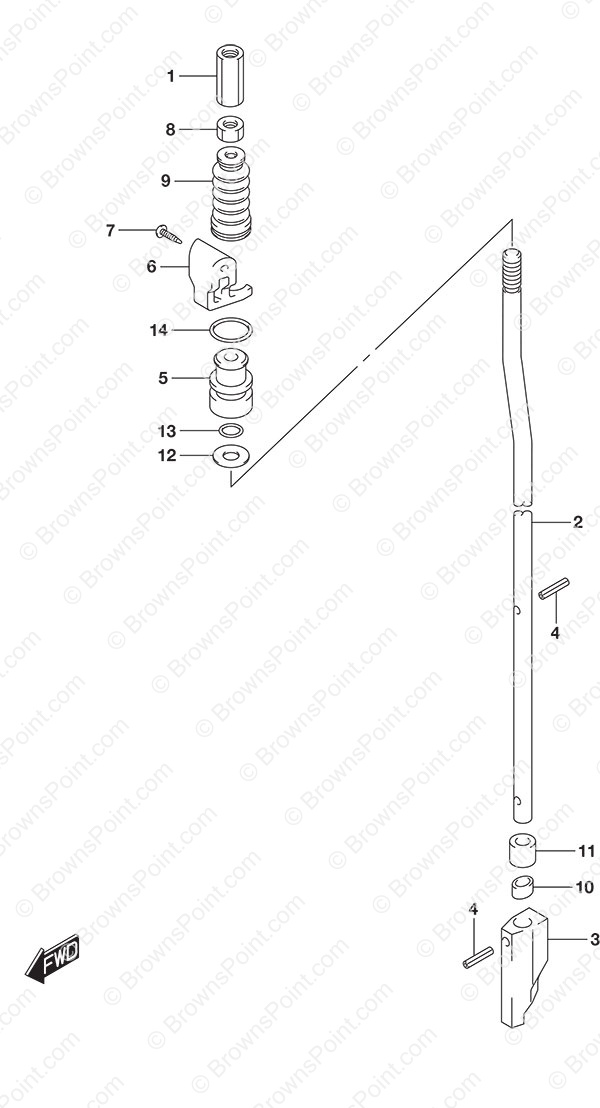

Fig. 210 - Shift Rod

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 23311-95J00 Clutch Rod Connector 1 $ 7.09
2 25111-94L00 Shift Rod 1 $ 11.83
3 25311-94L00 Shift Cam 1 $ 19.77
4 09205-02004 Spring Pin (2.5x12) 2 $ 0.92
5 25211-94L00 Shift Rod Guide 1 $ 9.74
6 25215-94L00 Shift Rod Guide Stopper 1 $ 6.46
7 03142-0416C Screw 2 $ 0.00
8 29141-93J00 Nut (6mm) 1 $ 1.80
9 25222-94L00 Shift Rod Boot 1 $ 12.64
10 25231-96301 Magnet Spacer (NLA) 1 $ 1.19

Not Available

11 25232-96302 Gear Case Magnet 1 $ 5.83
12 09160-06082 Washer (6.5x13x1.0) 1 $ 1.44
13 09280-06012 O-Ring 1 $ 2.18
14 09280-13005 O-Ring 1 $ 1.86

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
