Suzuki DF 2.5 Parts Listings - 2013
S/N 00252F-310001 to 00252F-31XXXX

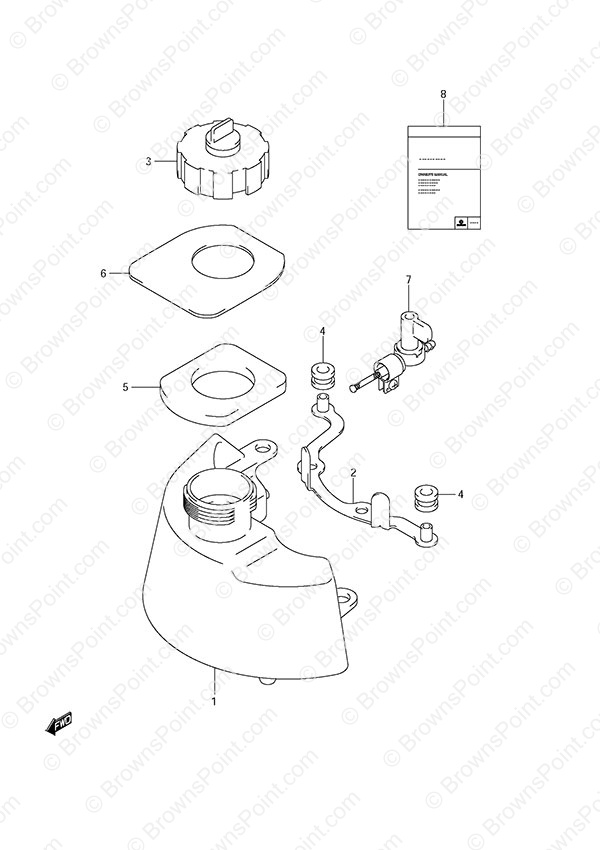

Fig. 21 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65110-97J11 Fuel Tank
SKU: 65110-97J11 Weight: 1.000000 Brand: Price: $ 64.57 |
Fuel Tank | 1 | $ 64.57 | ||
| 2 | 65260-97J00 Fuel Tank Bracket (NLA)
SKU: 65260-97J00 Weight: 0.100000 Brand: Price: $ 27.24 |
Fuel Tank Bracket (NLA) | 1 | $ 27.24 | ||
| 3 | 65510-97J00 Fuel Tank Cap Assembly
SKU: 65510-97J00 Weight: 0.250000 Brand: Price: $ 36.52 |
Fuel Tank Cap Assembly | 1 | $ 36.52 | ||
| 4 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 5 | 65281-97J10 Replaced by 65281-97J11
SKU: 65281-97J10 Weight: 0.120000 Brand: Price: $ 2.60 |
Replaced by 65281-97J11 | 1 | $ 2.60 | ||
| 6 | 65284-97J11 Fuel Tank Grommet Rubber
SKU: 65284-97J11 Weight: 0.060000 Brand: Price: $ 7.68 |
Fuel Tank Grommet Rubber | 1 | $ 7.68 | ||
| 7 | 66100-97JL0 Replaced by 66100-97JL1
SKU: 66100-97JL0 Weight: 0.120000 Brand: Price: $ 34.52 |
Replaced by 66100-97JL1 | 1 | $ 34.52 | ||
| 8 | 99011-97J11-03B Owners Manual DF 2.5 - 2013
SKU: 99011-97J11-03B Weight: 0.500000 Brand: Price: $ 20.00 |
Owners Manual DF 2.5 - 2013 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
