Suzuki DF 2.5 Parts Listings - 2013
S/N 00252F-310001 to 00252F-31XXXX

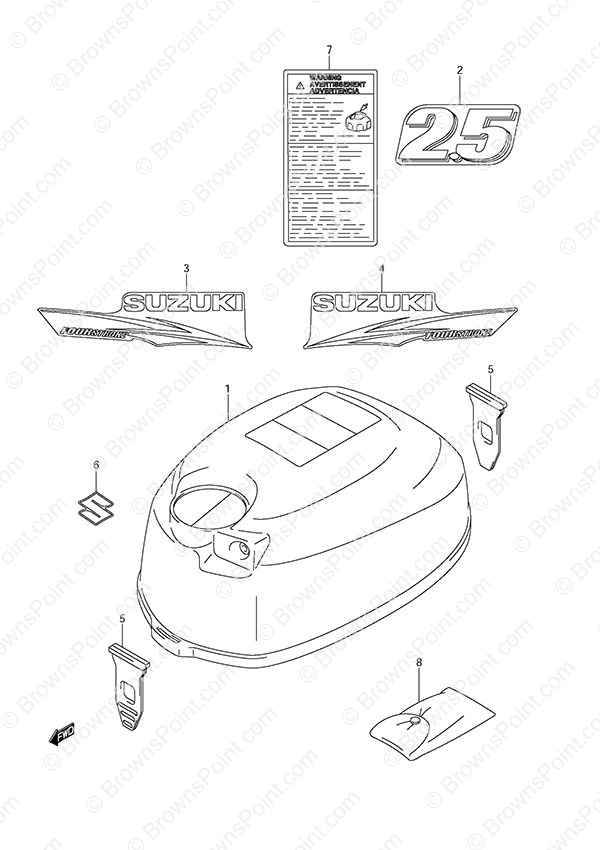

Fig. 19 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61411-97J10-YR9 Upper Engine Cover
SKU: 61411-97J10-YR9 Weight: 0.100000 Brand: Price: $ 215.28 |
Upper Engine Cover | 1 | $ 215.28 | ||
| 2 | 61435-97J30 Rear Emblem Mark (2.5)
SKU: 61435-97J30 Weight: 0.060000 Brand: Price: $ 5.90 |
Rear Emblem Mark (2.5) | 1 | $ 5.90 | ||
| 3 | 61443-97J20 Engine Cover Stripe - Starboard
SKU: 61443-97J20 Weight: 0.125000 Brand: Price: $ 16.40 |
Engine Cover Stripe - Starboard | 1 | $ 16.40 | ||
| 4 | 61453-97J20 Engine Cover Stripe - Port
SKU: 61453-97J20 Weight: 0.125000 Brand: Price: $ 16.40 |
Engine Cover Stripe - Port | 1 | $ 16.40 | ||
| 5 | 61611-97J01 Engine Cover Fastener
SKU: 61611-97J01 Weight: 0.060000 Brand: Price: $ 2.36 |
Engine Cover Fastener | 2 | $ 2.36 | ||
| 6 | 68111-99J00 S Emblem
SKU: 68111-99J00 Weight: 0.100000 Brand: Price: $ 5.37 |
S Emblem | 1 | $ 5.37 | ||
| 7 | 61458-97J10 Engine Cover Label
SKU: 61458-97J10 Weight: 0.125000 Brand: Price: $ 13.74 |
Engine Cover Label | 1 | $ 13.74 | ||
| 8 | 09800-01017 Tool Set
SKU: 09800-01017 Weight: 1.000000 Brand: Price: $ 28.28 |
Tool Set | 1 | $ 28.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
