Suzuki DF 2.5 Parts Listings - 2013
S/N 00252F-310001 to 00252F-31XXXX

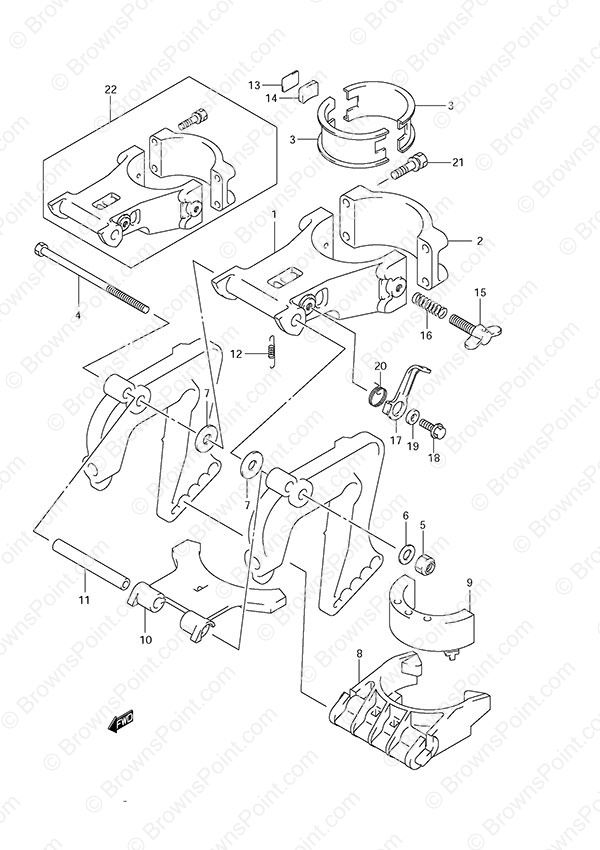

Fig. 15 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-97J31-0EP Swivel Bracket
SKU: 43111-97J31-0EP Weight: 2.000000 Brand: Price: $ 48.05 |
Swivel Bracket | 1 | $ 48.05 | ||
| 2 | 43121-97J30-0EP Swivel Bracket Cover
SKU: 43121-97J30-0EP Weight: 1.000000 Brand: Price: $ 40.48 |
Swivel Bracket Cover | 1 | $ 40.48 | ||
| 3 | 43711-97J00 Steering Bushing
SKU: 43711-97J00 Weight: 0.060000 Brand: Price: $ 10.88 |
Steering Bushing | 2 | $ 10.88 | ||
| 4 | 59111-97JL0 Swivel Shaft Bolt
SKU: 59111-97JL0 Weight: 0.100000 Brand: Price: $ 16.07 |
Swivel Shaft Bolt | 1 | $ 16.07 | ||
| 5 | 09159-08018 Nut (8mm) (NLA)
SKU: 09159-08018 Weight: 0.200000 Brand: Price: $ 2.08 |
Nut (8mm) (NLA) | 1 | $ 2.08 | ||
| 6 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 7 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 2 | $ 2.68 | ||
| 8 | 45411-97J30 Thrust Block
SKU: 45411-97J30 Weight: 0.250000 Brand: Price: $ 26.24 |
Thrust Block | 1 | $ 26.24 | ||
| 9 | 54151-97JL0 Lower Thrust Mount
SKU: 54151-97JL0 Weight: 0.800000 Brand: Price: $ 13.34 |
Lower Thrust Mount | 1 | $ 13.34 | ||
| 10 | 43751-97J01 Swivel Stopper Bracket
SKU: 43751-97J01 Weight: 0.100000 Brand: Price: $ 20.43 |
Swivel Stopper Bracket | 1 | $ 20.43 | ||
| 11 | 43752-97J00 Shaft Stopper (NLA)
SKU: 43752-97J00 Weight: 10.000000 Brand: Price: $ 9.02 |
Shaft Stopper (NLA) | 1 | $ 9.02 | ||
| 12 | 59443-97J00 Spring Stopper
SKU: 59443-97J00 Weight: 0.100000 Brand: Price: $ 3.00 |
Spring Stopper | 1 | $ 3.00 | ||
| 13 | 43415-97J10 Steering Adjuster Plate (NLA)
SKU: 43415-97J10 Weight: 0.187500 Brand: Price: $ 2.70 |
Steering Adjuster Plate (NLA) | 1 | $ 2.70 | ||
| 14 | 43430-97L00 Steering Adjuster Rubber
SKU: 43430-97L00 Weight: 0.060000 Brand: Price: $ 5.50 |
Steering Adjuster Rubber | 1 | $ 5.50 | ||
| 15 | 09119-06130 Bolt
SKU: 09119-06130 Weight: 0.060000 Brand: Price: $ 7.04 |
Bolt | 1 | $ 7.04 | ||
| 16 | 09440-09042 Spring
SKU: 09440-09042 Weight: 0.100000 Brand: Price: $ 1.57 |
Spring | 1 | $ 1.57 | ||
| 17 | 41221-97JL0 Tilt Lock Lever
SKU: 41221-97JL0 Weight: 0.060000 Brand: Price: $ 11.53 |
Tilt Lock Lever | 1 | $ 11.53 | ||
| 18 | 09116-06224 Bolt (6x12)
SKU: 09116-06224 Weight: 0.250000 Brand: Price: $ 2.77 |
Bolt (6x12) | 1 | $ 2.77 | ||
| 19 | 59181-97J10 Tilt Lock Lever Spacer
SKU: 59181-97J10 Weight: 0.060000 Brand: Price: $ 5.91 |
Tilt Lock Lever Spacer | 1 | $ 5.91 | ||
| 20 | 59444-97J10 Tilt Lock Spring
SKU: 59444-97J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Tilt Lock Spring | 1 | $ 2.90 | ||
| 21 | 09116-06232 Bolt (6x30)
SKU: 09116-06232 Weight: 0.125000 Brand: Price: $ 2.39 |
Bolt (6x30) | 4 | $ 2.39 | ||
| 22 | 43110-97J31-0EP Swivel Bracket Assembly (Black)
SKU: 43110-97J31-0EP Weight: 1.000000 Brand: Price: $ 69.49 |
Swivel Bracket Assembly (Black) | 1 | $ 69.49 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
