Suzuki DF 200 Parts Listings 2004 to 2009

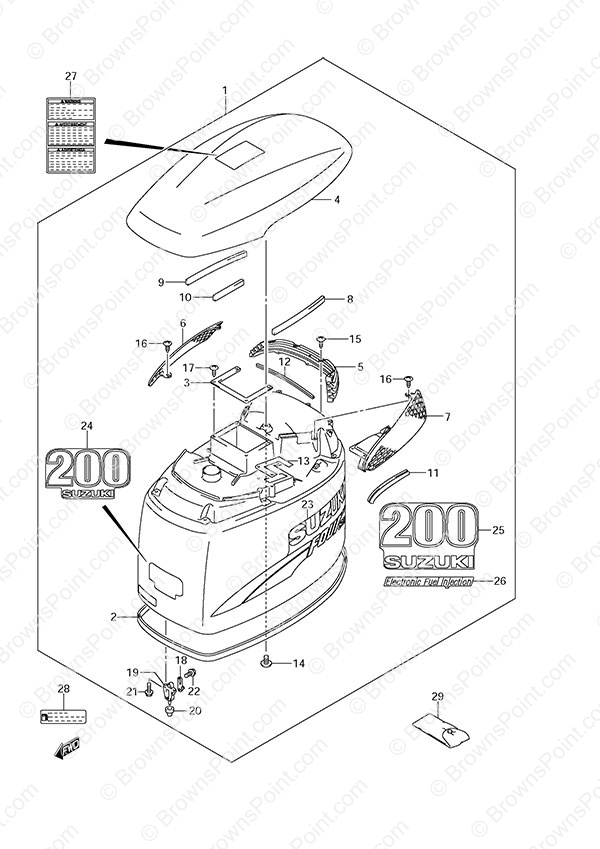

Fig. 52 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61430-93840-0EP Engine Cover
SKU: 61430-93840-0EP Weight: 50.000000 Brand: Price: $ 1,588.52 |
Engine Cover | 1 | $ 1,588.52 | ||
| 2 | 61112-93J20 Engine Cover Rubber
SKU: 61112-93J20 Weight: 1.500000 Brand: Price: $ 136.66 |
Engine Cover Rubber | 1 | $ 136.66 | ||
| 3 | 61416-93J00 Air Intake Guard
SKU: 61416-93J00 Weight: 0.100000 Brand: Price: $ 11.38 |
Air Intake Guard | 1 | $ 11.38 | ||
| 4-1 | 61431-93J03-0EP Tilt Up Handle
SKU: 61431-93J03-0EP Weight: 2.000000 Brand: Price: $ 438.48 |
Tilt Up Handle | 1 | $ 438.48 | Requires Ref# 30 31 | |
| 4-2 | 61431-93J03-0EP Tilt Up Handle
SKU: 61431-93J03-0EP Weight: 2.000000 Brand: Price: $ 438.48 |
Tilt Up Handle | 1 | $ 438.48 | DF200T: S/N 680070 Newer DF200Z: S/N 680012 Newer | |
| 4-3 | 61431-93J03-0EP Tilt Up Handle
SKU: 61431-93J03-0EP Weight: 2.000000 Brand: Price: $ 438.48 |
Tilt Up Handle | 1 | $ 438.48 | 2007 to 2009 | |
| 5 | 61432-93J01 Tilt Up Handle Louver
SKU: 61432-93J01 Weight: 2.000000 Brand: Price: $ 37.28 |
Tilt Up Handle Louver | 1 | $ 37.28 | ||
| 6 | 61433-93J01 Air Intake Inner Starboard Cover
SKU: 61433-93J01 Weight: 1.000000 Brand: Price: $ 28.76 |
Air Intake Inner Starboard Cover | 1 | $ 28.76 | ||
| 7 | 61434-93J01 Air Intake Inner Port Cover
SKU: 61434-93J01 Weight: 0.200000 Brand: Price: $ 28.76 |
Air Intake Inner Port Cover | 1 | $ 28.76 | ||
| 8 | 61438-93J00 Tilt Up Handle Tape (NLA)
SKU: 61438-93J00 Weight: 0.100000 Brand: Price: $ 8.95 |
Tilt Up Handle Tape (NLA) | 1 | $ 8.95 | ||
| 9 | 61438-93J10 Tilt Up Handle Tape (NLA)
SKU: 61438-93J10 Weight: 0.100000 Brand: Price: $ 6.70 |
Tilt Up Handle Tape (NLA) | 1 | $ 6.70 | ||
| 10 | 61438-93J20 Tilt Up Handle Tape (NLA)
SKU: 61438-93J20 Weight: 0.100000 Brand: Price: $ 4.02 |
Tilt Up Handle Tape (NLA) | 1 | $ 4.02 | ||
| 11 | 61439-93J20 Tilt Up Handle Port Seal
SKU: 61439-93J20 Weight: 0.100000 Brand: Price: $ 11.62 |
Tilt Up Handle Port Seal | 1 | $ 11.62 | ||
| 12 | 61439-93J41 Tilt Up Handle Rear Seal
SKU: 61439-93J41 Weight: 0.100000 Brand: Price: $ 7.94 |
Tilt Up Handle Rear Seal | 1 | $ 7.94 | ||
| 13 | 61476-93J00 Air Vent Seal
SKU: 61476-93J00 Weight: 0.100000 Brand: Price: $ 9.33 |
Air Vent Seal | 1 | $ 9.33 | ||
| 14-1 | 02142-0612A SCREW
SKU: 02142-0612A Weight: 0.100000 Brand: Price: $ 1.38 |
SCREW | 8 | $ 1.38 | ||
| 14-2 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 8 | $ 1.70 | DF200T: S/N 680070 Newer DF200Z: S/N 680012 Newer | |
| 15 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 16 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 17 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 18 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 19 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 20 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 21 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 23-1 | 61443-93J03 Engine Cover Starboard Stripe
SKU: 61443-93J03 Weight: 0.400000 Brand: Price: $ 79.59 |
Engine Cover Starboard Stripe | 1 | $ 79.59 | ||
| 23-2 | 61453-93J04 Engine Cover Port Stripe
SKU: 61453-93J04 Weight: 0.400000 Brand: Price: $ 149.88 |
Engine Cover Port Stripe | 1 | $ 149.88 | ||
| 24 | 61422-93J23 Front Emblem Mark (200)
SKU: 61422-93J23 Weight: 0.060000 Brand: Price: $ 16.44 |
Front Emblem Mark (200) | 1 | $ 16.44 | ||
| 25 | 61435-93J03 Rear Emblem Mark (200)
SKU: 61435-93J03 Weight: 0.060000 Brand: Price: $ 23.26 |
Rear Emblem Mark (200) | 1 | $ 23.26 | ||
| 26 | 61446-93J03 EFI Decal
SKU: 61446-93J03 Weight: 0.060000 Brand: Price: $ 9.14 |
EFI Decal | 1 | $ 9.14 | ||
| 27 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 28 | 69716-99E14 Fuel Limitation Label
SKU: 69716-99E14 Weight: 0.200000 Brand: Price: $ 3.98 |
Fuel Limitation Label | 1 | $ 3.98 | ||
| 29 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | ||
| 30 | 03541-0516B SCREW
SKU: 03541-0516B Weight: 0.100000 Brand: Price: $ 1.78 |
SCREW | 8 | $ 1.78 | Not Shown | |
| 31 | 09160-05048 Washer
SKU: 09160-05048 Weight: 0.060000 Brand: Price: $ 1.74 |
Washer | 8 | $ 1.74 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
