Suzuki DF 200 Parts Listings 2004 to S/N 20002F-11XXXX 2004 to S/N 20002Z-11XXXX

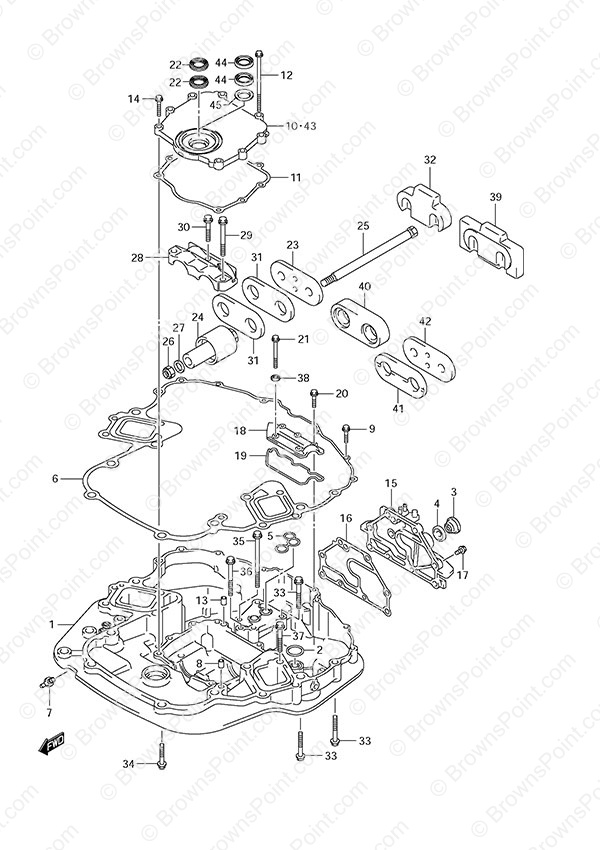

Fig. 44 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51111-93J05-0EP HOLDER,ENGINE
SKU: 51111-93J05-0EP Weight: 0.000000 Brand: Price: $ 1,183.37 |
HOLDER,ENGINE | 1 | $ 1,183.37 | ||
| 2 | 16519-93J00 Engine Holder Seal
SKU: 16519-93J00 Weight: 0.060000 Brand: Price: $ 5.02 |
Engine Holder Seal | 1 | $ 5.02 | ||
| 3 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 4 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 5 | 51116-93J01 Water Return Seal
SKU: 51116-93J01 Weight: 0.060000 Brand: Price: $ 4.50 |
Water Return Seal | 1 | $ 4.50 | ||
| 6 | 51211-93J00 Engine Holder Gasket
SKU: 51211-93J00 Weight: 2.000000 Brand: Price: $ 87.40 |
Engine Holder Gasket | 1 | $ 87.40 | ||
| 7 | 61155-93J20 Water Indicator Union
SKU: 61155-93J20 Weight: 0.125000 Brand: Price: $ 14.62 |
Water Indicator Union | 1 | $ 14.62 | ||
| 8 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 9 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 6 | $ 3.59 | ||
| 10 | 51120-93J02 Mount Oil Seal Cover Set
SKU: 51120-93J02 Weight: 1.010000 Brand: Price: $ 156.12 |
Mount Oil Seal Cover Set | 1 | $ 156.12 | Includes: Cover, 2 Oil Seals Scraper Requires Ref# 28 DF200T: S/N 010342 Older DF200Z: S/N 010067 Older | |
| 11 | 51123-93J01 Mount Oil Seal Cover Gasket
SKU: 51123-93J01 Weight: 0.080000 Brand: Price: $ 9.43 |
Mount Oil Seal Cover Gasket | 1 | $ 9.43 | ||
| 12 | 09103-08109 Bolt (8x120)
SKU: 09103-08109 Weight: 0.060000 Brand: Price: $ 3.22 |
Bolt (8x120) | 2 | $ 3.22 | ||
| 13 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 14 | 01550-0830A BOLT
SKU: 01550-0830A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 6 | $ 3.09 | ||
| 15-1 | 51140-98J00-0EP Engine Holder Cover
SKU: 51140-98J00-0EP Weight: 0.250000 Brand: Price: $ 344.10 |
Engine Holder Cover | 1 | $ 344.10 | Type: X, XX | |
| 15-2 | 51140-93J11-0EP Engine Holder Cover (L)
SKU: 51140-93J11-0EP Weight: 0.250000 Brand: Price: $ 280.73 |
Engine Holder Cover (L) | 1 | $ 280.73 | w/Transom (L) | |
| 16 | 51142-93J00 Engine Holder Cover Gasket
SKU: 51142-93J00 Weight: 0.100000 Brand: Price: $ 8.02 |
Engine Holder Cover Gasket | 1 | $ 8.02 | ||
| 17 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 8 | $ 4.66 | ||
| 18 | 51151-93J00 Engine Holder Upper Cover
SKU: 51151-93J00 Weight: 0.100000 Brand: Price: $ 51.48 |
Engine Holder Upper Cover | 1 | $ 51.48 | ||
| 19 | 51152-93J00 Engine Holder Upper Cover Seal
SKU: 51152-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
Engine Holder Upper Cover Seal | 1 | $ 7.36 | ||
| 20 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 3 | $ 3.59 | ||
| 21 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 2 | $ 3.82 | ||
| 22 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | DF200T: S/N 010342 Older DF200Z: S/N 010067 Older | |
| 23 | 54123-93J03 Upper Mount Plate
SKU: 54123-93J03 Weight: 0.250000 Brand: Price: $ 79.62 |
Upper Mount Plate | 1 | $ 79.62 | ||
| 24 | 54130-93J01 Upper Mount
SKU: 54130-93J01 Weight: 0.500000 Brand: Price: $ 92.71 |
Upper Mount | 2 | $ 92.71 | ||
| 25 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 26 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 27 | 09160-15051 Upper Mount Bolt Washer
SKU: 09160-15051 Weight: 0.100000 Brand: Price: $ 1.96 |
Upper Mount Bolt Washer | 2 | $ 1.96 | ||
| 28 | 54137-93J02 Upper Mount Cover
SKU: 54137-93J02 Weight: 1.000000 Brand: Price: $ 82.13 |
Upper Mount Cover | 1 | $ 82.13 | ||
| 29 | 09116-10135 Bolt (10x95)
SKU: 09116-10135 Weight: 0.200000 Brand: Price: $ 8.85 |
Bolt (10x95) | 2 | $ 8.85 | ||
| 30 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 1 | $ 6.90 | ||
| 31 | 54121-98J01 Upper Thrust Stopper
SKU: 54121-98J01 Weight: 0.125000 Brand: Price: $ 14.38 |
Upper Thrust Stopper | 2 | $ 14.38 | ||
| 32 | 54125-93J00 Upper Thrust Reverse Mount
SKU: 54125-93J00 Weight: 0.100000 Brand: Price: $ 27.21 |
Upper Thrust Reverse Mount | 1 | $ 27.21 | ||
| 33 | 09116-10137 Bolt (10x70)
SKU: 09116-10137 Weight: 0.120000 Brand: Price: $ 8.02 |
Bolt (10x70) | 6 | $ 8.02 | ||
| 34 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 35 | 09116-10146 Bolt (10x195)
SKU: 09116-10146 Weight: 0.200000 Brand: Price: $ 29.18 |
Bolt (10x195) | 2 | $ 29.18 | ||
| 36 | 09116-10134 Bolt (10x115)
SKU: 09116-10134 Weight: 0.200000 Brand: Price: $ 10.42 |
Bolt (10x115) | 1 | $ 10.42 | ||
| 37 | 09116-08126 Bolt (8x65)
SKU: 09116-08126 Weight: 0.100000 Brand: Price: $ 4.34 |
Bolt (8x65) | 4 | $ 4.34 | ||
| 38 | 09169-08038 Washer (8.3x15x3)
SKU: 09169-08038 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (8.3x15x3) | 2 | $ 3.79 | ||
| 43 | 51120-93J02 Mount Oil Seal Cover Set
SKU: 51120-93J02 Weight: 1.010000 Brand: Price: $ 156.12 |
Mount Oil Seal Cover Set | 1 | $ 156.12 | DF200T: S/N 010343 Newer DF200Z: S/N 010068 Newer | |
| 44 | 51124-93J01 Oil Seal
SKU: 51124-93J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Oil Seal | 2 | $ 7.75 | DF200T: S/N 010343 Newer DF200Z: S/N 010068 Newer | |
| 45 | 51125-93J00 Scrapper
SKU: 51125-93J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Scrapper | 1 | $ 11.18 | DF200T: S/N 010343 Newer DF200Z: S/N 010068 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
